Features

Efficient woofer, designed to be used in systems that demand high performance in its low mid bass range, providing a clean sound with a lot of sound pressure.

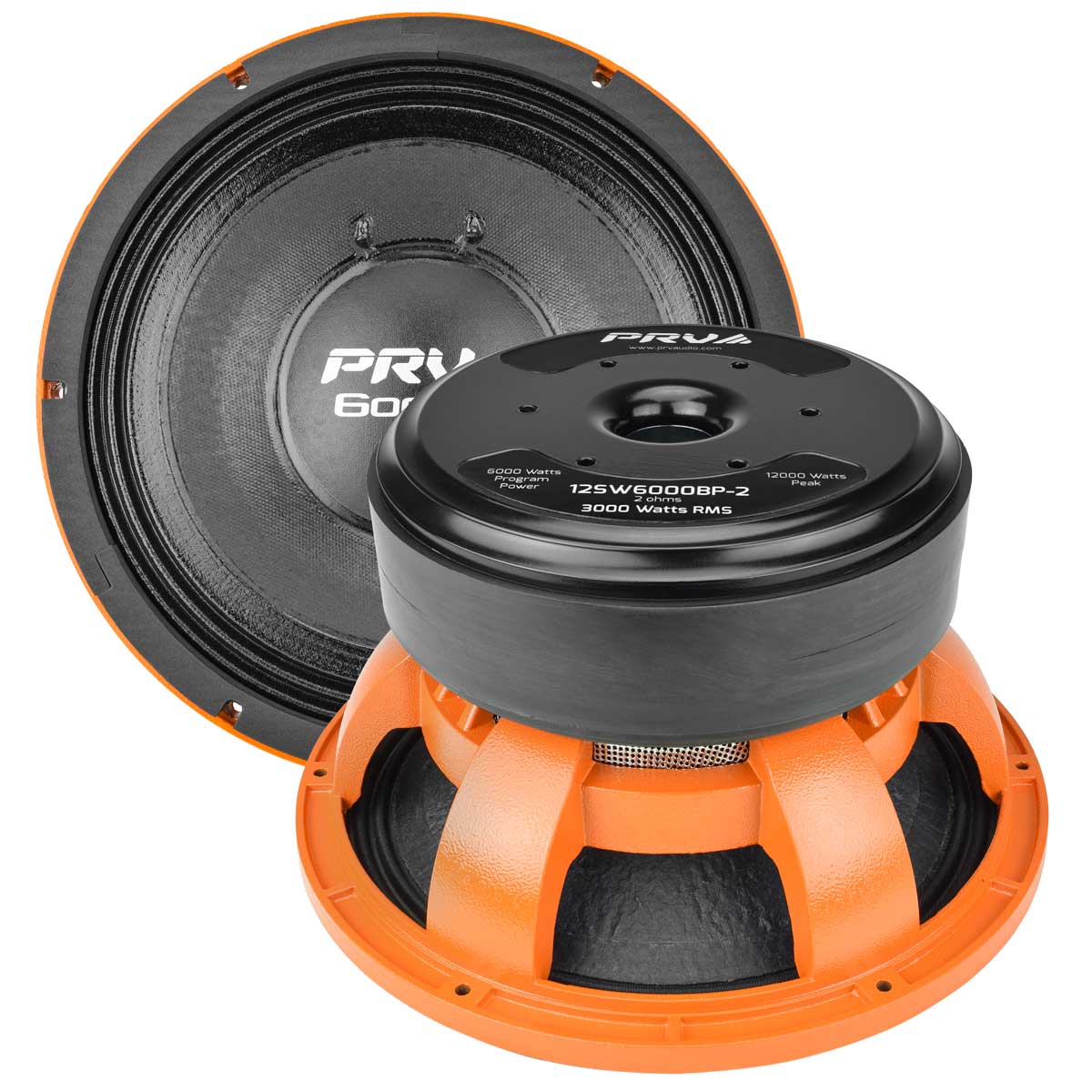

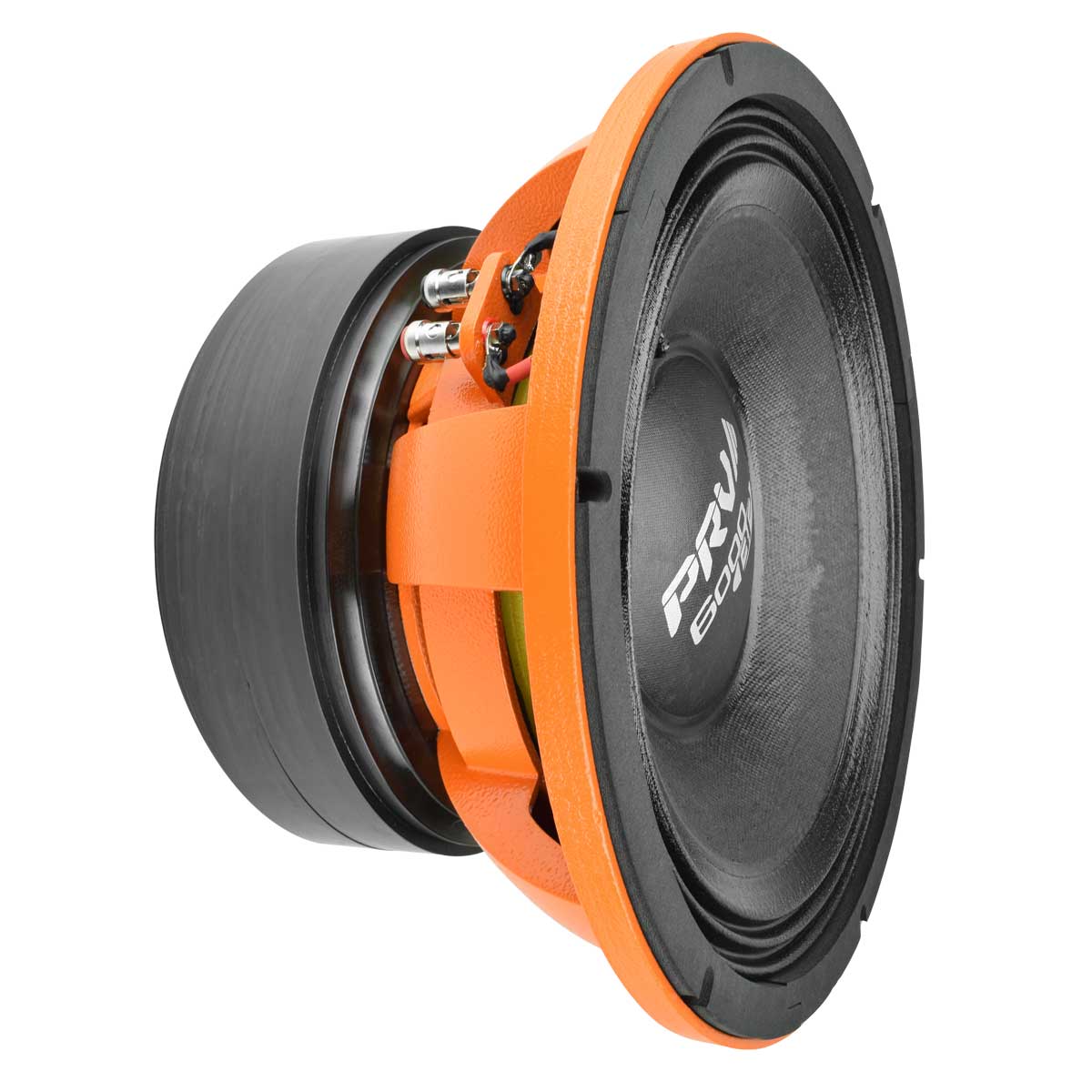

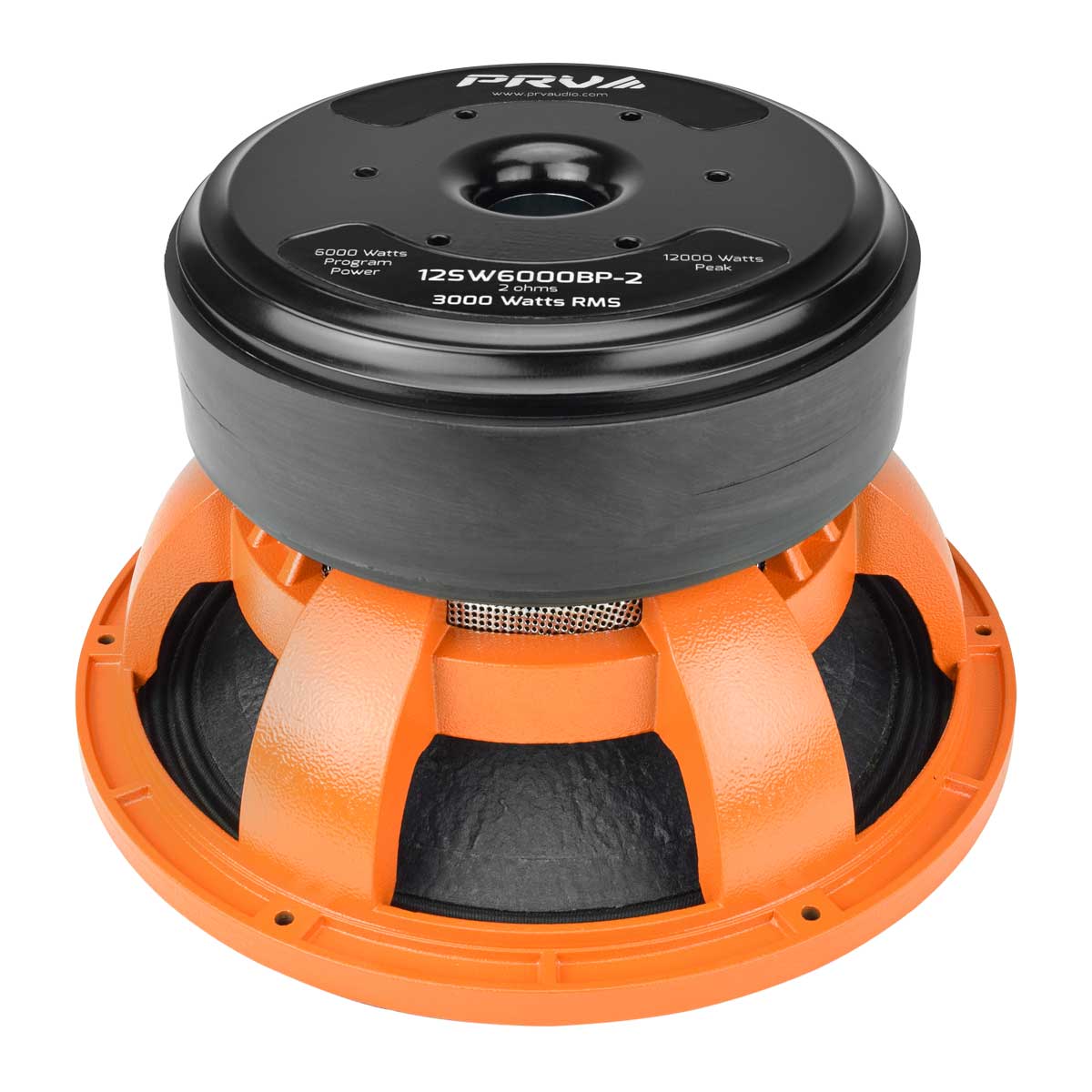

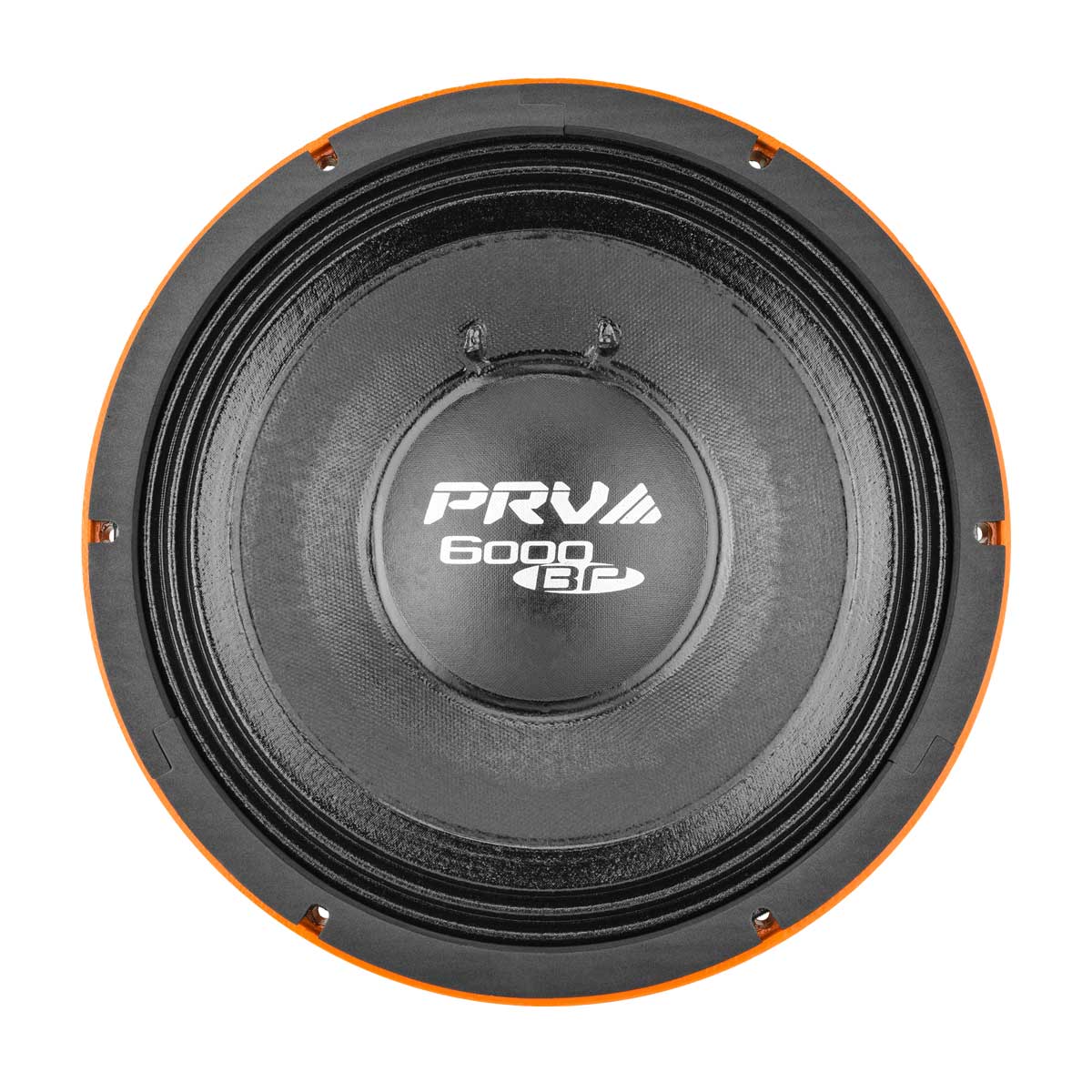

12SW6000BP-2 is not your normal subwoofer, this is designed to produce low mid frequency in ported boxes in open air, such as stunt wall!

The BP series stand for Brazilian Punch, a style of sound system that originated from the Brazil which is called Pancado which in Portuguese means Strong Beat

Building a stunt wall with 8 or more of this speaker with the recommended box and crossover filter will sure make you the talk of the car show! The high level of sound pressure will be felt from feet away.

GENERAL SPECIFICATIONS

Nominal Diameter	12? (305 mm)
Nominal impedance	2 Ohms
Rated AES Power Handling (RMS)	3000 Watts
Program Power	6000 Watts
Sensitivity 2.83V at 1m	92.5 dB
Recommended High Pass Crossover* *For Full Power Handling	70 Hz* BT24 *12db Per Octave Crossover
Recommended Low Pass Crossover* *For Full Power Handling	300 Hz* BT24 *12db Per Octave Crossover
Frequency Response at -10dB	75 2500 Hz
Voice Coil Diameter	4? (65 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	28.0 mm
Former Material	Kapton
Magnetic Gap Depth	13.0 mm
Frame Material	Die Cast Aluminum

---

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	9.2 l
Excursion (mathematical)***	Xmax	10.75 mm
Free Air Resonance	Fs	81.79 Hz
Mechanical Factor	Qms	5.44
Electrical Factor	Qes	0.51
Total Factor	Qts	0.47
Cone Area	Sd	531 cm
Mechanical Mass	Mms	161.9 g
Bl Factor	Bl	15.57 Tm
Dc Resistance	Re	1.5 Ohms
Inductance	Le	0.38 mH at 1 kHz
Mechanical Mass Without Air	Mmd	155.0 g
Mechanical Compliance	Cms	0.023 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

---

EXTRA INFO

Overall Diameter	12.56 (319 mm)
Front Mount Baffle Cutout	11.25 (...
