Description
xFeatures
Built for high efficiency and extreme output capability, the PRV Audio 12MR2000X v2 12 professional midrange driver is perfect for filling in the midbass and vocal range in the largest SPL systems. This powerful driver features a thoroughly vented 4 diameter voice coil on a heat resistant Kapton former to handle 2,000 watts RMS with minimal power compression.
X Series is dedicated to delivering extreme midrange performance, capable of high output and high power handling, while delivering a smooth vocal response.
- 2,000 Watts RMS with 100 dB efficiency for amazing output capability
- 6.60 mm xmax allows excellent control to deliver high impact midbass
- Detailed vocal reproduction, high fidelity response
- Excellent performance in compact enclosures
- Extensive venting keeps the 4 voice coil cool improving reliability when pushed to the limit
Extreme car audio enthusiasts will find PRV Audios 12MR2000X to be the perfect 12? midrange door speaker. It is capable of handling up to 2000 watts RMS power (with a suggested 150 Hz, 18 dB/octave high pass filter in place tuned with PRV DSP)!
The large magnet assembly is attached to a sturdy, reinforced cast-aluminum frame.
A Qts of 0.28 and a double roll suspension design allow for a strong response from 400Hz to 300Hz, even at high excursion controlling well its natural paper cone at its 6.60 mm Xmax. Its composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound.
The high power handling, combined with 100 dB sensitivity, allows this mid to produce incredible dynamics and low distortion when pushed to incredible output levels.

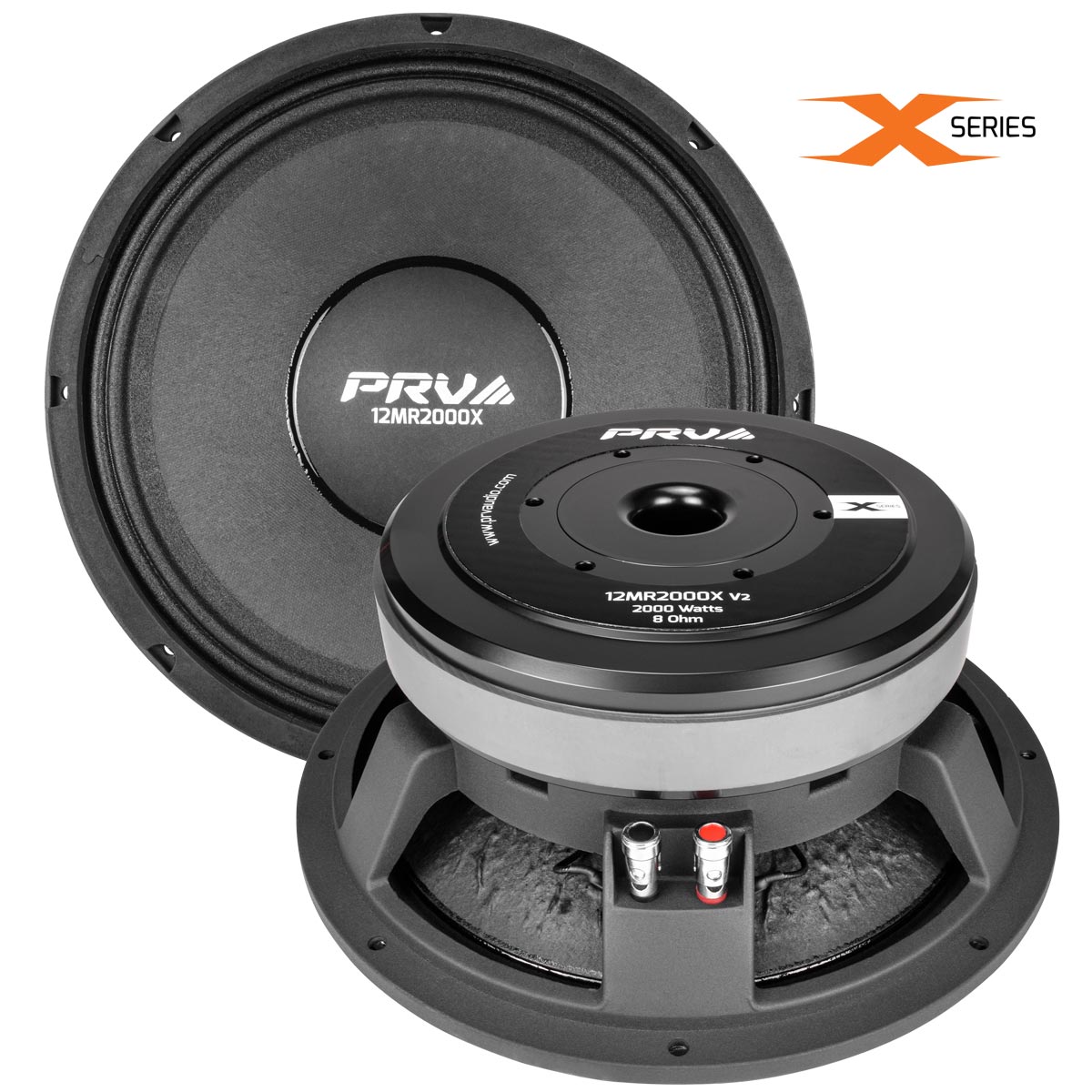

PRV 12? Midrange Speaker 12MR2000X v2 2000 Watts / 8 Ohm High Power PRO Audio Loudspeaker
GENERAL SPECIFICATIONS
| Nominal Diameter | 12? (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 1000 Watts |
| Continuous Program Power (RMS) | 2000 Watts |
| Max Peak Power | 4000 Watts |
| Sensitivity 2.83V at 1m | 100 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 160 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 100 5,300 Hz |
| Voice Coil Diameter | 4? (100 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 18.2 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10.00 mm |
| Frame Material | Die cast aluminum |
