The PRV Audio 12MR2000 midbass woofer offers outstanding durability and is our most powerful midrange driver. This woofer is great for high power 2 or 3-way systems and produces excellent vocal support for stage monitors.
Highlights

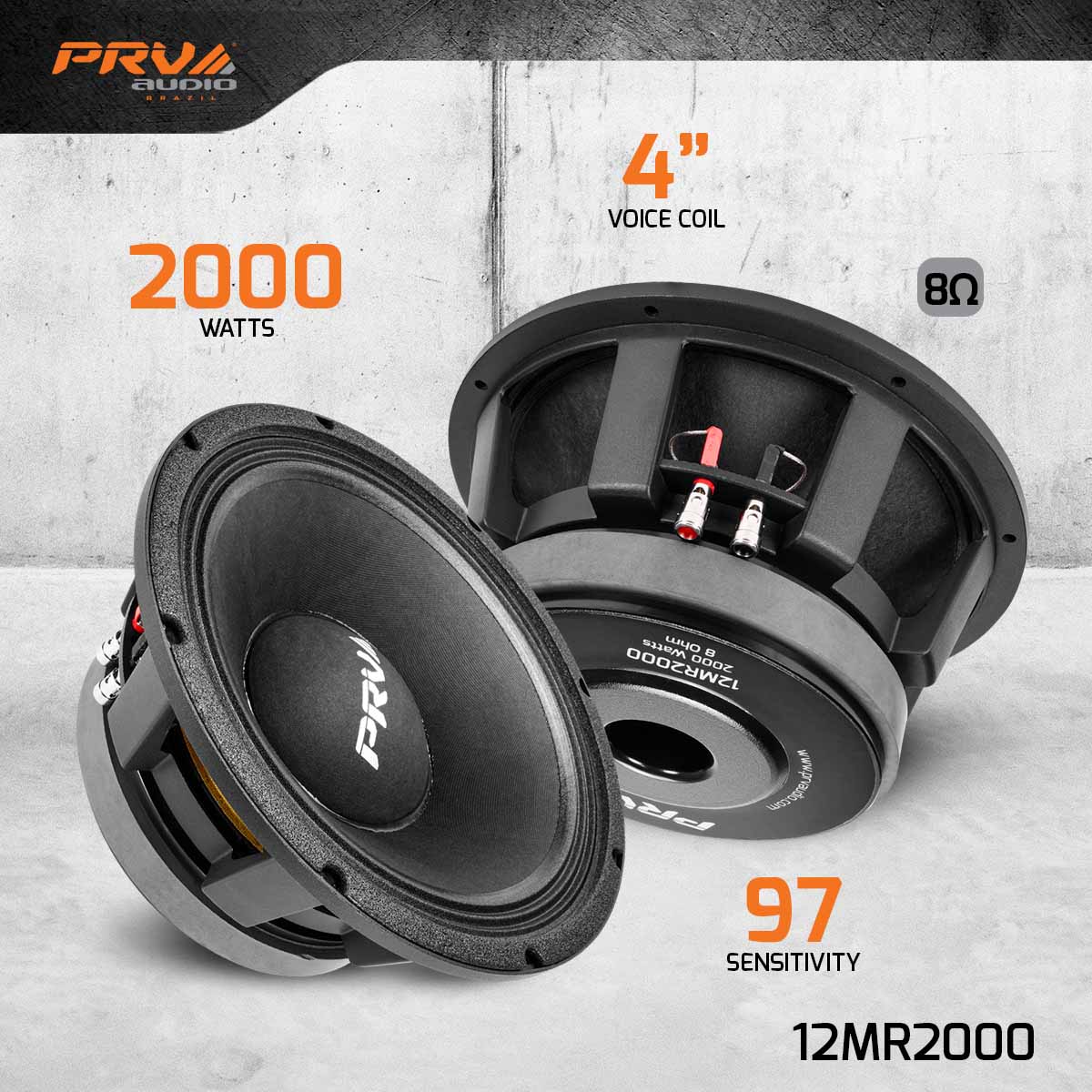

Nominal Impedance: 8 Ohm
Nominal Power Handling: 1000 Watts
Continuous Program Power (RMS): 2000 Watts
Sensitivity (1W/1m): 97 dB
Voice Coil Diameter: 4?

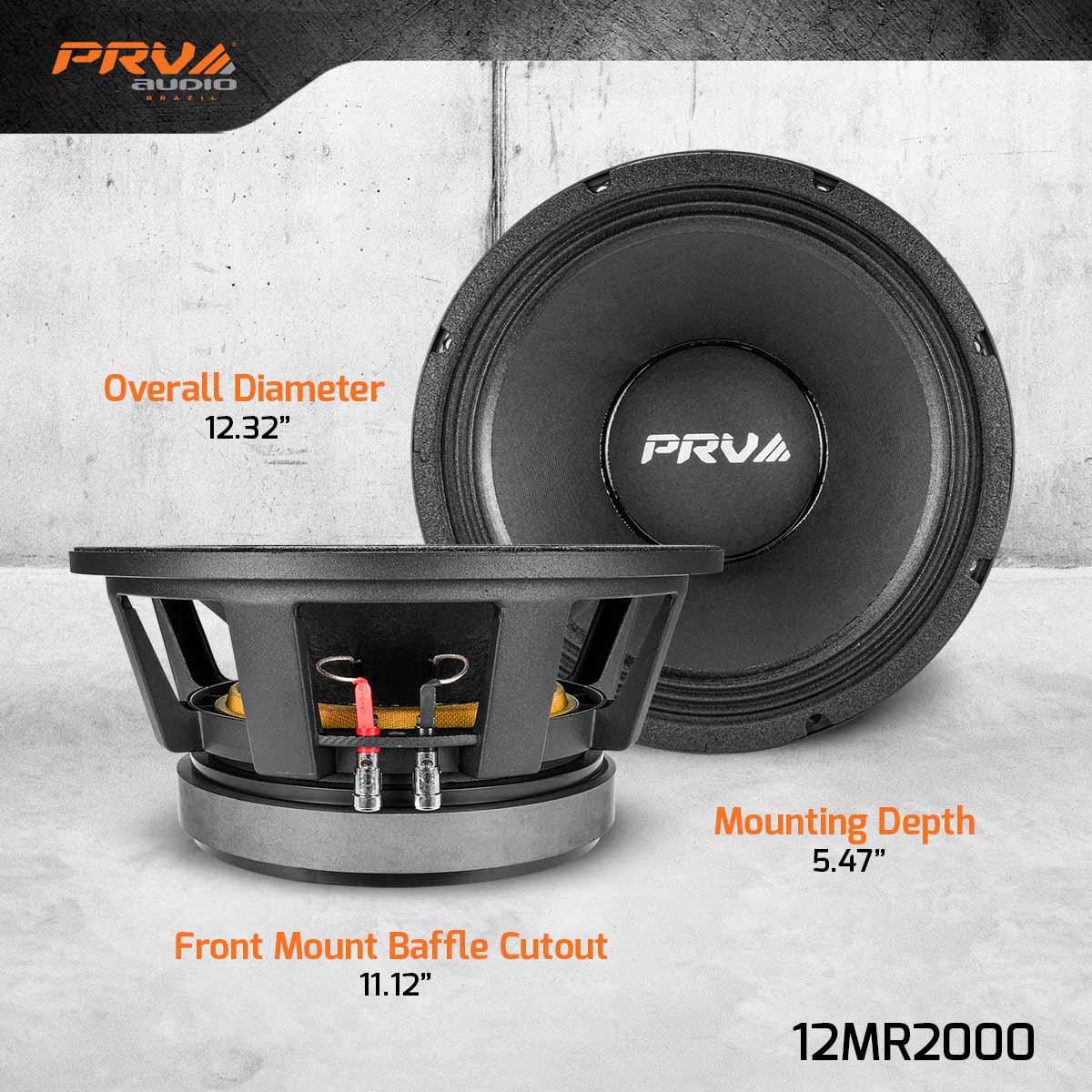

The 12MR2000 offers a large 4 CCAW voice coil that will results in very high efficiency while providing smooth and accurate bass response. The extra thick and stiff, yet light weight cone provides an excellent curve response linear through 5.000 Hz and makes the 12MR2000 a very good solution for high quality two or three way systems and low mounting depth makes it perfect for stage monitors. It has also become a highly used woofer for extreme car audio installs.

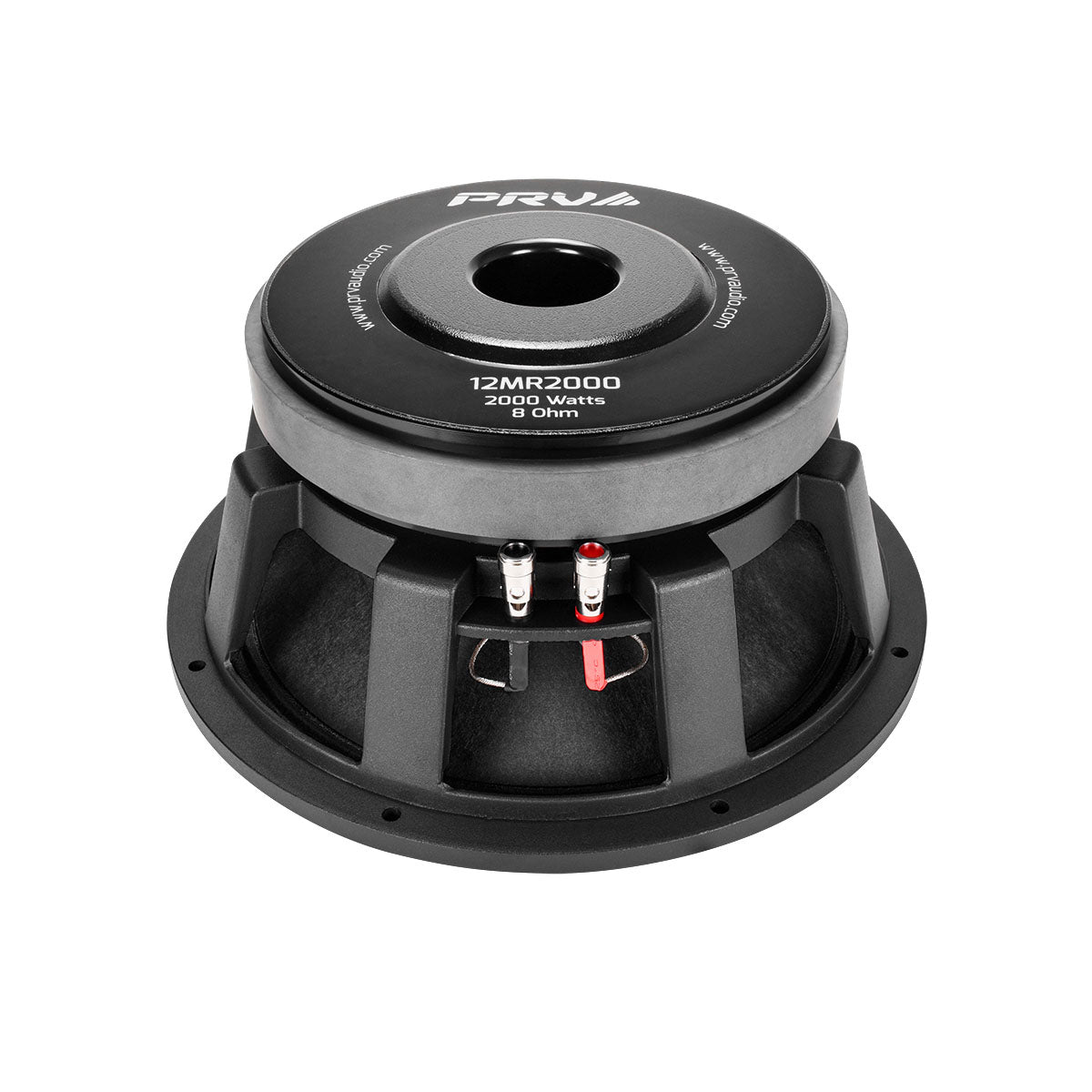

The magnet assembly attached to a sturdy reinforced cast aluminum frame completes the 12MR2000 to ensure a solid support structure, for long lasting play in most any environment.
GENERAL SPECIFICATIONS
Nominal Diameter
12? (305 mm)
Nominal impedance
8 Ohm
Nominal Power Handling*
1000 Watts
Continuous Program Power (RMS)**
2000 Watts
Max Peak Power***
4000 Watts
Sensitivity 2.83V at 1m
97 dB
Recommended Hi Pass Crossover For Full Power Handling
145 Hz 12db Per Octave Crossover
Frequency Response
72 5,000 Hz
Voice Coil Diameter
4? (101 mm)
Voice Coil Wire
CCAW
Voice Coil Winding Depth
17.0 mm
Former Material
Aluminum
Magnetic Gap Depth
7.5 mm
Frame Material
Die Cast Aluminum
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
