Description
xFeatures
The 12MB2000FT midbass from PRV Audios Forte Series offers outstanding durability with high output. This driver will deliver a strong vocal response making it great for high-power three-way systems.
Built for loud, clear vocal performance in tight, compact spaces, with a shallow design that gives only 4.92 of mounting depth powered by ferrite magnet featuring a sensitivity of 98 dB (2.83V/1m) with a large 4 CCAW voice coil.
Highlights
- 4? CCAW voice coil wound on glass fiber former for hi-temp performance, 8 ohms
- Shallow Design, easy to fit on tight spaces.
- 2,000 watts continuous program power rating makes high acoustical output
- Excellent performance on 3-way systems
- High efficiency, you do not need a lot of power to achieve extreme SPL levels

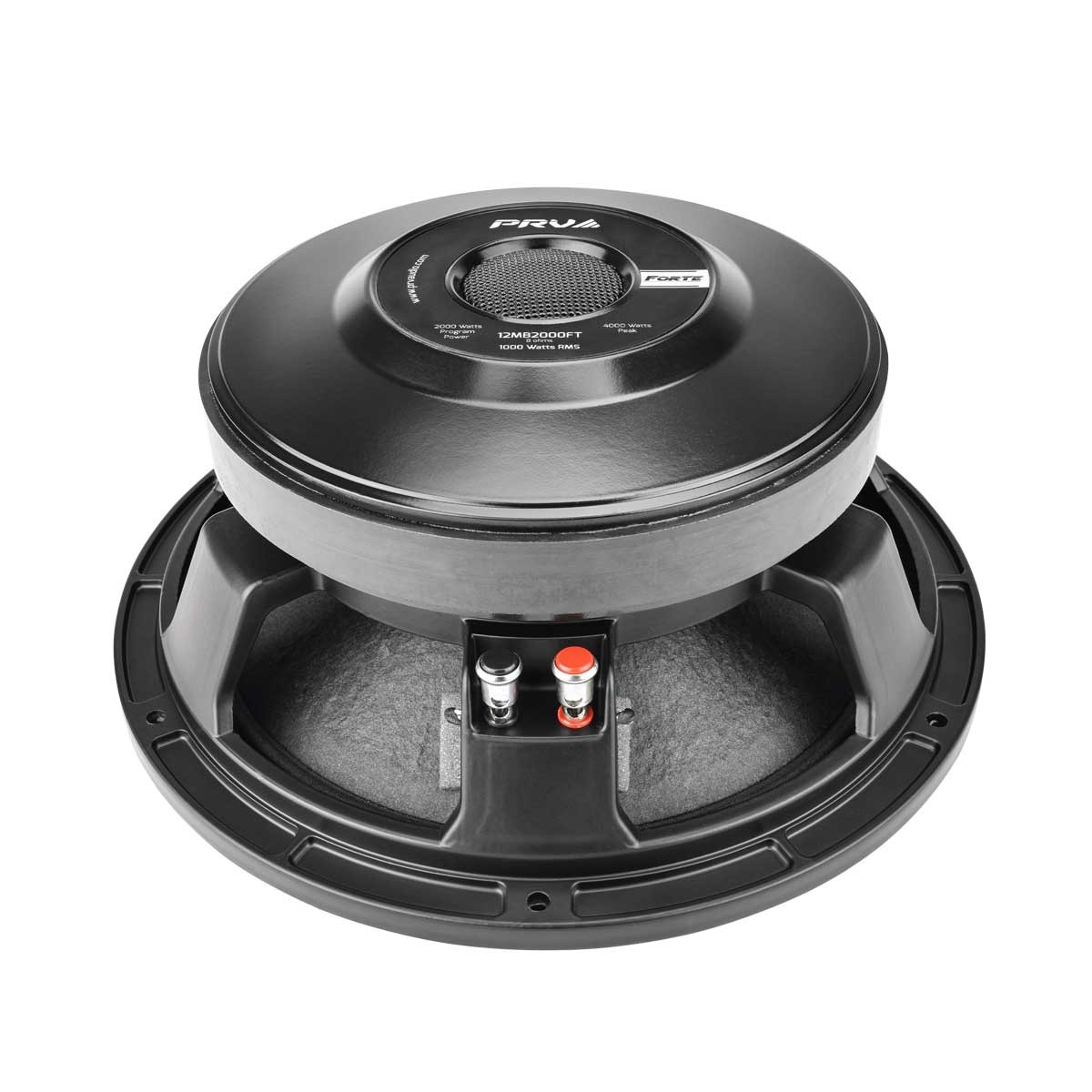

The cast aluminum frame uses 6 wide spokes to firmly support this massive motor assembly, designed to handle the use and abuse of the pro sound environment, the frame includes force cooling system openings which allows airflow to cool the voice coil, allowing this driver to handle up to 1000 watts RMS without issue.
Featuring an extra thick and stiff, yet light weight cone provides an excellent curve response linear through 5.000kHz to achieve the best possible linearity within the middle frequency range.
Supporting the cone is an inverted double roll cloth surround, designed for high excursion applications allowing it to handle short bursts of excessive power without damage.
To drive the large 4 voice coil, a large ferrite magnet is used with a very precise machined top and bottom plate. Its voice coil is designed to have minimum weight as possible for incredibly quick transient response on its mid bass.
Recommended (HPF) High Pass Crossover
Up to 1000 Watts RMS at 120 Hz LR12
( 12db Per Octave Linkwitz-Riley Crossover )
Recommended (HPF) High Pass Crossover
Over 1000 Watts RMSat120 Hz LR18
( 12db Per Octave Linkwitz-Riley Crossover )
Designed for compact enclosures, to give tight and fast midbass response above 100Hz.
Great addition to your 3 way system ( Bass, 12MB2000FT and High frequency Driver )
Recommended boxes:
Horn box size: 0.50 ft3 Port size: 12.5 x 0.50 x 11 deep
Ported box size: 0.65 ft3 Port size: 12 x 1.75 x 4 deep
GENERAL SPECIFICATIONS
| Nominal Diameter | 12? (305 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 1000 Watts |
| Program Power | 2000 Watts |
| Sensitivity 2.83V at 1m | 98 dB |
|
Recommended High Pass Crossover** **For Full Power Handling |
120 Hz** LR12 **12db Per Octave Crossover |
| Frequency Response at -10dB | 80 5000 Hz |
| Voice Coil Diameter | 4? (100 mm) |
| Voice Coil Wire<... |
