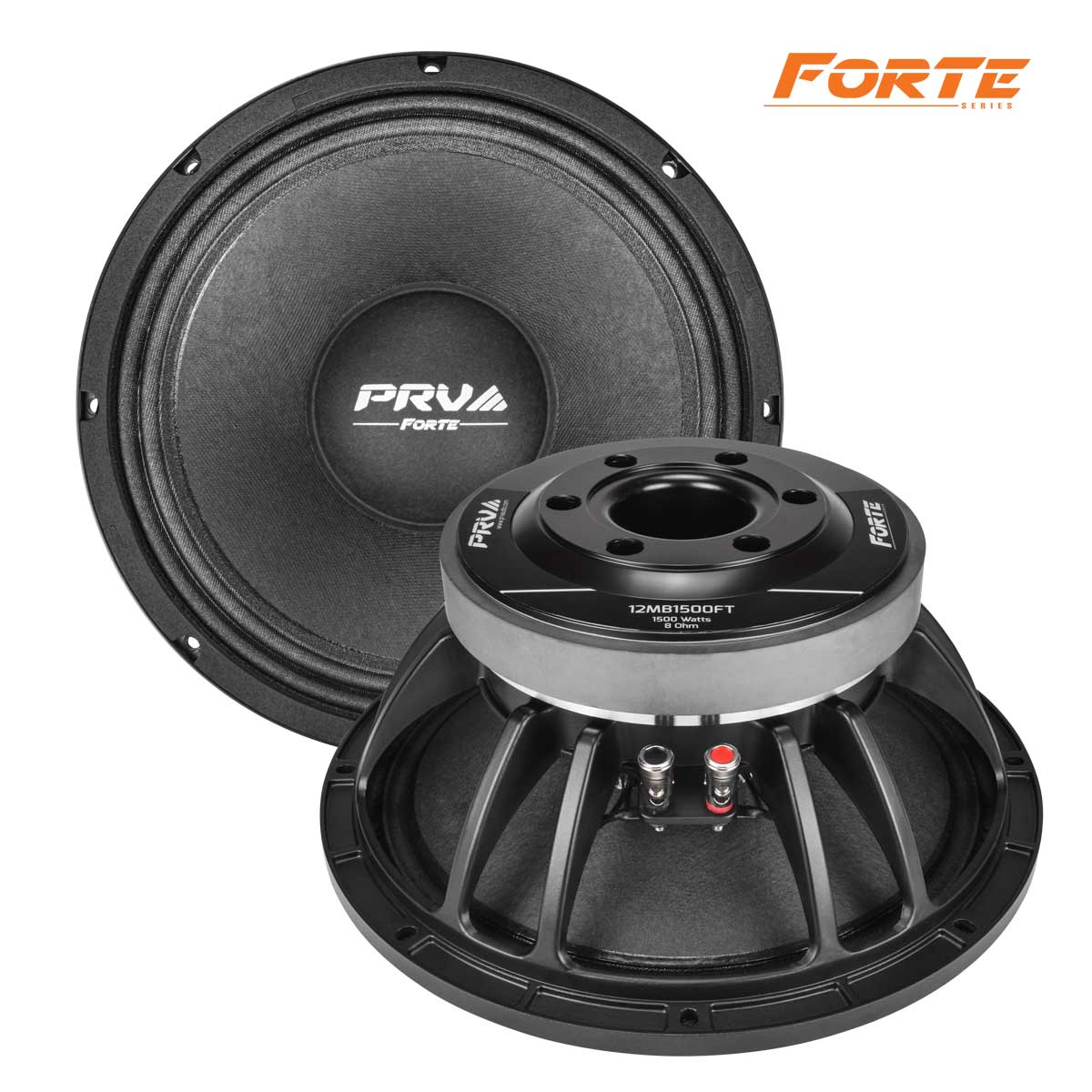

The PRV 12MB1500FT has an excellent linear response, well controlled down to 75 Hz, which makes it a great option for 2-way cabinet systems that require strong BL magnet force and midbass punch. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.

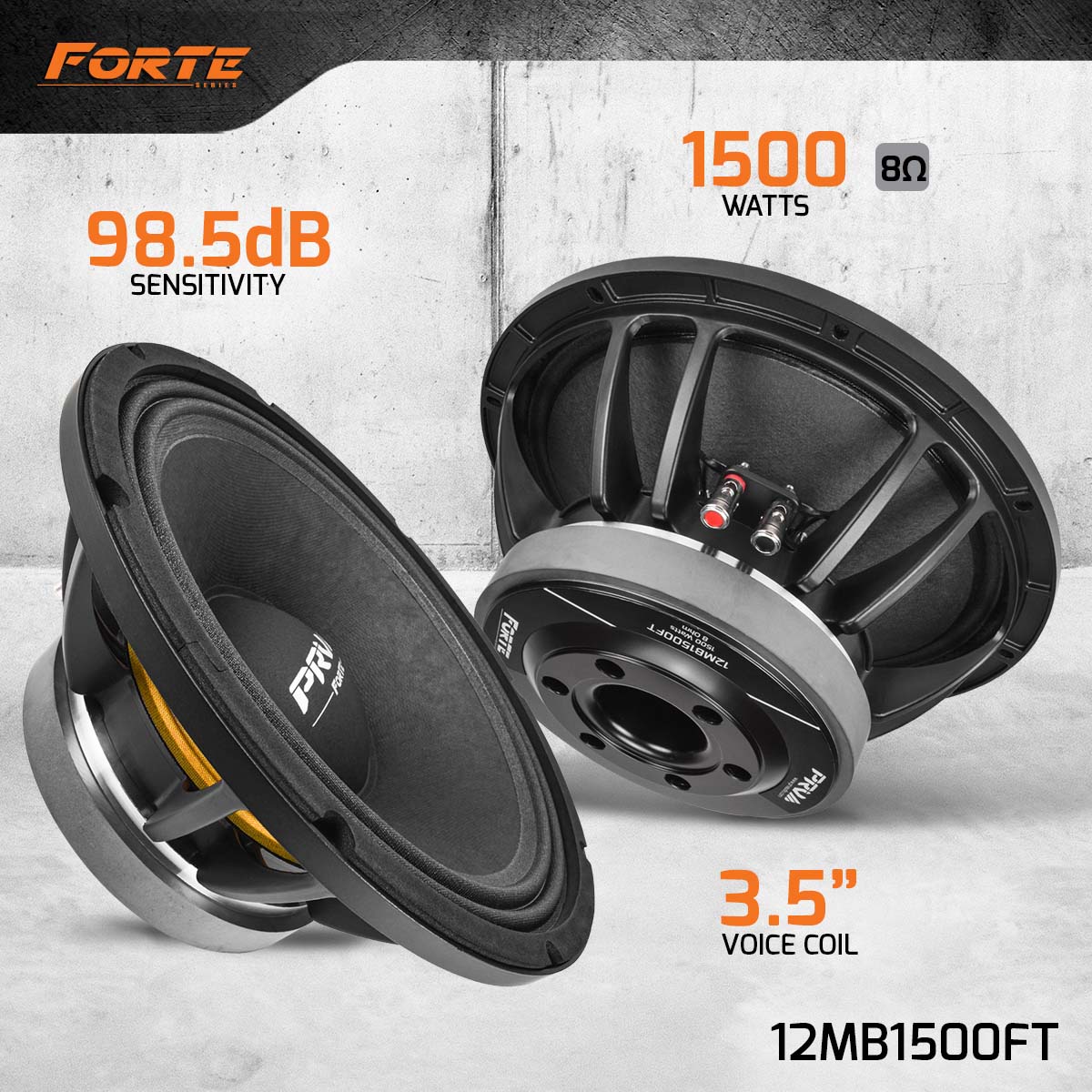

Highlights
- High BL factor and Xmax for outstanding Low output
- Rated at 1500 watts RMS Continuous Program Power
- 98.5 dB sensitivity, which makes it capable of generating a lot of output!
- 3.5? Inside/Out CCAW voice coil wound on fiberglass former for hi-temp performance, 8 Ohm
Supporting the cone is a heavy duty spider M roll treated cloth surround, designed for high excursion applications to handle short bursts of excessive power without damage. A double silicon spider system ensures excellent control during large excursions of 1.50? peak-to-peak excursion before damage.

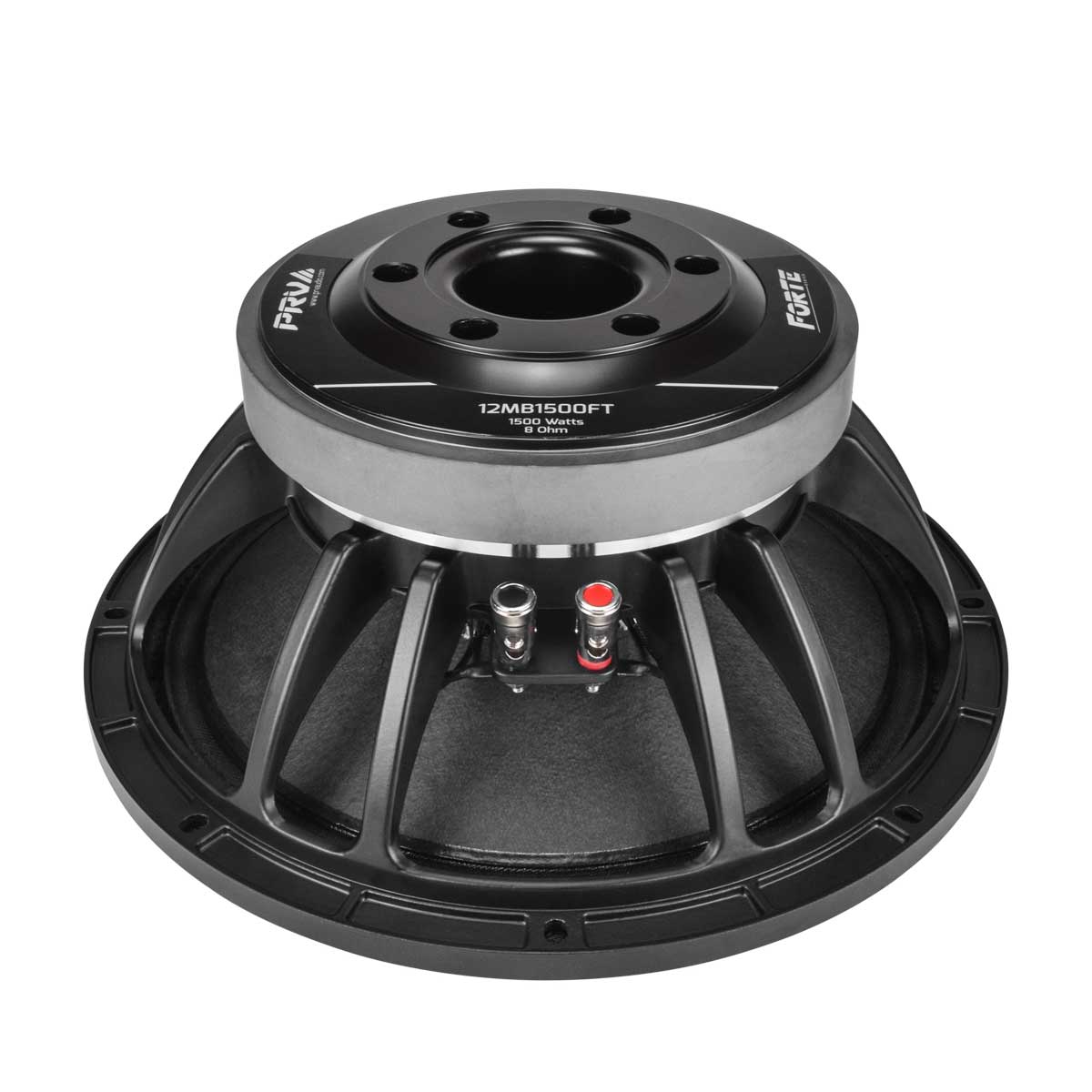

A very strong ferrite magnetic structure of 25 mm guarantees dynamism and precision and a unique 3,5 inside/outside voice coil design provides a very high-power handling of 1500 Watts RMS of musical power, thanks to its dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression.
GENERAL SPECIFICATIONS

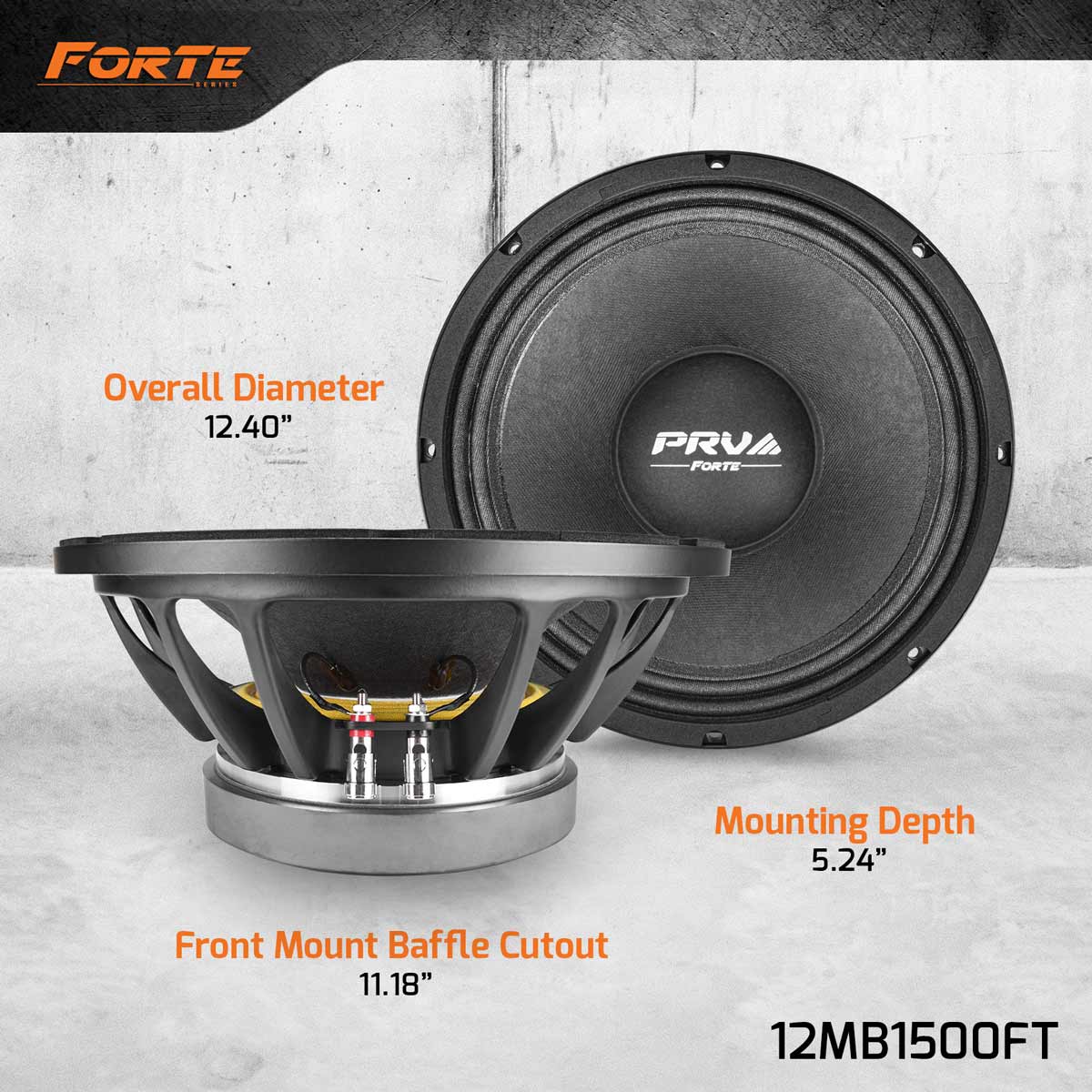

| Nominal Diameter | 12? (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 750 Watts |
| Continuous Program Power (RMS)** | 1500 Watts |
| Max Peak Power*** | 3000 Watts |
| Sensitivity 2.83V at 1m | 98.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
90 Hz 12db Per Octave Crossover |
| Frequency Response | 75 5,000 Hz |
| Voice Coil Diameter | 3.5? (89 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 17.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 62.37 l |
| Excursion (mathematical)*** | Xmax | 6.00 mm |
