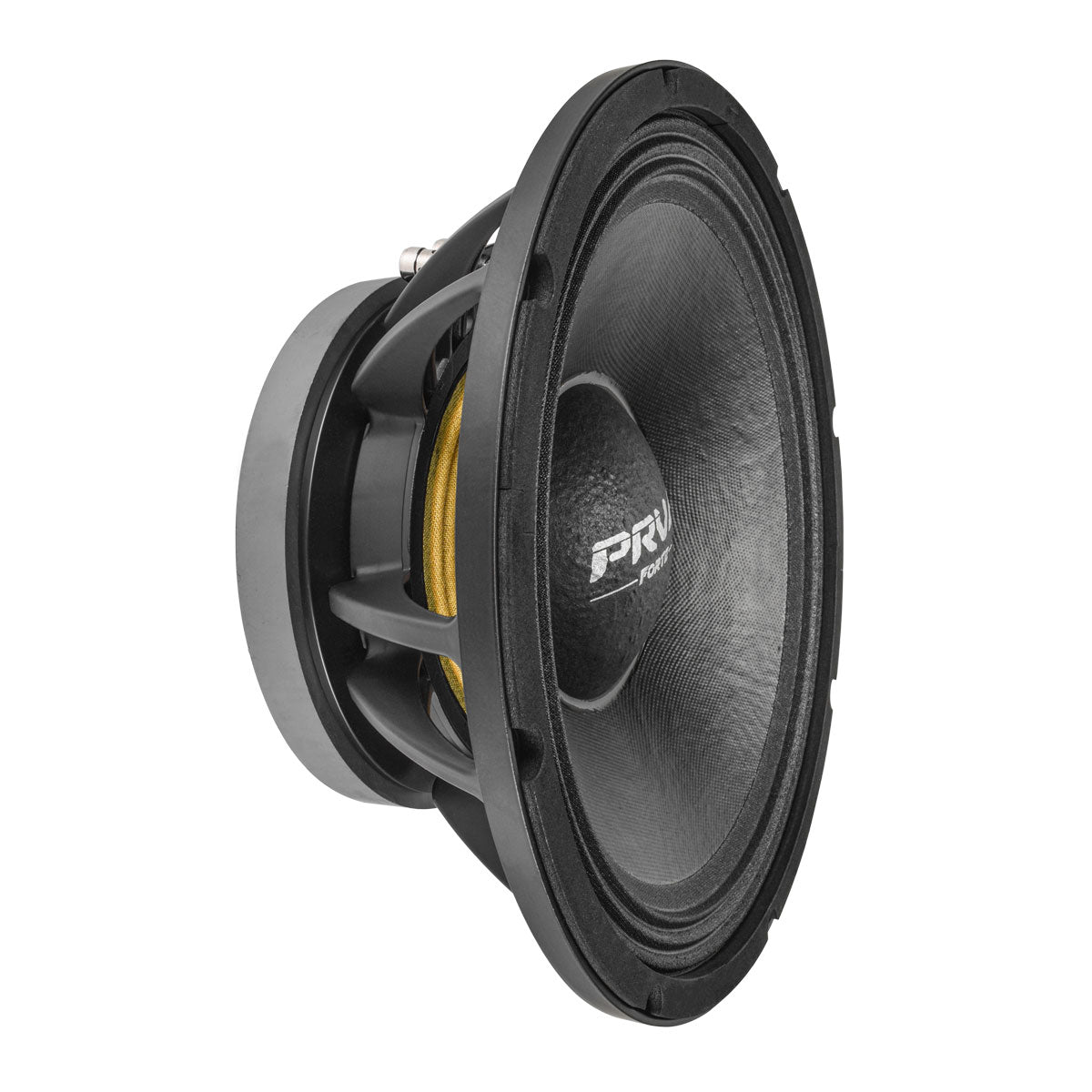

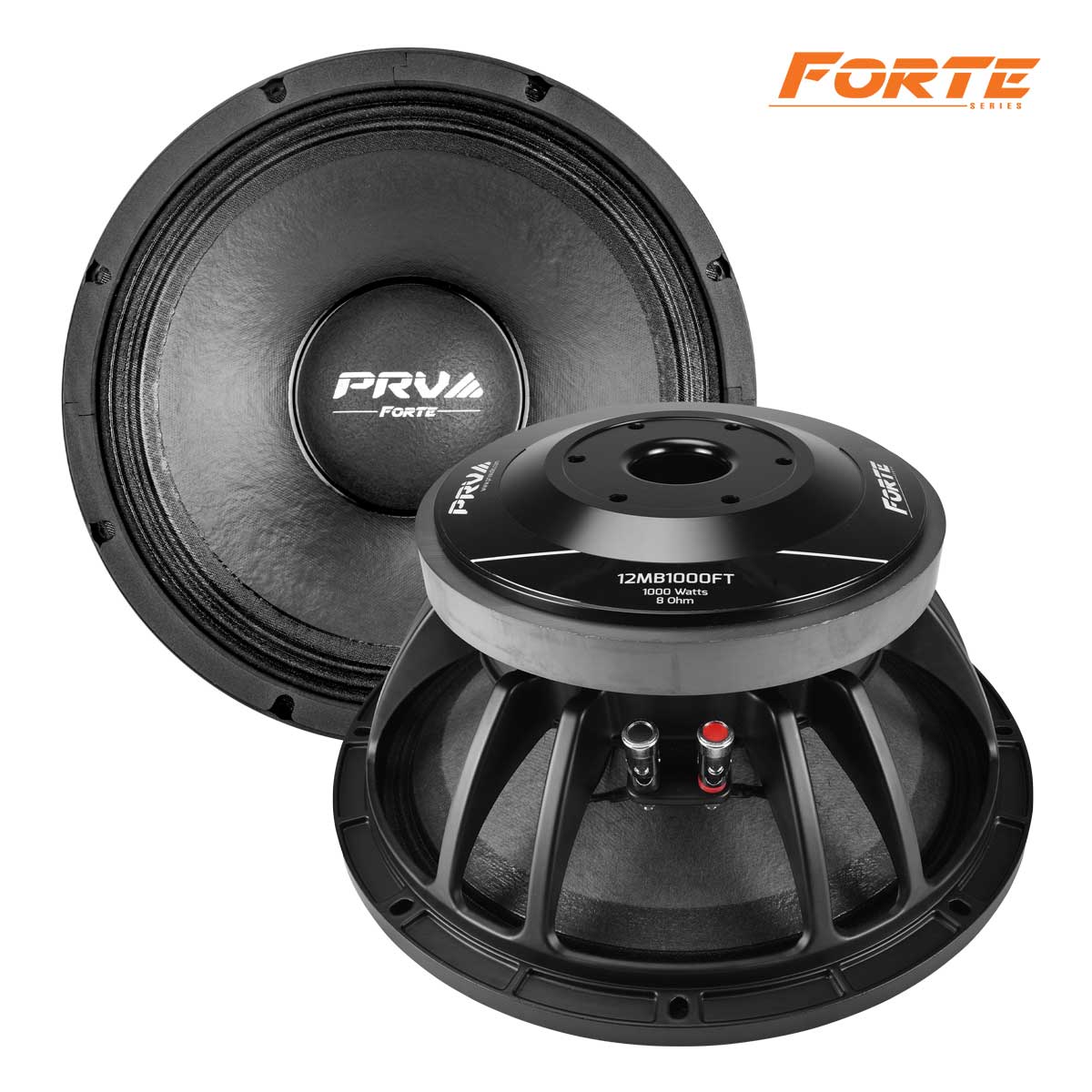

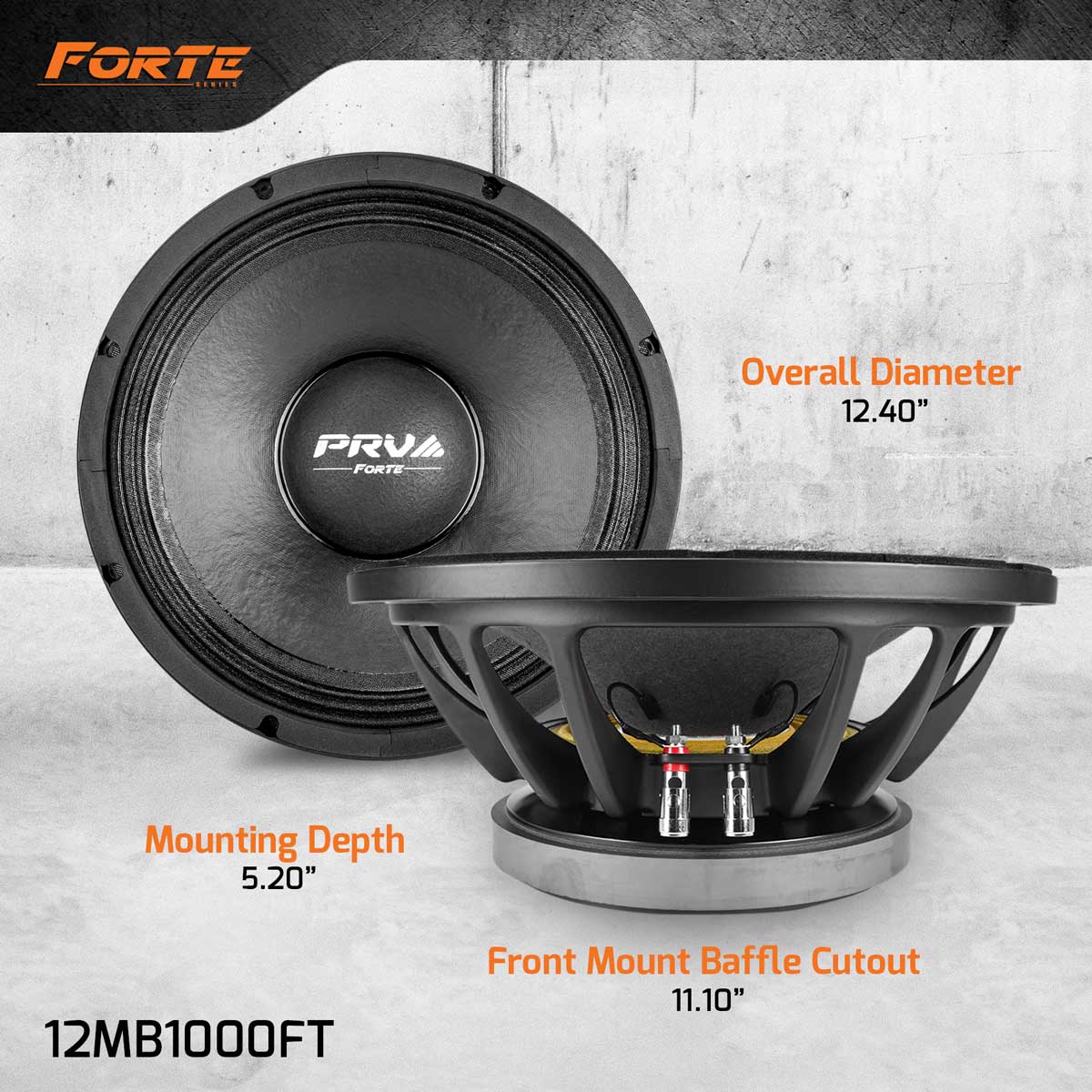

PRV Audio 12MB1000FT 12" Midbass Loudspeaker

Highlights

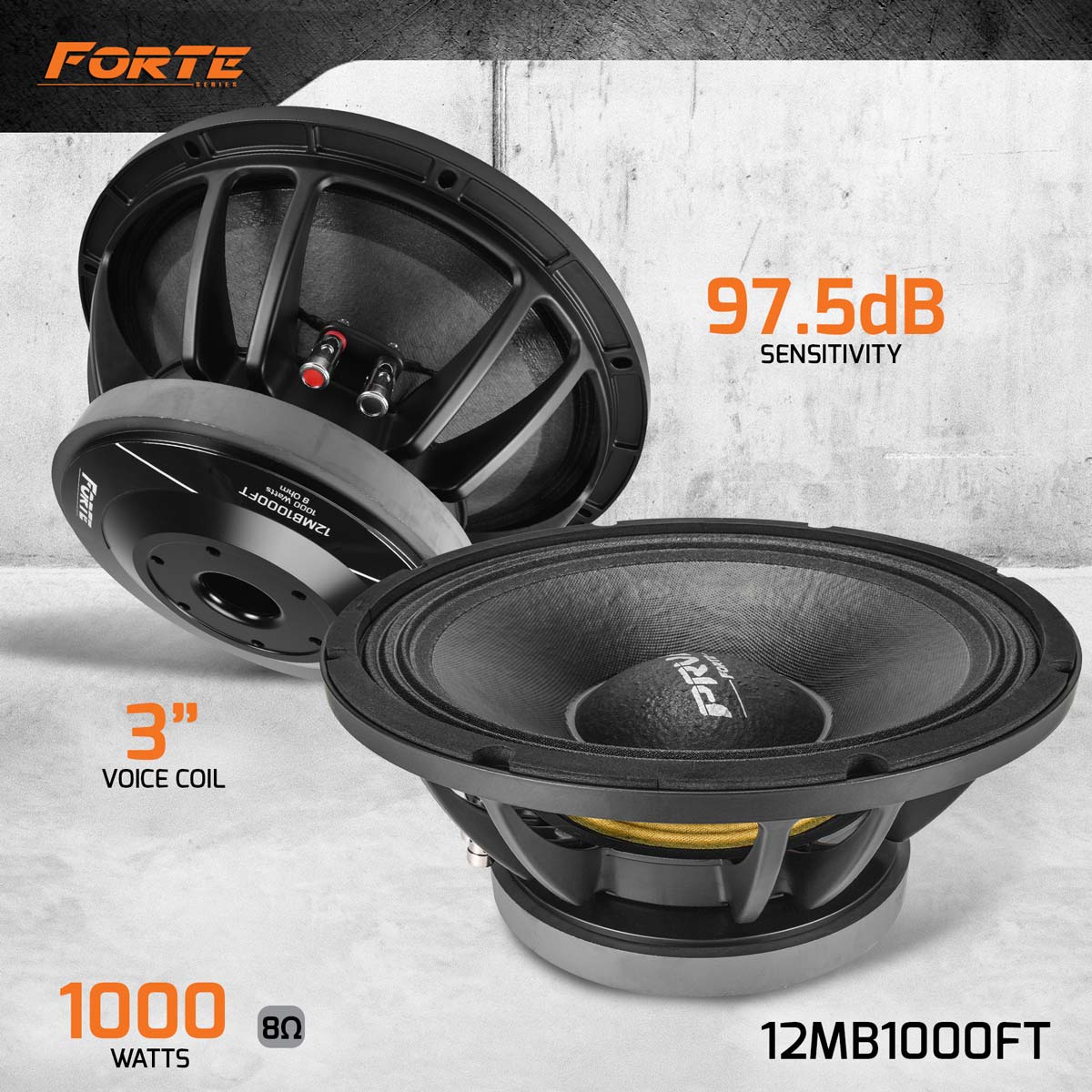

• 3? Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
• Ventilated voice coil gap reduces power compression
• High Xmax for more Midbass output
• 1,000 watts continuous program power rating makes high acoustical output
• Excellent performance in 2-way or 3-way systems
• Weather-resistant paper cone and dust cap
• Also Available at 4 Ohm

A rigid cast aluminum frame with narrow spokes to minimize reflections back into the cone. In addition, the frame includes force cooling system openings which allows airflow to cool the voice coil.

To drive the voice coil, a large ferrite magnet with a very precise machined top and bottom plate has been used. The additional dual forced vent in the back plate of the coil allows this driver to handle up to 1000 watts RMS without issue.

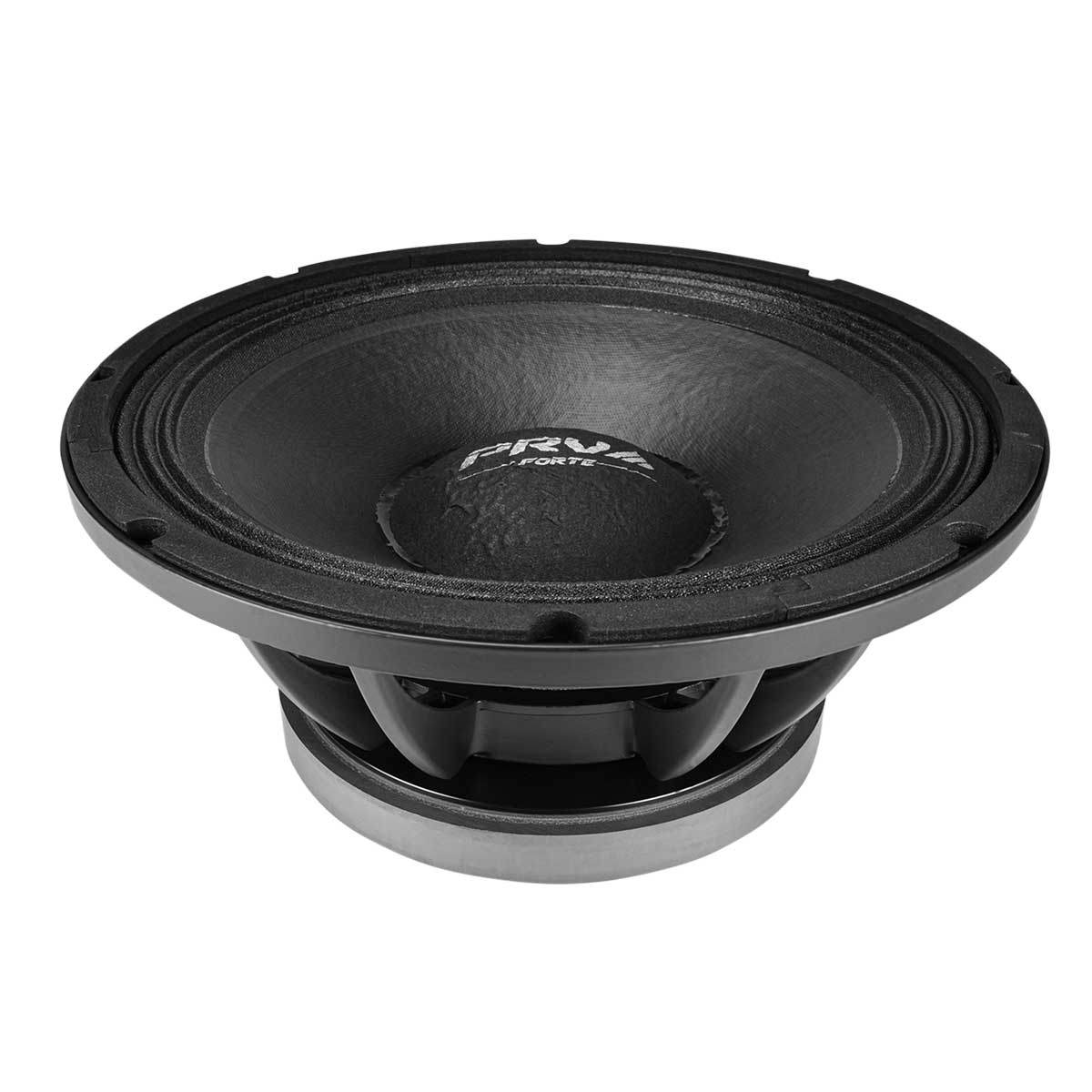

Features a special high strength pulp composition paper cone designed to achieve the best possible linearity within the middle frequency range, which, together with a protective cone treatment dedicated to enhancing the dampening properties of the moving assembly, considerably improves its smooth frequency response.

The voice coil is wound on a 3? glass fiber with aluminum wire, keeping weight to a minimum for an incredibly quick transient response. Engineered with 19 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

^{*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with...}
