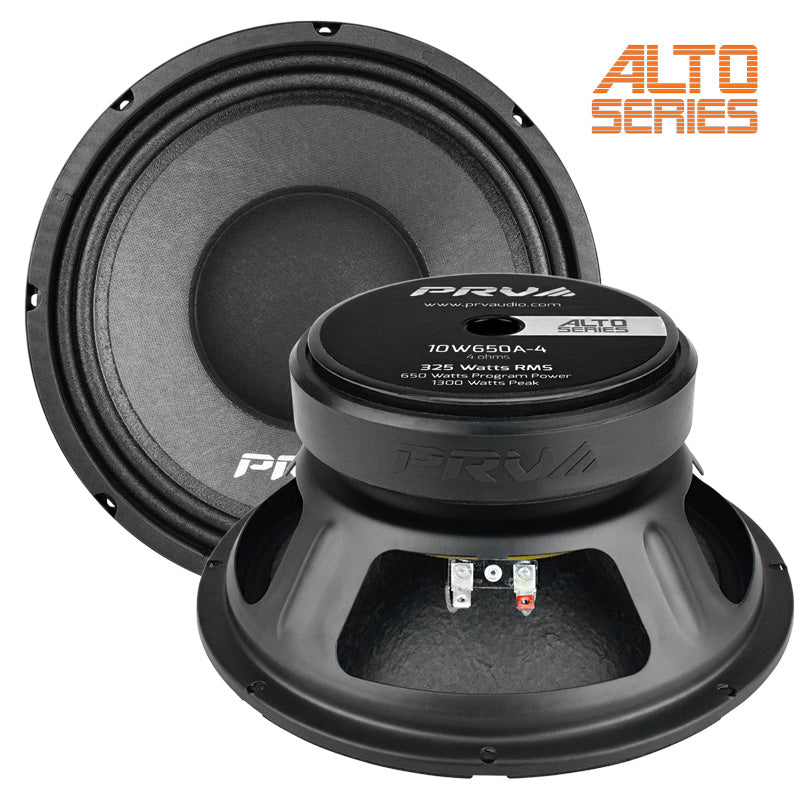

High fidelity meets high output PRV Audio ALTO Series Woofers. Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. Thats why PRV Audios Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic.
To get the right sound, a special composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound. A unique, woven-cloth dustcap helps to achieve high sensitivity by reducing moving mass, while helping to cool the voice coil.
Youll find that Alto Series woofers work remarkably well in vented and sealed cabinets, as woofers in two-way speakers or midrange speakers in three-way systems, and even shine when used as bass guitar and guitar speakers. Upgrade to the PRV Audio ALTO Series Youll thank us later!
Nominal Diameter | 10? (254 mm) |
Nominal impedance | 4 Ohms |
Rated AES Power Handling (RMS) | 325 Watts |
Program Power | 650 Watts |
Sensitivity 2.00V at 1m | 97 dB |
Recommended Hi Pass Crossover** **For Full Power Handling |
150 Hz** **12db Per Octave Crossover |
Frequency Response at -10dB | 75 5,500 Hz |
Voice Coil Diameter | 2.5? (65.5 mm) |
Voice Coil Wire | CCAW |
Voice Coil Winding Depth | 13.0 mm |
Former Material | Kapton |
Magnetic Gap Depth | 10.00 mm |
Frame Material | Stamped Steel |
Equivalent Volume | Vas | 41.23 l |
Excursion (mathematical)*** | Xmax | 4.00 mm |
Free Air Resonance | Fs | 66.88 Hz |
Mechanical Factor | Qms | 16.07 |
Electrical Factor | Qes | 0.40 |
Total Factor | Qts | 0.39 |
Cone Area | Sd | 415 cm |
Mechanical Mass | Mms | 33.09 g |
Bl Factor | Bl | 11.23 Tm |
Dc Resistance | Re | 3.7 Ohms |
Inductance | Le | 0.57 mH at 1 kHz |
Mechanical Mass Without Air | Mmd | 28.30 g |
Mechanical Compliance | Cms | 0.171 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
Overall Diameter |
