Description
xFeatures

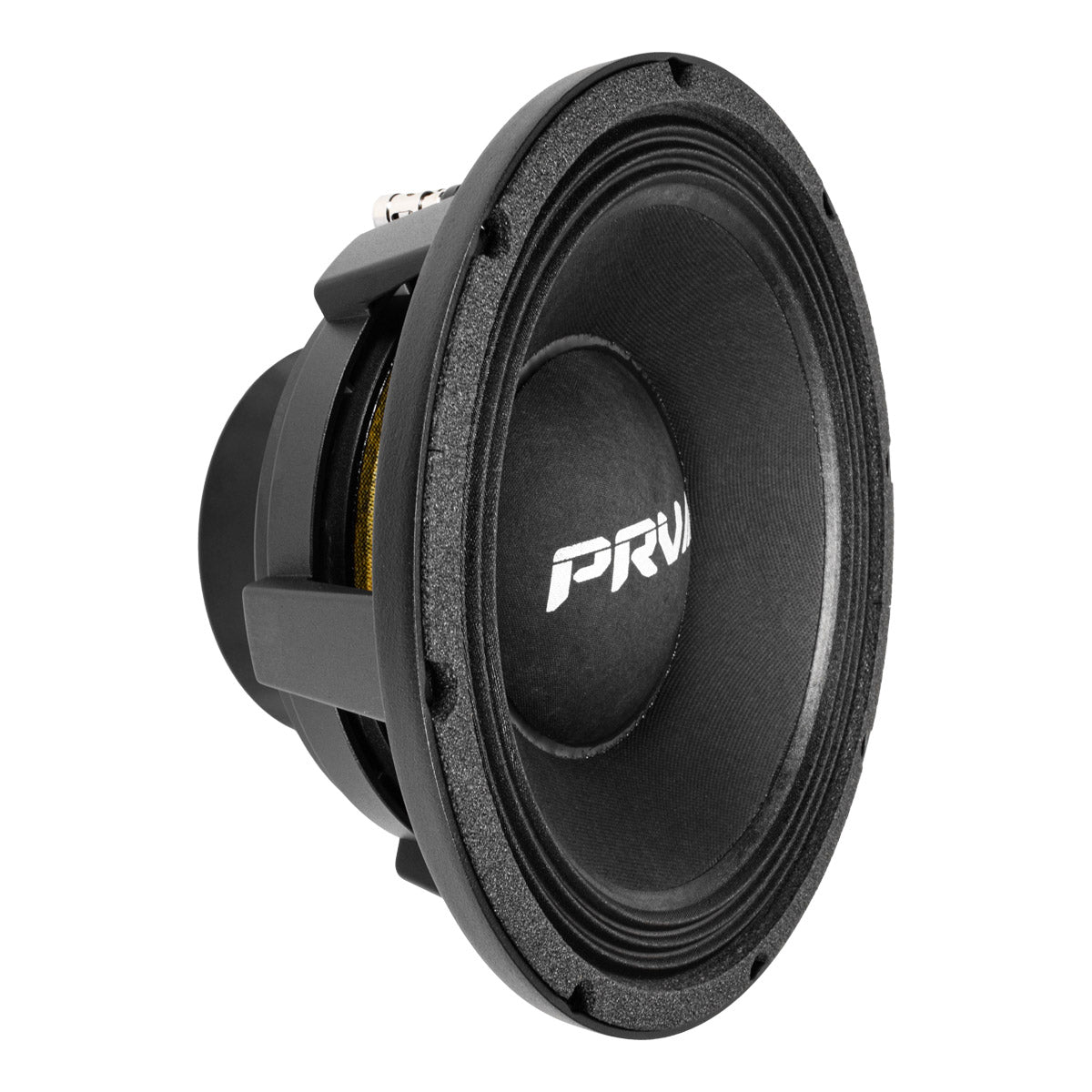

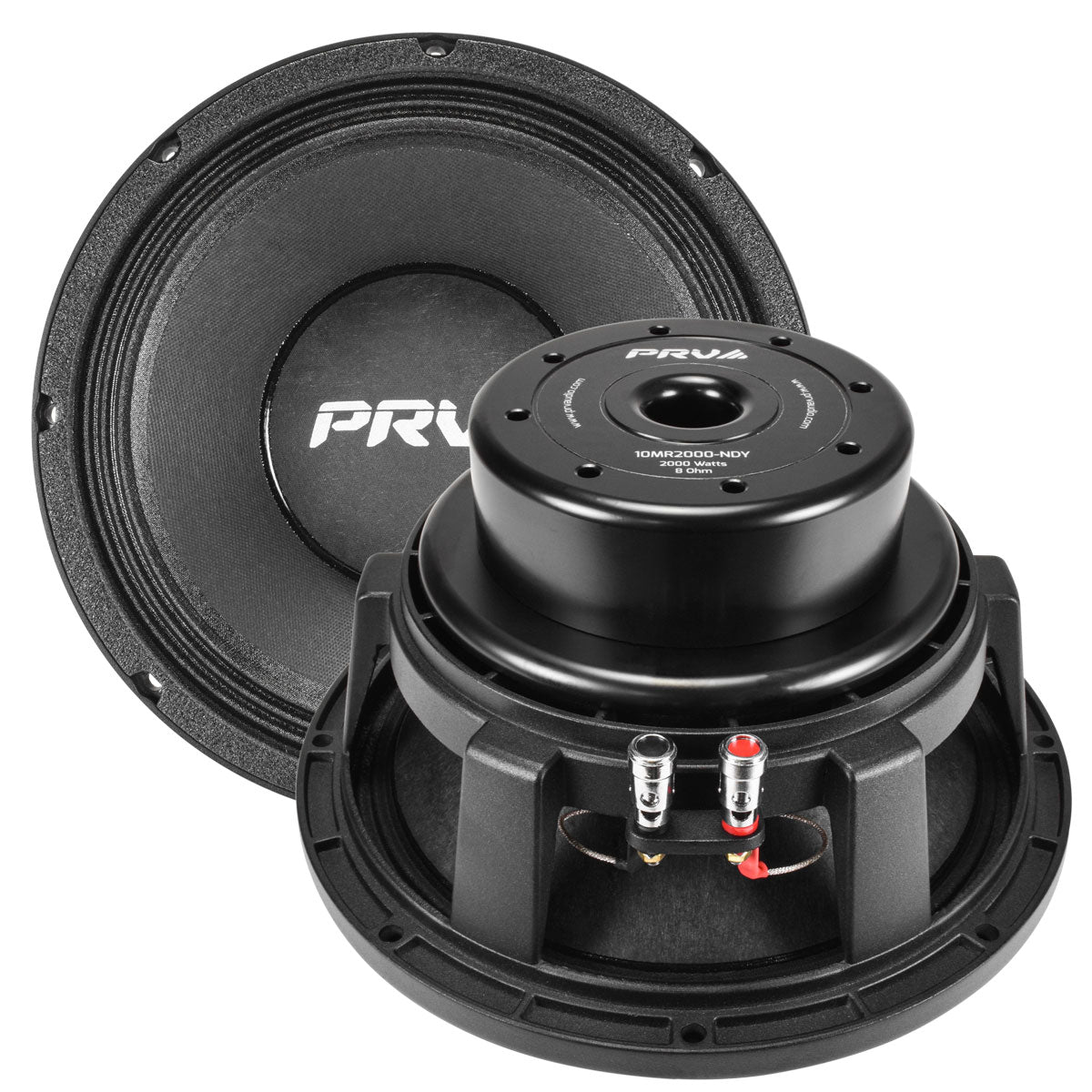

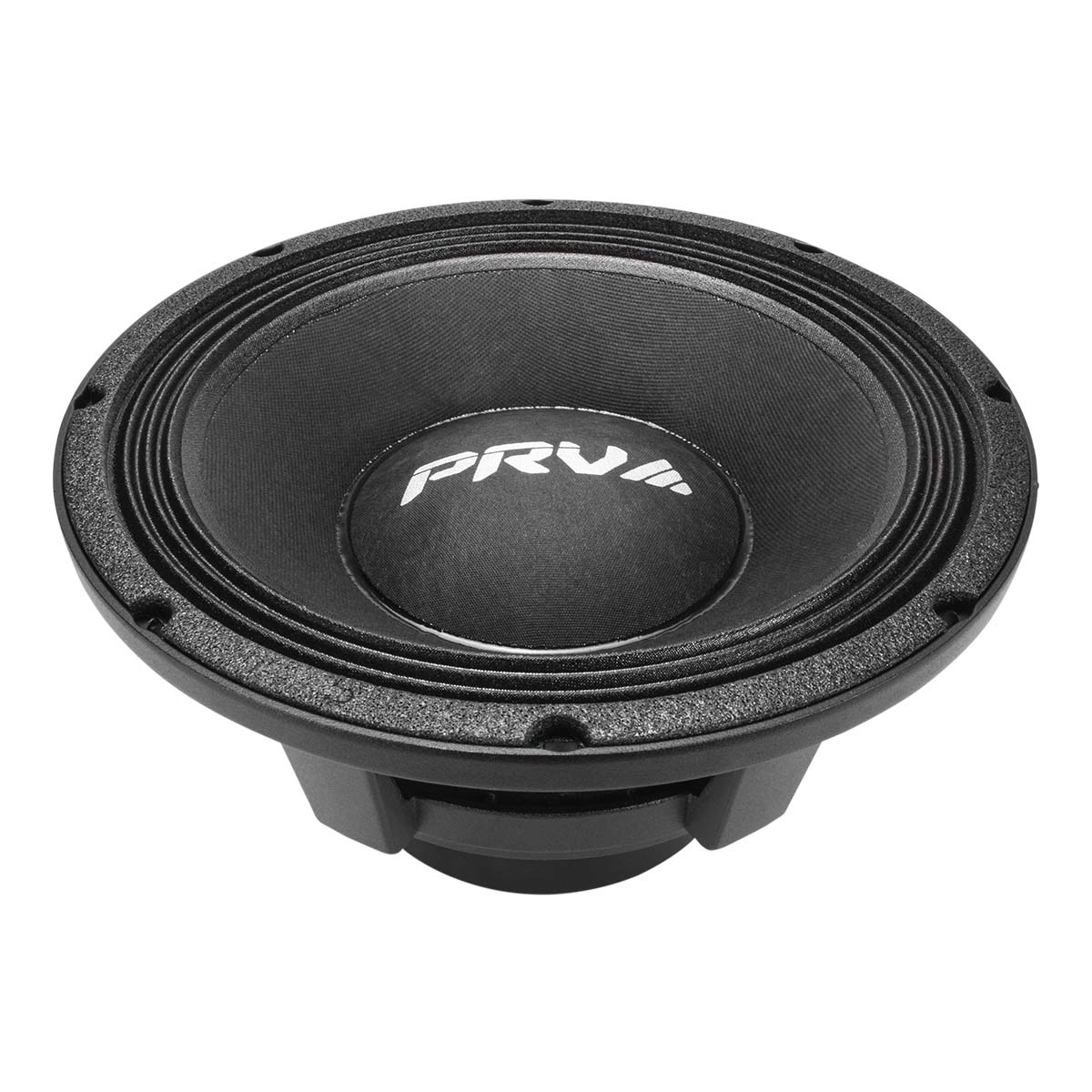

The PRV Audio 10MR2000-NDY midrange offers outstanding durability and is our most powerful midrange loudspeaker with a 4 inch voice coil. This mid is an ideal option for high power 2 or 3-way systems. It produces excellent vocal support for stage monitors, custom car doors and stuntwalls.
A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this mid in any system, even when you are short on space.
Highlights
- 4? Inside/Out copper clad voice coil wound on fiberglass former for high-temp performance 8 Ohm
- One of the most outstanding pro audio midrange for high SPL systems, this 2000 Watts 10? midrange is one beast of a speaker!
- Excellent performance in compact enclosures and custom car door panels.
- During hard play, the large 4? voice coil provides very high efficiency while providing smooth and accurate midbass response.
All in all, the PRV Audio 10MR2000-NDY midrange is a great choice for anyone looking for a reliable, powerful midrange loudspeaker.
With excellent damping characteristics, the lightweight paper cone and accordion surround give this driver smooth response from 90 to 6,500 Hz for that incredibly clear vocal response that PRV midranges are known for.
The 4? voice coil is wound on a fiberglass former to withstand enough heat to handle 2,000 watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP
- 160 Hz at 12 dB per octave filter Crossover / BT12
- 145 Hz at 18 dB per octave filter Crossover / BT18
The extensive venting through the motor and cast aluminum frame helps to dissipate that heat to keep power compression low even after extended periods of high output.

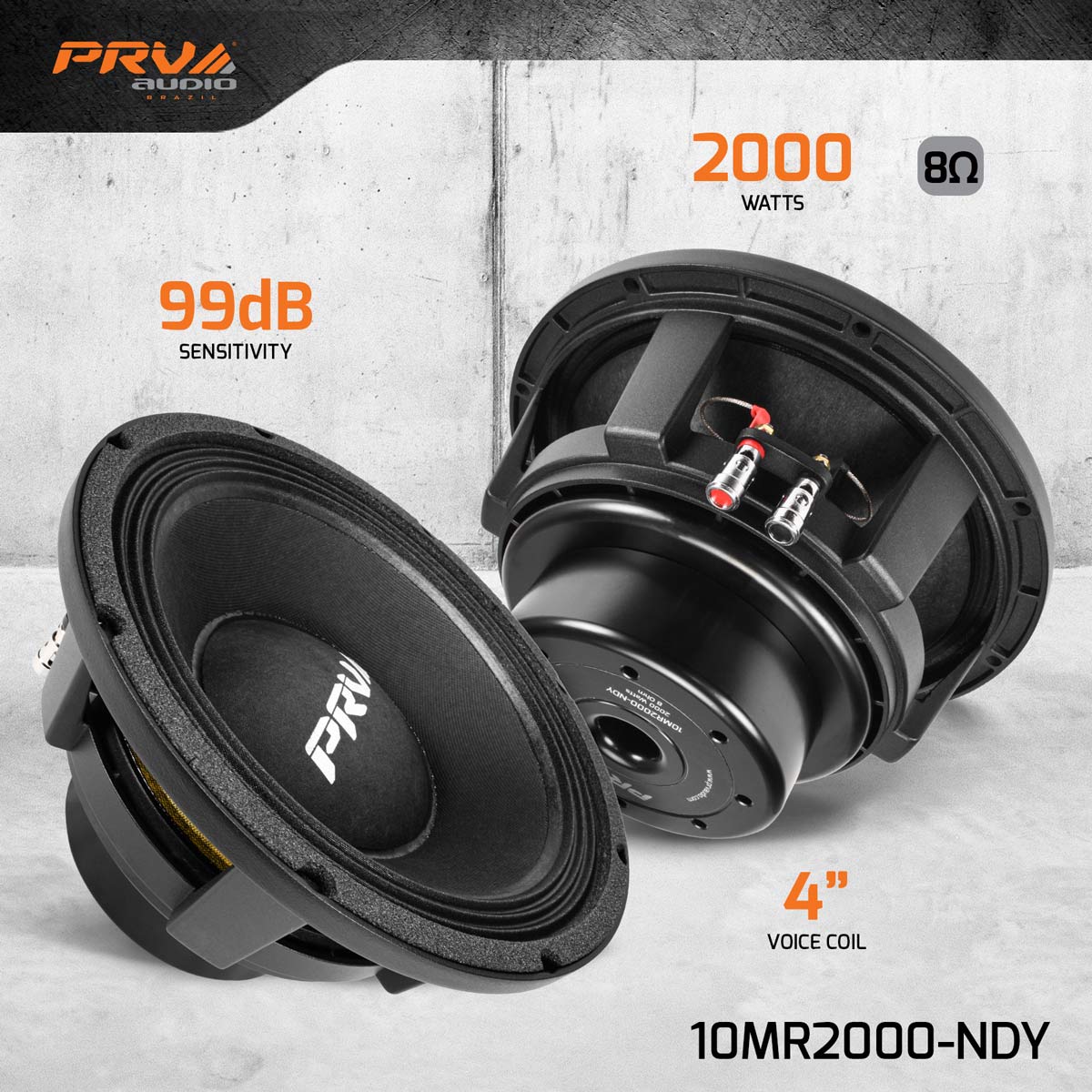

GENERAL SPECIFICATIONS

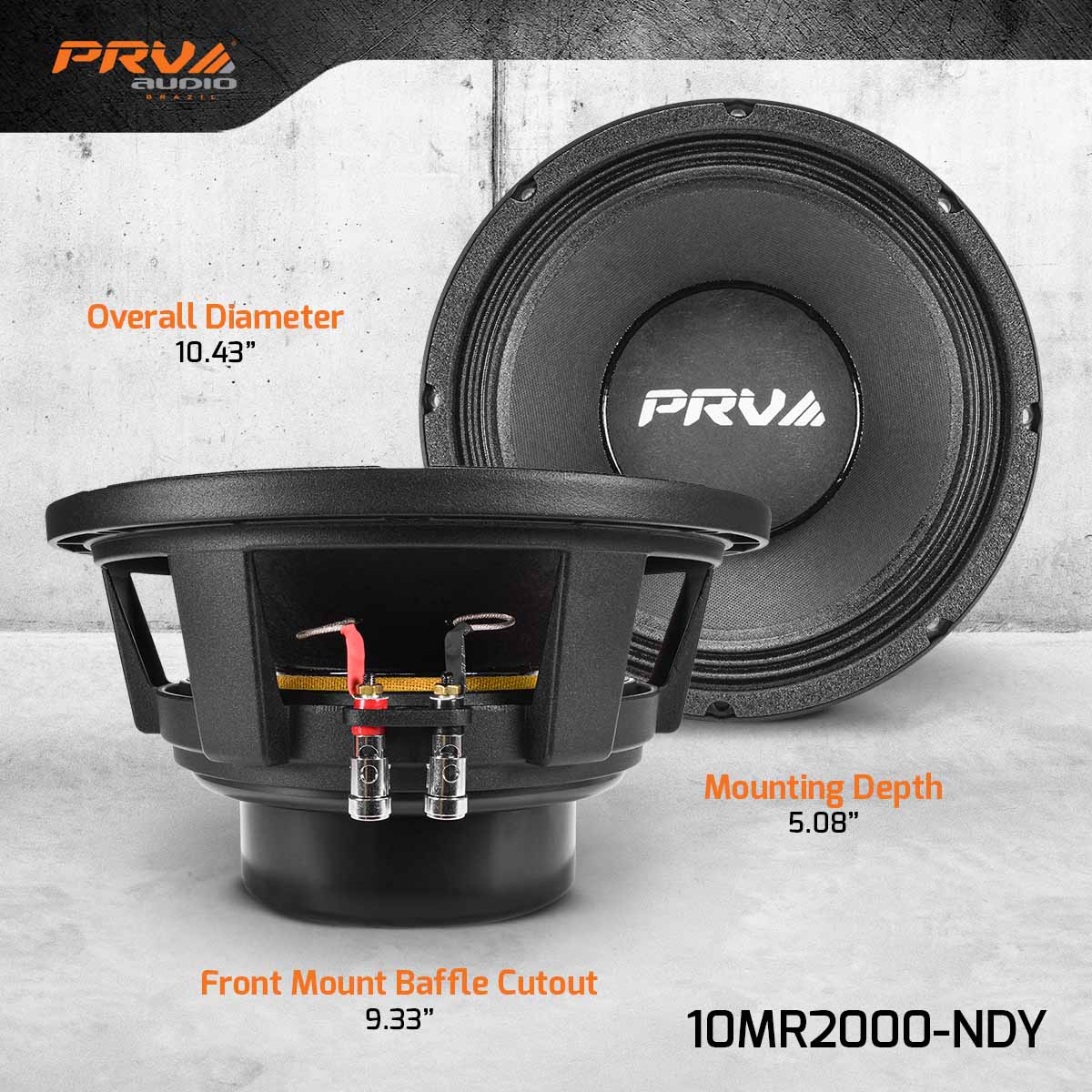

| Nominal Diameter | 10? (254 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 1000 Watts |
| Continuous Program Power (RMS)** | 2000 Watts |
| Max Peak Power*** | 4000 Watts |
| Sensitivity 2.00V at 1m | 99 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 160 Hz 12db Per Octave Crossover |
| Frequency Response | 90 6,500 Hz |
| Voice Coil Diameter | 4? (101 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 14.5 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 9.0 mm |
| Frame Material | Die Cast Aluminum |
