Description
xFeatures

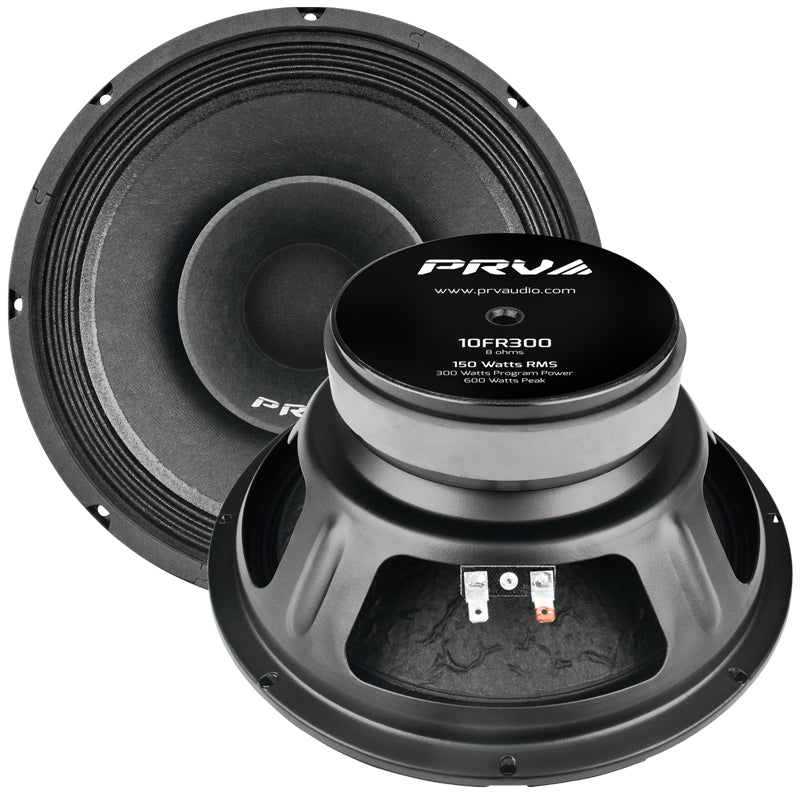

The PRV Audio FR Series sets a new standard of value in high-performance Fullrange drivers. The 10FR300 fullrange driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter.

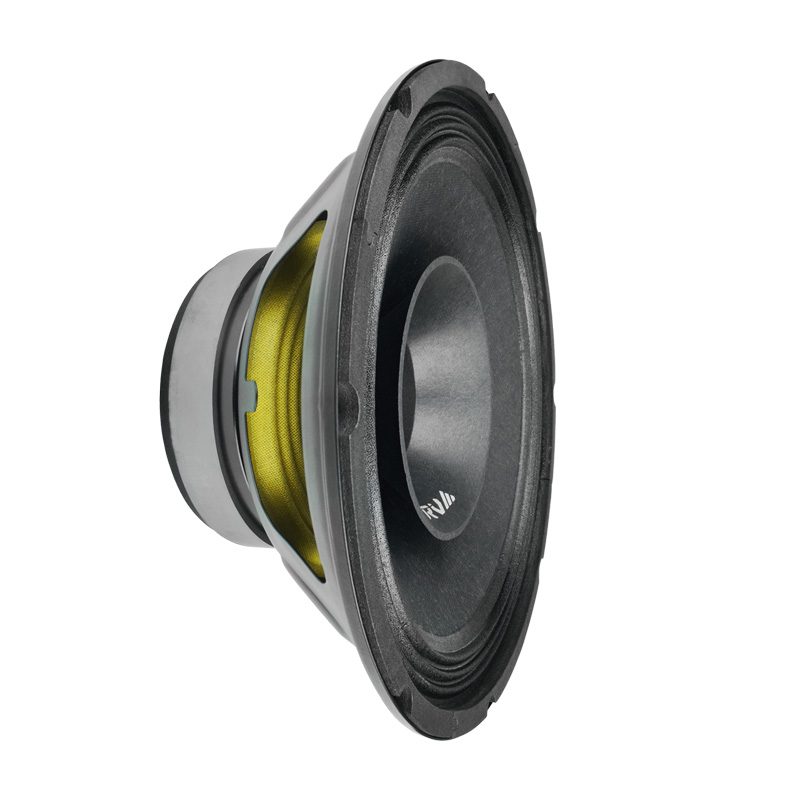

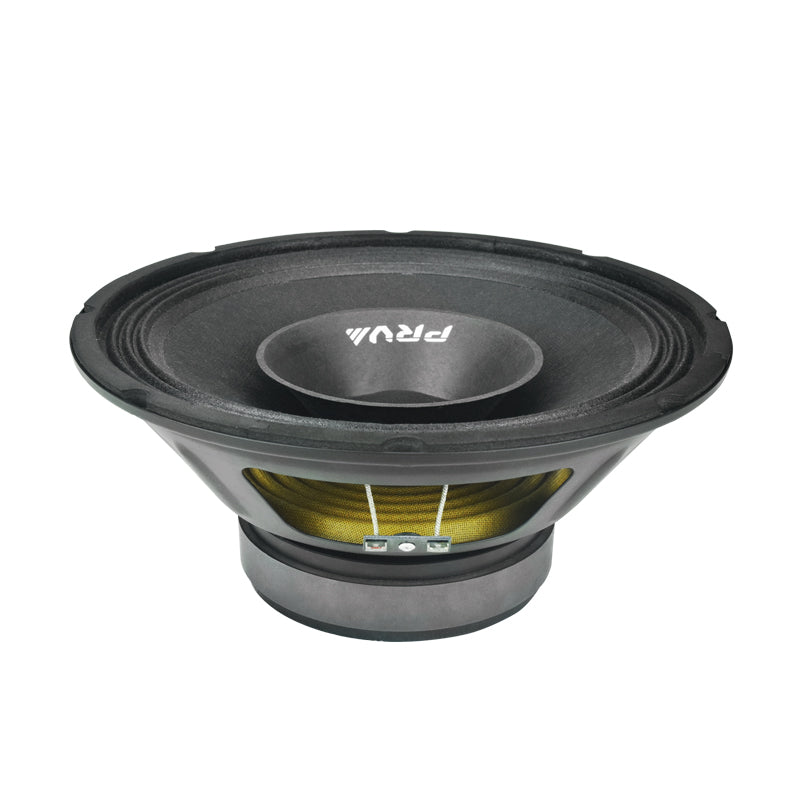

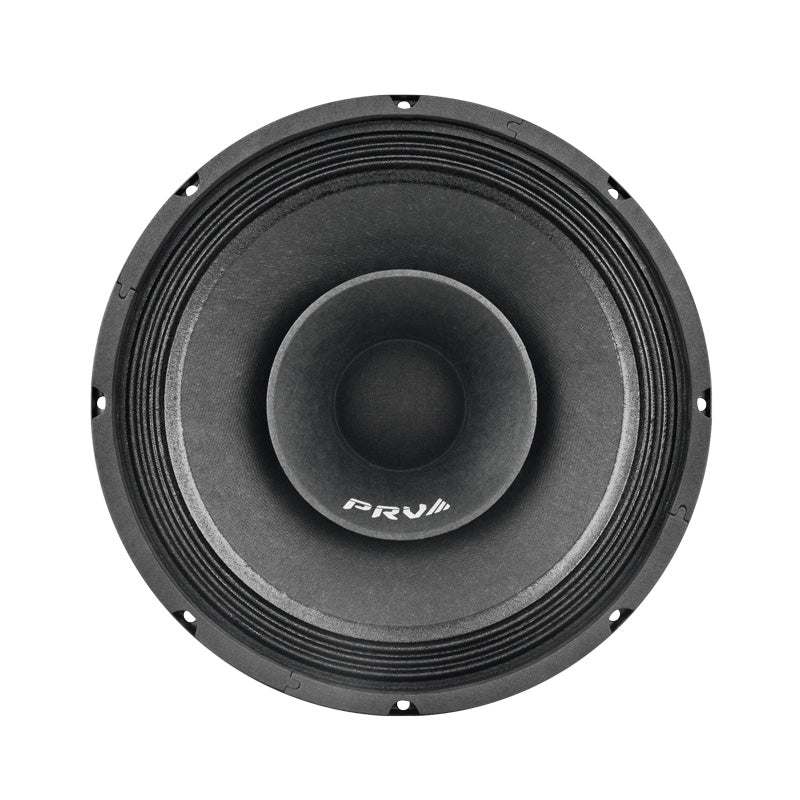

This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 50 Hz to 14,000 Hz.

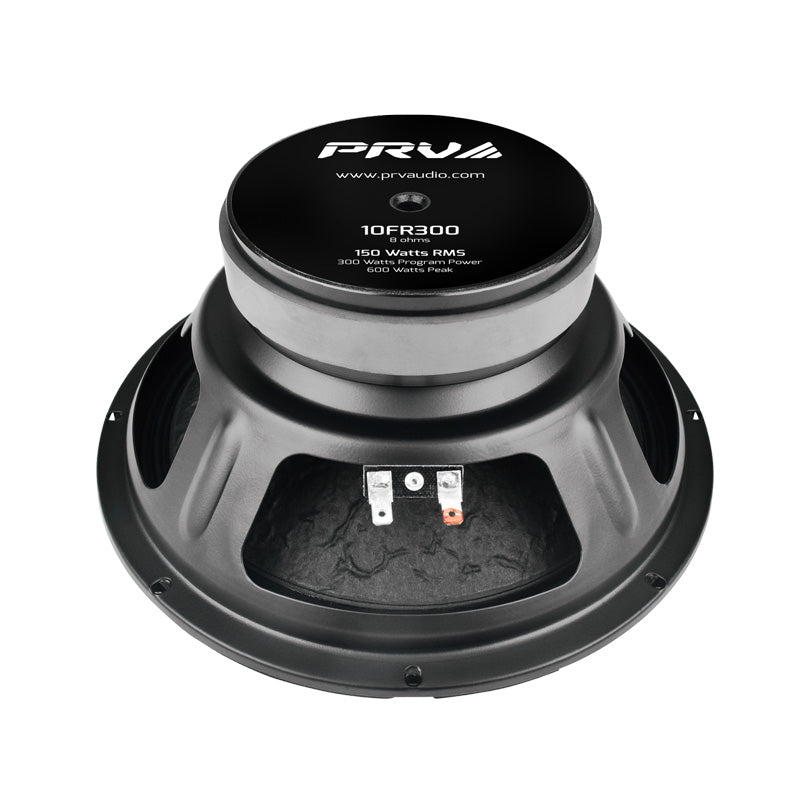

The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 100 dB of sensitivity.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 150 Watts
- Program Power: 300 Watts
- Sensitivity (1W/1m): 100 dB
- Voice Coil Diameter: 2?
GENERAL SPECIFICATIONS
| Nominal Diameter | 10? (254 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 150 Watts |
| Program Power | 300 Watts |
| Sensitivity 2.83V at 1m | 100 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
65 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 50 14,000 Hz |
| Voice Coil Diameter | 2? (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 12.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 47.4 l |
| Excursion (mathematical)*** | Xmax | 4.0 mm |
| Free Air Resonance | Fs | 60.12 Hz |
| Mechanical Factor | Qms | 15.57 |
| Electrical Factor | Qes | 0.68 |
| Total Factor | Qts | 0.65 |
| Cone Area | Sd | 394 cm |
| Mechanical Mass | Mms | 32.1 g |
| Bl Factor | Bl | 9.78 Tm |
| Dc Resistance | Re | 5.4 Ohms |
| Inductance | Le | 0.27 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 27.6 g |
| Mechanical Compliance | Cms | 0.216 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 10.10 (257 mm) |
| Front Mount Baffle Cutout | 9.25 ( 235 mm) |
| Mounting Depth | 4.17 (106 mm) |
| Overall Depth | 4.51 (114.5 mm) |
