• 1,300 Watts Max Power. (350 Watts Nom.)
• Built-In 350 Watts Output Class-D Amplifier
• Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)
• Wired Remote Bass Control & Gain Control at Side Panel

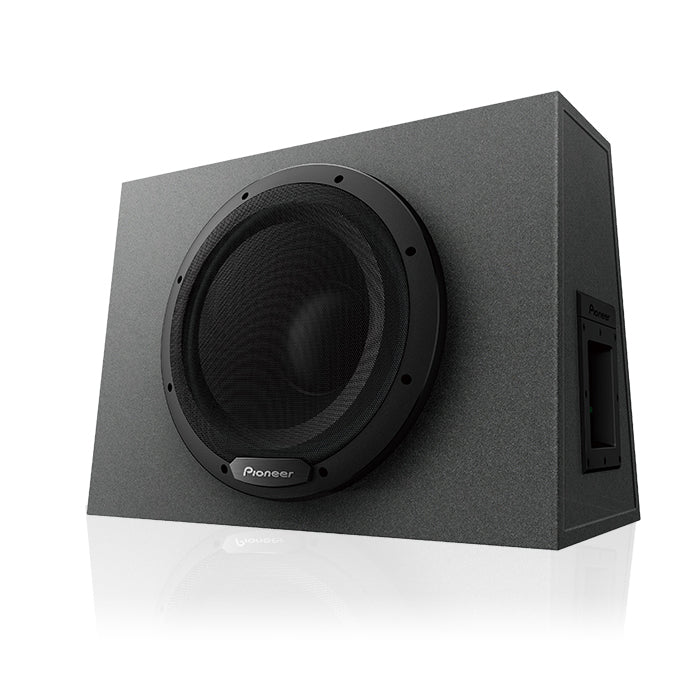

Powerful Amplified Subwoofer

Built with high bandwidth, high output and low distortion 300-watt Class D amplifier mated to high sensitivity woofers specifically optimized for use in small, sealed enclosures.

Flexible sound adjustment

User adjustable controls include a LPF, phase control and variable bass boost (0 to +12 dB, 40Hz to 100Hz) providing enhanced control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.

Installation Flexibility

The innovative trapezoid shape of the enclosure is designed for high rigidity and to reduce internal standing waves, while also increasing installation flexibility. Can be installed freely in the cabin or trunk space and re-positioned with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface.

Whats in the Box

• TS-WX1010LA Sealed Active Subwoofer
• 2 Mounting Brackets
• 8 (M5 x 25mm) screws
• 1 Wired Remote Bass Controller Knob
• 1 Power Terminal Connector
• 1 20A ATO fuse in holder (installed on power wire)
• Installation Manual
• Warranty Sheet

Key Features

• System TypePowered
• Sensitivity (1W/1m)114 dB
• Frequency Range20 Hz to 125 Hz
• Warranty1 Year
• Continuous Power handling (RMS) - Watts350 Watts
• Maximum Peak Power Handling - Watts1300 Watts
• Speaker GrillFully Covered Steel Mesh Grille
• Bass Boost Frequency40Hz to 100Hz
• Bass Boost Level0 to +12 dB
• Built In AmpYes
• Amp Max Power Output300 Watts
• Amp RMS Output 150 Watts
• Input Level (@ Gain Max) RCA100mV+100mV/22kOhm
• Input Level (@ Gain Max) Speaker Line2V+3V/5kOhm
• Power SourceDS 14.4 V
• Amp Max Current Consumption13 A
• Amp GroundingNegative

Build

• ShapeRound
• Size12"
• Cone MaterialCellulose fiber
• Center Cap MaterialPP
• Surround MaterialUrethane
• Surround TypeRolled
• Basket MaterialStamped Metal
• Magnet MaterialFerrite
• Magnet Weight33.5 oz
• Voice Coil TypeSingle Voice
• Voice Coil BobbinPolyimide
• Voice Coil wireCopper
• DamperAramid
• GasketABS
