Description
x- 1500 Watts Max Power (400 Watts Nominal)
- Unique Design with just 3-1/2" Mounting Depth
- Small Enclosure Use (0.5 ~ 1.0 cu. ft.)
- 4 ohms Single Voice Coil
- Glass Fiber and Mica Reinforced IMPP Cone
- Double reinforced Spider
- 8-AWG Push Terminals
- Rubber Surround
Easily Upgrade to High Performance
Pioneers A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

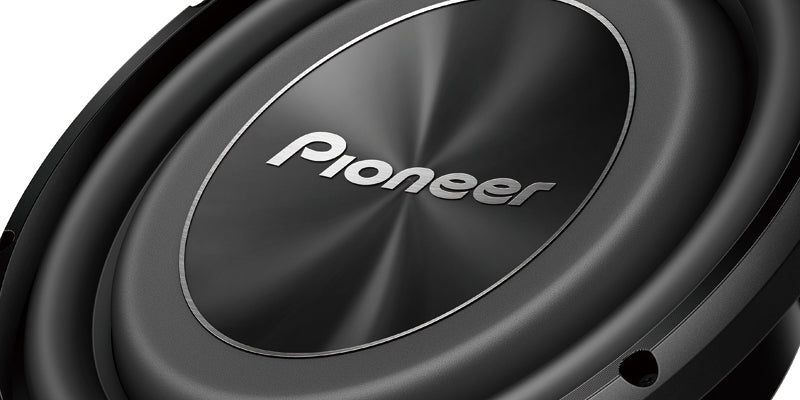

Reinforced Cone Structure
The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.
Shallow Compact Design
Our line of shallow subwoofers are designed to provide wider installation options for a broad range of vehicles. These shallow-mount subwoofers feature multiple patent-pending features to deliver the big bass performance of a full-size subwoofer, but in a compact design that can be installed either behind or under seats depending on the type of vehicle. The mounting depth is just 3-1/2" - less than half a typical subwoofer in this class.
Whats in the Box
- One 12" Subwoofer
- Trim ring
- Eight 1-1/8" Screws
- Adhesive backed foam gasket
- Manual (English/ German/ French/ Spanish/ Portuguese/ Italian/ Russian)
- Warranty information
- Enclosure recommendations printed on the box
Key Features
- Component Subwoofer
- 88dB
- 20 Hz to 1 kHz
- Yes
- 1 Year
- 400 Watts
- 1500 Watts
- 4
- Sold separately (UD-12GL)
Build
- Round
- 12"
- IMPP - Composite
- ABS
- Rubber
- Rolled
- Stamped Metal
- Ferrite
- 71.6 oz
- Single Voice
- Kapton
- Copper
- Poly cotton
- PP
- Push Type
- 12-1/2"
- 3-1/2"
- 11-1/8"
- 45.6
- 31
- 0.54
- 8.8
- 22.6
- 22.6
- 5-7/8"
- 3"
