Description
x- Selectable front view/rear view mode (Installation setting)
- Color ? in. CMOS Sensor with 472,384 Pixels (472K) Resolution
- Pixel Ratio: 968 x 488
- Wide Angle camera
- Horizontal View in Degrees: 155
- Vertical View in Degrees: 125
- Low light Illumination Range: Approximately 0.1 0.01 Lux
- Dimensions (W x H x D) 7/8 in x 7/8 in x 7/8 in

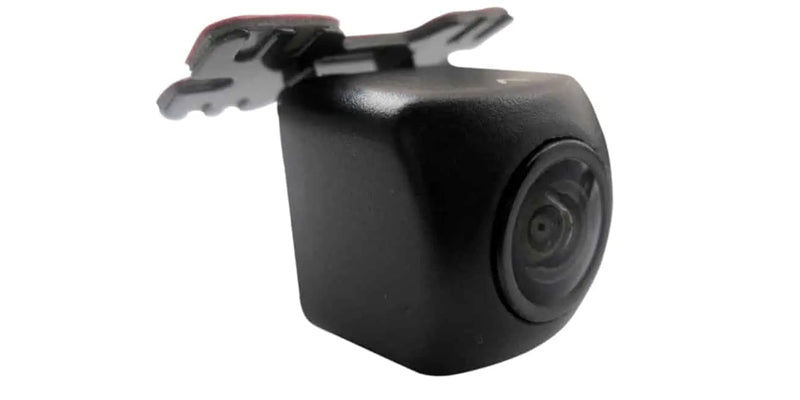

The ND-BC010 Universal Rearview Camera is compatible with Pioneer A/V and Navigation in-dash receivers that feature a rear-view camera input. The ND-BC010 features a wide-angle 155 degree horizontal and 125-degree vertical view with more than 470,000-pixel resolution for detailed imagery. The ND-BC010 features a ? in. CMOS (Complementary Metal Oxide Semiconductor) sensor that delivers improved resolution and glare reduction during daytime use with improved low-light capability for nighttime use.
Improved Installation Flexibility
The ND-BC010 utilizes a built-in power supply with minimal connections for easier installation and its compact size provides hassle-free mounting. It also includes 10 meter cable for installation on long trucks, SUVs and recreational vehicles.
Improved Visibility
The ND-BC010 offers a wide-angle 155 degree view and more than 470,000 pixels for more detailed images. The improved ? in. CMOS sensor reduces the glare during daytime use and has improved low-light capability for improved daytime and nighttime use.
Whats in the Box
- Camera with bracket
- Power & Video cable
- Hex key
- Owner's Manual
Features
- NTSC
- ? in. CMOS
- 472,384 Pixels (472K)
- 968 x 488
- 155 / 125
- 0.1 0.01 Lux
- F2.0
- 7/8 in x 7/8 in x 7/8 in
- 10m (ACC / GND / Video out)
