Description
x- Class-D audio amplifier
- Advanced conformal coated PCB
- Corrosion resistant chassis design
- SAE J1171 Certified (Ignition protection) +ABYC/NMMA Compliant Terminal Connections
- 21-step frequency selection (LPF/HPF)
- Bridge Selector switch controlled by Microcomputer

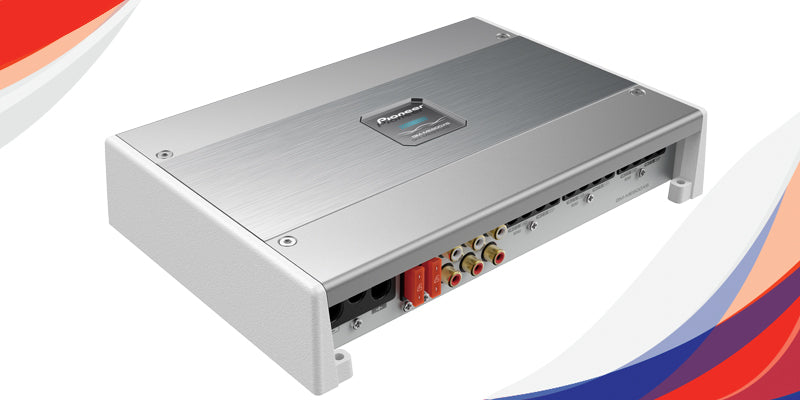

Pioneer GM-ME600X6 is a Class-D 6-channel marine amplifier that features single-sided ABYC/NMMA compliant terminals and an MCU design featuring built-in high pass and low pass filters (featuring a precise 21-step frequency range), bridged output settings, gain and input selection settings for each of the three pairs of channels (six total channels). The microcomputer Protection Control System (PCS), provides thermal protection, controlled current, and voltage protection to ensure stable output operation. Independent speaker output settings for each channel provide speaker matching flexibility.
Class D Audio Amplifier with Micro Controller Unit design (MCU)
Pioneer is a Class D Marine Amplifier features an MCU design, utilizing a microprocessor to enable and control the amplifiers audio, power and protection circuits.
Digital controlled Class-D Amplifier Circuit
This amplifier features a 32-bit floating-point DSP to modulate the input signal which improves audio performance for the highest levels of accuracy, stability, channel symmetry, and high signal-to-noise performance.
Protection Control System (PCS)
Pioneers PCS continuously monitors the input voltage, current consumption, and operating temperature to automatically adjust the amplifiers output to ensure operational stability during long listening sessions or when installed in high-temperature environments.
Top Chassis Adjustment Access
Extremely flexible in a variety of environmental conditional, the sealed top chassis cover is removable to easily access adjustment setting options.
Advanced Conformal coated PCB
This Class D audio marine amplifier is conformal coated with a thin, protective layer that is non-conductive and applied directly to the Printed Circuit Board (PCB). This process protects the PCB from moisture, dust, corrosion, and contamination.
Single-sided connections
Single-sided terminal connections and adjustment settings on the top chassis allows installation in narrow compartments and provides an improved cosmetic design when placed vertically or horizontally.
ABYC/NMMA standards compliant Connections
This amplifier is compliant with the published ABYC/NMMA standards. It has the new set-screw pressure-type conductor connectors preventing force applied directly to the conductor strands. Stainless-steel power and speaker terminals are corrosion resistant and designed for easy wiring.
PCB Layout and Design
The PCB for this Pioneer amplifier is made of a glass epoxy substrate which is strong, water-resistant, and provides good insulation between layers to minimize interference while promoting accurate signal with increased electrical connectivity.
Flexible Output Mode Adjustment Settings 6-channel
Three independent channel setting pairs and can be configured in the following output modes: 6-ch (all channels operating in stereo mode); 5-ch (4-ch in stereo mode plus 1-ch bridged); 4-ch (2...
Standards
Yes
Conformal Coating
Yes
Performance
2 ohm to 8 ohm allowable
9.3 A x 6-..
