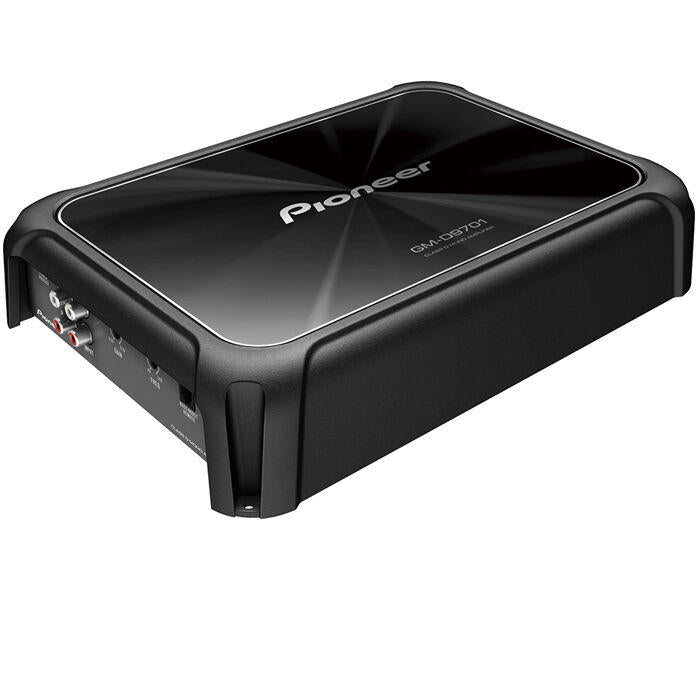

Pioneer GM-D9701 Mono Class D Amplifier (500x1@4ohm)(800x1@2 ohm)(1200x1@1 ohm)

Pioneer GM-D9701 Mono Class D Amplifier (500x1@4ohm)(800x1@2 ohm)(1200x1@1 ohm)

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amp might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

Product Details:

• GM Digital Series Class D Monoblock Amplifier w/ Wired Bass Boost Remote
• RMS Power Rating:
• 4 ohms: 500 watts x 1 chan.
• 2 ohms: 800 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Max power output: 2400 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply

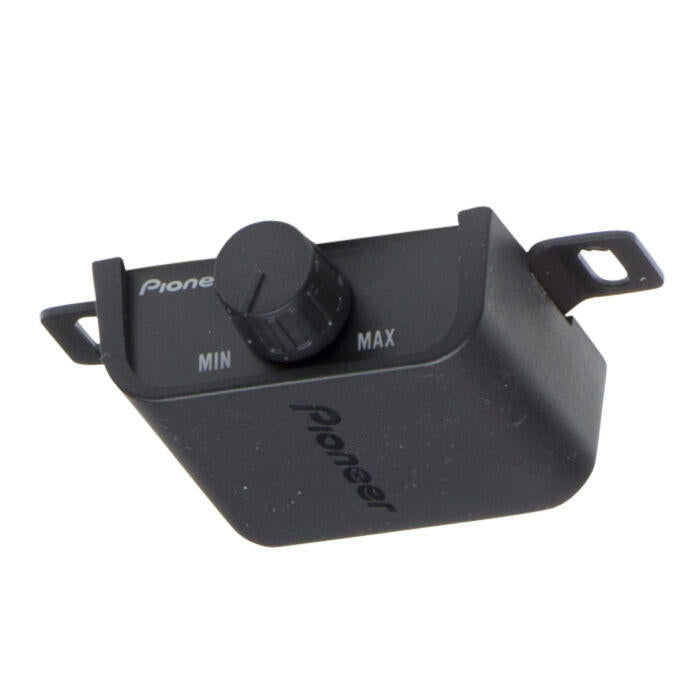

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
• Soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Variable low-pass filter (40-240 Hz, 24 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response: 10-240 Hz
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 12-3/8"W x 7-7/8"D x 2-3/8"H
• 1-year Sonic Electronix Warranty
