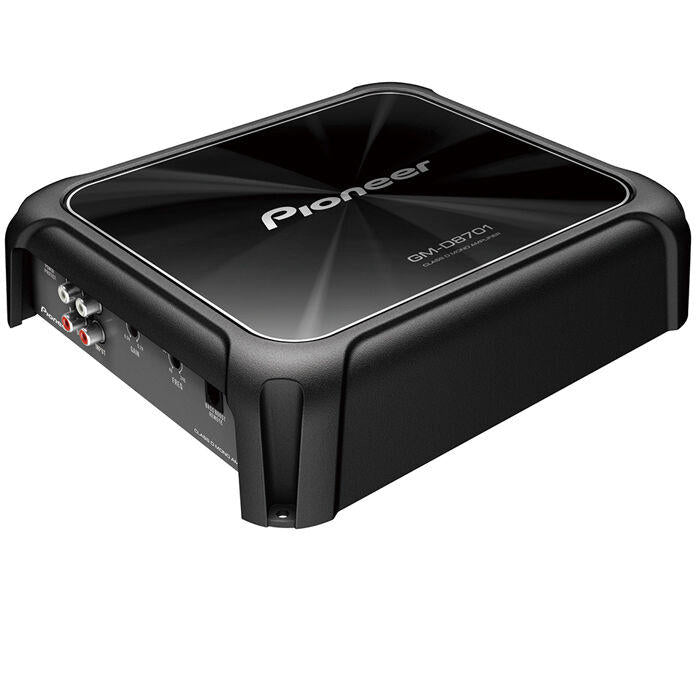

Pioneer GM-D8701 Mono Class D Amplifier

Pioneer GM-D8701 Mono Class D Amplifier

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amp might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

General Features:

• GM Digital Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 300 watts x 1 chan.
• 2 ohms: 500 watts x 1 chan.
• 1 ohm: 800 watts x 1 chan.
• Max power output: 1500 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• High-density split-dome convection heat-sink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity:
• Low level: 200mV-6.5V
• High level: 0.8V-16V
• Variable low-pass filter (40-240 Hz, 12 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response: 10-240 Hz
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 10-7/16"W x 2-3/8"D x 7-7/8"H
• 1-year Sonic Electronix Warranty
