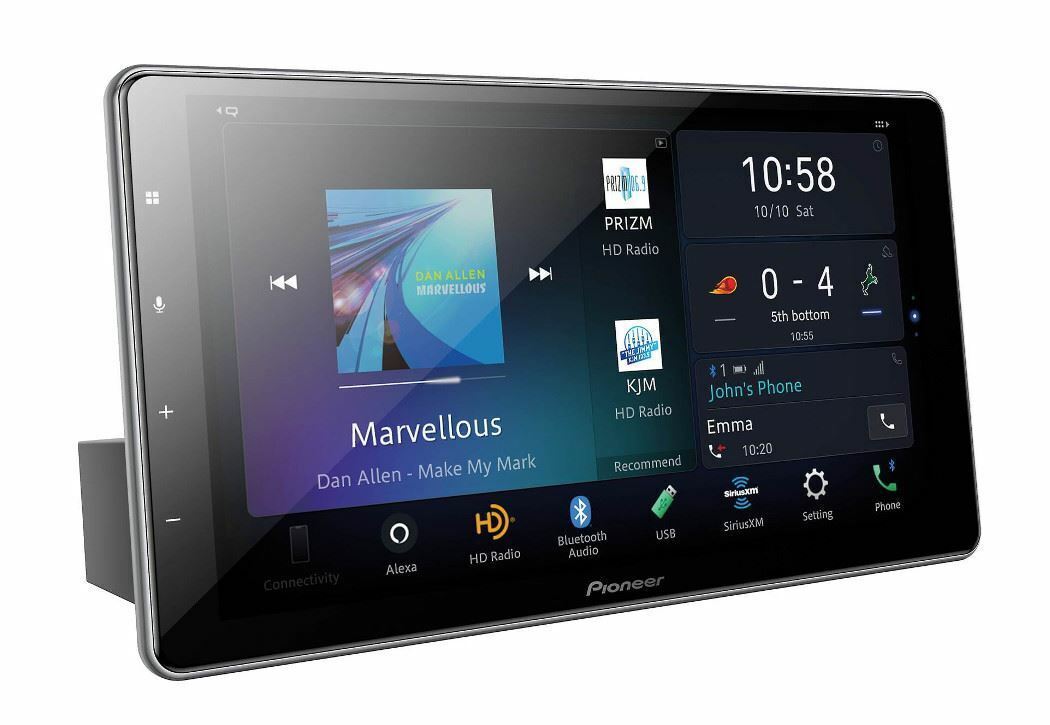

Pioneer DMH-WT76NEX



9" HD Single DIN Touchscreen Digital Multimedia Receiver with Wireless Apple CarPlay, Android Auto and Amazon Alexa















Product Details



Single DIN In-Dash Bluetooth Digital Multimedia Receiver



9" Capacitive Touchscreen Display



Power Output:



Peak: 50 watts x 4 channel



Bluetooth hands-free calling and audio streaming



Built-in HD Radio Tuner



Authorized Internet Dealer



1-year Sonic Electronix Warranty



MFR #: DMH-WT7600NEX



Smartphone Features



Apple CarPlay and Android Auto compatible (Wired or Wireless)



Display and control music, and other apps with iPhone and Android



Pandora and Spotify capable



Built-in Amazon Alexa (with Wi-Fi connection)



Siri Eyes Free control for select iPhones



Wired phone-mirroring for select devices via micro HDMI



Playback and Audio Features



MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) | DSD (Hi-Res) Audio Playback



AVI | MP4 | MPG | MOV and WMV Video Playback



AM/FM tuner with 18FM/6AM presets



MP3 ID3 Tag Display (Title/Artist/Album)



13-Band Equalizer



Expandability Options



Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately



Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately



iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.



Audio/Video Inputs and Outputs



3 sets of 4 volts preamp outputs (front, rear, and subwoofer)



Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device



Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.



Backup Camera Input: Used for universal rear view cameras with an RCA composite input



Front-view Camera Input: Used for universal cameras with an RCA composite input



Rear RCA Video Output: Used for connection to separate monitors and other devices



Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.



Rear HDMI input



Bluetooth Features



Built-in Bluetooth technology for hands-free talking and audio streaming



Includes an external wired microphone for clear, convenient, distortion-free talking



Key Features



Key Features



SiriusXM Ready



HD Radio



Idatalink Maestro capable



USB input



HDMI input



Aux input



Floating Touchscreen



Alexa Voice Control



In-Dash Receiver Specifications



Receiver Size



Single DIN



Radio Type



Digital Multimedia (does not play discs)



Bluetooth Features



Hands-free Calling



Audio Streaming (A2DP)



External Microphone



Volume Control Type



Touch Sensitive



Anti-Theft Security



None



Wireless Remote



Optional (Accessory required and sold separately)



Peak Power Output



50 watts x 4 channel



RMS Power Output



22 watts x 4 channel



Preamp RCA Outputs



3 Sets (6-channel)



Dedicated Subwoofer Preamp RCA Output



Yes



Preamp Voltage



4 volts



Built-In Equalizer



13-Band Equalizer



Display Type



Capacitive Touchscreen Display



Touchscreen



Yes



Touchscreen Size



9"



Display Adjustment



Dimmer



Display Color



Variable



Button Color



Variable



Smartphone Integration



Compatible Smartphones



iPhone (iOS)



Android



iPhone Control



CarPlay



CarPlay (Wireless)



Navigation App Compatible



Siri Eyes Free Control



Pandora Control



Spotify Control



Mirroring Control



Android Control



Android Auto



Android Auto (Wireless)



Navigation App Compatible



Google Assistant



Pandora Control



Spotify Control



Mirroring Control



Expandability Features



Inputs



Audio/Video (Rear)



Auxiliary (Rear)



Backup Camera



Second Camera



HDMI



USB-C (Rear)



Outputs



Composite Video (RCA)



Steering Wheel Control Compatible



Yes (Accessory required and sold separately)



Axxess ASWC-1



Tuner



AM/FM Tuner



Yes



FM Presets



18



AM Presets



6



Radio Data System (RDS)



Yes



Playback



Music File Playback Type



MP3



WMA



WAV



FLAC



High-Res FLAC (192kHz/24bit)



AAC



High-Res WAV (192kHz/24bit)



DSD



Navigation Features



Map Database



What is in the box?



Product and accessories



In-dash receiver



Battery/batteries for remote



Microphone with attached cable



Remote control



Paperwork



User manual



Warranty/Registration card







Experience hassle-free parking with this iBEAM IR backup camera. The water-resistant construction resists the elements for long-lasting use, while the included backplate and surface mounts provide versatile setup options. This iBEAM IR backup camera is viewable while driving with a compatible monitor (not included) for added convenience, and the 170-degree viewing angle offers a wide field of view.







Compatible with most vehicles



This universal camera is ideal for keeping an eye on cargo, a trailer hitch, or reducing blind spots in the back of the vehicle while driving.







170° viewing angle



Lets you see a wide area behind your vehicle.







IP67 water-resistant housing



Protects against damage from moisture.







IR LEDs and parking lines



Can be activated while the vehicle is in reverse.







Multiple mounts included



License plate and surface mounts offer various mounting options.











iBEAM License Plate Backup Camera



License plate and surface mounts



27' extension harness



Screws



Axxess ASWC-1 Steering Wheel Control Adapter



Connects your car's steering wheel audio controls to select aftermarket car stereos







Keep your steering wheel audio controls



The ASWC-1 adapter from Axxess allows you to connect your vehicle's steering wheel controls to almost any brand of aftermarket stereo, including Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and more. (Note: your new stereo must have a 3.5mm steering wheel control or wired remote control input.)







Installation is a straightforward process. You usually have to connect a few wires to your factory wiring. In most cases, the adapter automatically recognizes the vehicle it's been connected to. If not, you can manually program the adapter for your vehicle by following a step-by-step process with LED confirmation. Some vehicles, like select Nissans, will require a load resistor (sold separately) to successfully interface with the ASWC-1 adapter. Once connected, the adapter's memory retains its programming even if battery power is interrupted. A USB slot allows you to keep the ASWC-1 current when updates become available. Warranty: 1 year.







What's in the box:











Steering wheel control interface module



11" Twelve-pin harness (with male 3.5mm connector)



Female 3.5mm connector (with attached 9" brown and brown/white wires)



Installation Manual







Application Chart



SiriusXM SXV300V1 Tuner

Enjoy SiriusXM satellite radio with your compatible aftermarket or factory radio (subscription sold separately by SiriusXM)



Enjoy the drive with SiriusXM

With SiriusXM's compact SXV300V1 tuner, you can liven up your daily drive with your favorite satellite radio programming. Small enough to fit neatly behind your car's dash, the SXV300V1 plugs into your SiriusXM-Ready™ car stereo without the need for any additional cables or interfaces. You can also connect this tuner to select factory radios with the help of a Vais Technology adapter. This complete package includes the hideaway satellite radio tuner, plus an installation guide and an exterior antenna that attaches with a powerful magnetic base.



This latest and greatest (so far) SiriusXM tuner gives you all the features you're used to, plus some very cool new ones. With the SXV300V1 and a growing list of new SiriusXM-Ready car stereos, you can create a daily programming package that's uniquely yours.



The SXV300V1 will plug into aftermarket in-dash receivers that have a "SiriusXM-Ready" logo. It will also connect to select factory radios with a Vais Technology adapter (not included). You'll also need an XM or SiriusXM subscription.  Satellite radio service is available only within the lower 48 states — not available in Hawaii or U.S. territories. Limited service is available in Alaska.



New features with select car stereos

With select car stereos (see note below), you can access some great new SiriusXM features. Want to take some of the hassle out of your commute? The Traffic & Weather Now feature can access the latest info whenever you want to hear it. If you're a sports fan, SportsFlash™ will notify you when a big play happens during a game involving one of your favorite sports teams. And if you're a music lover, TuneMix™ plays a unique blend of songs chosen from your favorite music channels on the SiriusXM Preset Band. You can even skip songs you don't want to hear.



If you have an older SiriusXM-compatible receiver, you won't get the features above, but you'll still get all the SiriusXM music, entertainment, news, and sports programming you love, plus familiar features like Replay and iTunes® song tagging. With the SXV300V1, you can even set Song/Artist/Game alerts, so you'll always know when your favorite tunes or teams are playing on another channel. And you'll be able to enjoy those new features when you upgrade your receiver. Either way, SiriusXM's vast lineup of music, sports, news, and more will make your daily drive a whole lot more entertaining.



More channels for more choices

Depending on your subscription package, you'll also be able to enjoy SiriusXM's Xtra Channels with the SXV300V1, giving you access to over 20 new music, sports, entertainment, plus SiriusXM Latino, a collection of dedicated Spanish-language channels.



Important Note: Your receiver MUST have the "SiriusXM-Ready" logo — this adapter is not compatible with receivers that have "SAT Radio Ready", "Sirius Ready DC", or "XM Ready" logos. To access Traffic and Weather Now, SportsFlash, and TuneMix, your receiver must be a new model that supports the latest SiriusXM features.



Product highlights:

SiriusXM vehicle connection package includes hideaway tuner and magnetic antenna

works only with in-dash receivers with the SiriusXM-Ready logo

enjoy SiriusXM advanced features like TuneMix and SportsFlash with select new compatible car stereos

pause, rewind, and replay up to 60 minutes of live satellite radio broadcasts

get game, song, and artist alerts

iTunes tagging with iPod connected

enjoy SiriusXM Xtra Channels (depending on your subscription package)

tuner dimensions: 2-1/16"W x 3/4"H x 3-13/16"D

What's in the box:





SiriusXM Connect vehicle tuner (w/ attached 25" cable terminated by a proprietary connector)

SiriusXM antenna (w/ attached 23' cable terminated by a right-angle SMB connector)

Alcohol Prep Pad

Installation Guide
