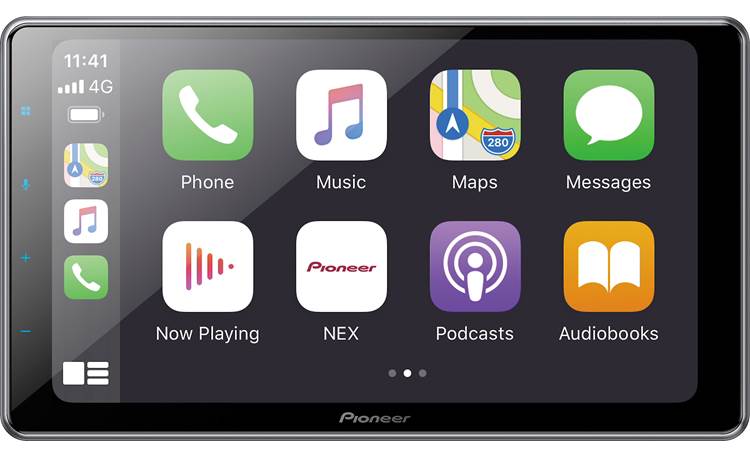

Pioneer DMH-WT7600NEX Digital multimedia receiver (does not play discs)

Product highlights:

General Features:
digital multimedia player with AM/FM tuner (does not play CDs or DVDs)
9" floating capacitive HD touchscreen display
fits single-DIN dash openings
plays media loaded with MP3, WMA, AAC, WAV, and high-res FLAC and DSD music files
built-in Bluetooth for hands-free calling and music streaming
built-in HD Radio tuner
Smartphone Features:
Android Auto and Apple CarPlay compatible (wired or wireless)
Amazon Alexa built-in (with Wi-Fi connection)
display and command of select music, navigation, and other apps with iPhone and Android
Pandora and Spotify control through Apple CarPlay, Android Auto, and Amazon Alexa
Siri Eyes Free control for select iPhones
Audio/Visual Features:
13-band graphic EQ
Expandability:
compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
inputs: rear USB-C input, rear micro-HDMI input, rear A/V input (3.5 mm), two camera inputs (RCA)
outputs: video output (RCA), 6-channel preamp outputs (4-volt front, rear, sub)
Other Information:
Important Note Monitor dimensions are 9.085" x 5.115". Before ordering, check for possible interference with your dash.
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
compatible with most factory steering wheel audio controls (adapter required)
works with iDataLink Maestro moduleretains factory features in a wide selection of vehicles
displays engine performance and other vehicle data on touchscreen

wireless remote included (optional wired remote)
MFR # DMH-WT7600NEX


What's in the box:
Pioneer DMH-WT7600NEX owner's manual
Touchscreen monitor (rear cover pre-installed)
Source unit (10A fuse)
Wiring harness
Preout/AV harness
58" USB-C extension cable
USB-C to USB-A adapter
Remote control (CXE5116)
CR2025 3V battery (pre-installed in remote)
Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
GPS antenna (attached 11.5' cable)
Self-adhesive square
3 Self-adhesive clips
Two-sided tape
Monitor bracket
6 Pan-head ISO screws (M5 x 9mm)
6 Flat-head ISO screws (M5 x 9mm)
4 Binding head screws (M4x12mm)
4 Binding head screws (4mm x 6mm)
4 Monitor cover screws (M2x4mm)
Quick Start Guide
Installation Manual
"About Alexa Built-In" note
Warranty Information
"Caution" note
"Attaching" The Monitor Cover" note
