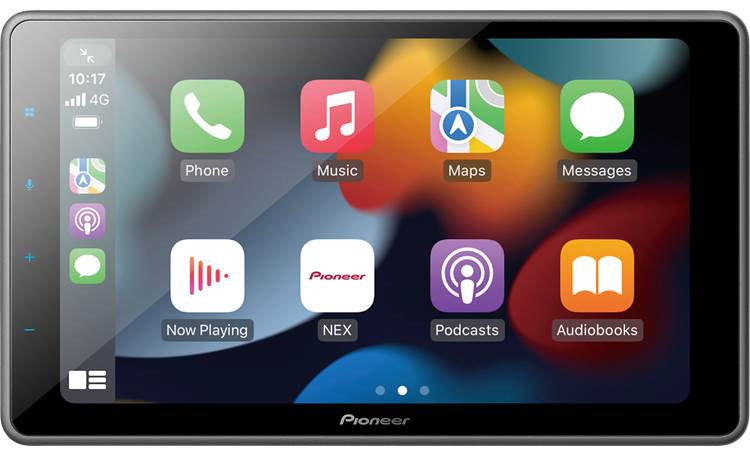

Pioneer DMH-WT3800NEX Digital multimedia receiver (does not play discs)

Product highlights:

digital multimedia player with AM/FM tuner (does not play discs)
9" floating capacitive HD touchscreen display
multi-color button illumination
chassis fits single-DIN dash openings
plays media loaded with MP3, WMA, AAC, WAV, and high-res FLAC and DSD music files
built-in Bluetooth for hands-free calling and music streaming
built-in wi-fi with hotspot functionality
Smartphone Features:
Android Auto and Apple CarPlay compatible (wired or wireless)
Pioneer WebLink built in
Amazon Alexa built-in (with Pioneer Vozsis app)
display and command of select music, navigation, and other apps with iPhone and Android
Pandora and Spotify available through Apple CarPlay, Android Auto, and Alexa
Audio Features:
13-band graphic EQ
time alignment
low-pass, high-pass and band-pass filters
3-way mode for external amplifiers
Expandability:
compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
inputs: 3.5mm audio/video AUX in, USB IN, 2x camera inputs, wired remote
outputs: 6-channel preamp outputs (2-volt front, rear, sub), RCA video output
Other Information:
Important Note Monitor dimensions are 9.215" x 5.36". Before ordering, check for possible interference with your dash.
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in amplifier (14 watts RMS/50 watts peak x 4 channels)
compatible with most factory steering wheel audio controls (adapter required)
works with iDataLink Maestro moduleretains factory features in a wide selection of vehicles
displays engine performance and other vehicle data on touchscreen

dimensions:screen: 9.215"W x 5.375"H x 2.125"D
chassis: 7.025"W x 1.975"H x 6.735"D

MFR # DMH-WT3800NEX


What's in the box:
Pioneer DMH-WT3800NEX owner's manual
Touchscreen monitor (rear cover pre-installed)
Source unit (10A fuse)
Wiring harness
Preout/AV harness
58" USB extension cable
Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
GPS antenna (attached 11.5' cable)
Self-adhesive square
3 Self-adhesive clips
Two-sided tape
Monitor bracket
Monitor spacer
Front bracket
6 Pan-head ISO screws (M5 x 9mm)
6 Flat-head ISO screws (M5 x 9mm)
4 Binding head screws (M4x12mm)
4 Binding head screws (4mm x 6mm)
4 Monitor cover screws (M2x4mm)
Quick Start Guide
Warranty Information
