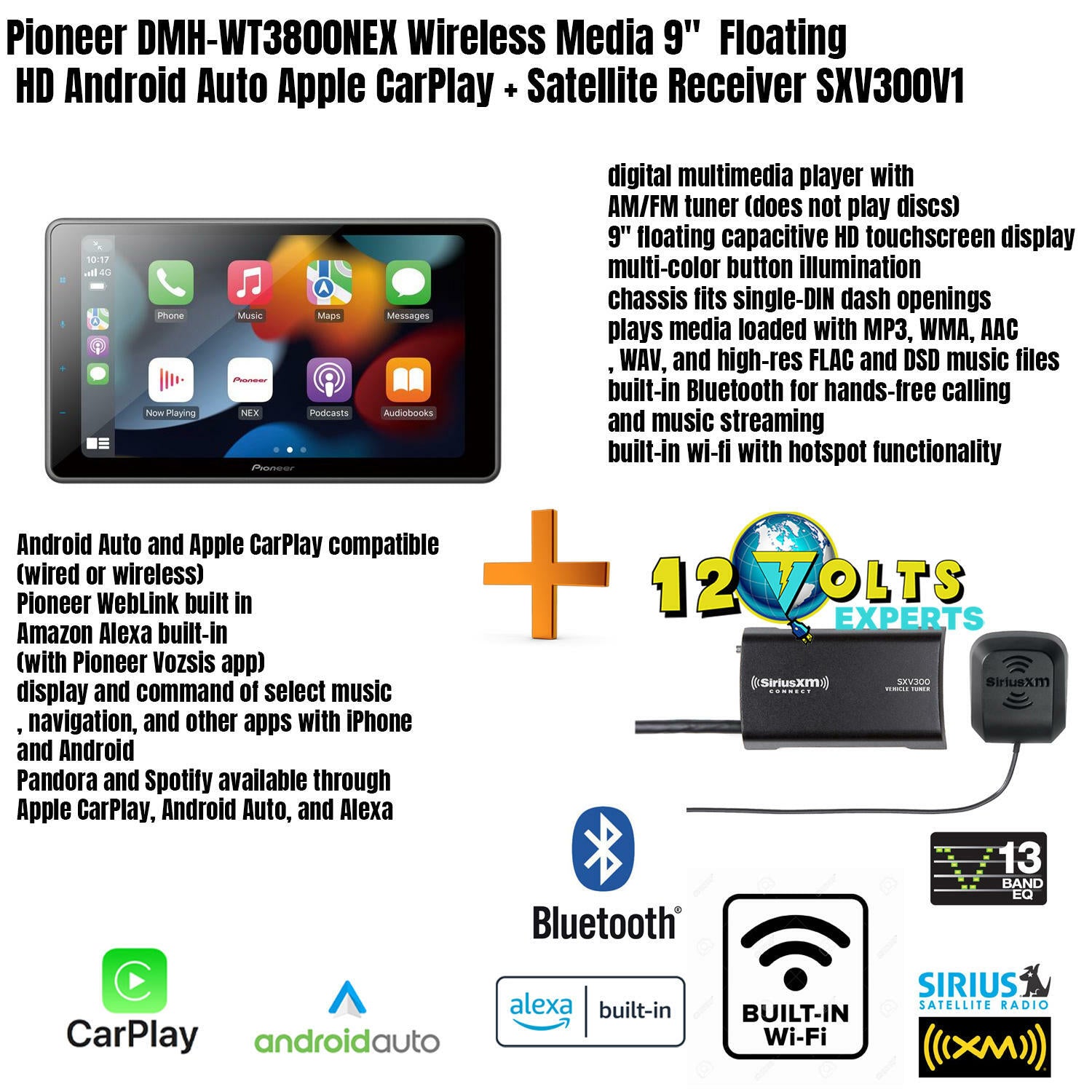

Pioneer DMH-WT3800NEX 9" - Android Auto, Apple CarPlay, Bluetooth - Floating Type Multimedia Receiver + Satellite Reciever SXV300V1

Big-screen visualsWhen it comes to car stereo touchscreens, a bigger screen is often better. Pioneer's DMH-WT3800NEX digital multimedia receiver combines a standard-size single-DIN chassis connected to a 9" floating capacitive HD touchscreen display so you can better see and control your system. This receiver features built-in wired and wireless Apple CarPlay® and Android Auto™ as well as built-in wi-fi and Bluetooth® for simple smartphone connections. And with the Weblink and Vozsis apps installed on your phone, you'll be able to enjoy the voice-control convenience of Amazon Alexa. The DMH-WT3800NEX is also compatible with the SiriusXM satellite radio tuner (sold separately) to listen to music, news, sports, and podcasts. Wired and wireless smartphone integrationWith your iPhone® or Android™ smartphone connected, you'll gain a variety of apps that are simple to switch between, whether you're using this radio's touchscreen or voice control. This receiver offers these options:Bluetooth: The DMH-W3800NEX's built-in Bluetooth technology allows you to make hands-free calls and playback, pause, and select audio from your smartphone. Wired and wireless Android Auto: Android Auto integrates the Android platform into your driving experience in a non-distracting way. You'll have voice-control access to Google Maps, weather, music, your phone, and text messages, plus easy access to many of your favorite apps. Get more info at www.android.com/auto.Wired and wireless Apple CarPlay: CarPlay integrates your iPhone® into the driving experience, putting iPhone content at the driver's voice command with minimal distraction. That means easy access to your music library, your phone, messages, navigation, and many third-party streaming music apps, too. Learn more at www.apple.com/ios/carplay.Screen mirroring: If you use apps unsupported by Android Auto or Apple CarPlay, this receiver will mirror your Android and iPhone screen, giving you touchscreen control over your favorite phone features. Requires wired USB connection.

Amazon Alexa: With the Weblink and Vozsis apps installed on your phone you can use Alexa voice control to play music, hear the news, check weather, control smart home devices, and more. To learn more about Alexa's features on the DMH-W3800NEX, visit https://www.pioneerelectronics.com/PUSA/Car/Alexa.CarAVAssist: Pioneer's CarAVAssist app supports web browsing, home screen customization, and other functions. You can bookmark websites that you want to enjoy in your car, register your favorite sports teams to receive real-time game updates, make notification settings for your smartphone, and more. The app also allows you to customize your receiver's home screen, including adding your own background image, and to easily perform OTA Firmware updates.Multiple content optionsGot your own music or video library? Load your files onto a USB drive for easy playback through this receiver's USB port, including high-res WAV and FLAC files. If you're looking for radio content that stays with you as you travel, add a SiriusXM tuner (not included) to this Pioneer to enjoy satellite radio's deep programming from coast to coast. The DMH-WT3800NEX also includes a sensitive AM/FM tuner to catch all your local stations.

Dial in your sound

Use the 13-band graphic equalizer and other sound tools to maximize the audio signal of the powerful built-in MOSFET amplifier. And the Sound Retriever applies an algorithm to audio files such as MP3s to enhance the sound of compressed audio files.

If you want more power, three sets of preamp outputs deliver an ultra-clean signal to external amps. For a sophisticated 3-way system, you can switch the front, rear, and subwoofer outputs to 3-way mode with separate outputs for Lows, Mids, and Highs.

Add a rear-view camera with selectable parking lines

With two camera inputs, you can also install front- and rear-view cameras and use the receiver's built-in parking guides to back up safely in any crowded lot. The touchscreen lets you adjust parking lines with ease.

iDatalink Maestro lets you keep your factory extras

Pioneer offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to the Shopping Cart if it's compatible.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities.

Smartphone note: If you're going to use your smartphone with this receiver, be sure to check "Details" for compatibility information.

You'll need a wired connection to your parking brake to access settings and other features on this receiver. Your parking brake must be connected and set in order to view video on its screen.

Product highlights:

digital multimedia player with AM/FM tuner (does not play discs)

9" floating capacitive HD touchscreen display

multi-color button illumination

chassis fits single-DIN dash openings

plays media loaded with MP3, WMA, AAC, WAV, and high-res FLAC and DSD music files

built-in Bluetooth for hands-free calling and music streaming

built-in wi-fi with hotspot functionality

Smartphone Features:

Android Auto and Apple CarPlay compatible (wired or wireless)

Pioneer WebLink built in

Amazon Alexa built-in (with Pioneer Vozsis app)

display and command of select music, navigation, and other apps with iPhone and Android

Pandora and Spotify available through Apple CarPlay, Android Auto, and Alexa

Audio Features:

13-band graphic EQ

time alignment

low-pass, high-pass and band-pass filters

3-way mode for external amplifiers

Expandability:

compatible with SiriusXM satellite radio tuner

inputs: 3.5mm audio/video AUX in, USB IN, 2x camera inputs, wired remote

outputs: 6-channel preamp outputs (4-volt front, rear, sub), RCA video output

Other Information:

Important Note — Monitor dimensions are 9.215" x 5.36". Before ordering, check for possible interference with your dash.

wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

built-in amplifier (50 watts peak x 4 channels)

compatible with most factory steering wheel audio controls (adapter required)

works with iDataLink Maestro module

retains factory features in a wide selection of vehicles

displays engine performance and other vehicle data on touchscreen

dimensions:

screen: 9.215"W x 5.36"H x 0.53"D

chassis: 6.93"W x 1.97"H x 6.0"D

warranty: 1 year

MFR # DMH-WT3800NEX

What's in the box:

Touchscreen monitor (rear cover pre-installed)

Source unit (10A fuse)

Wiring harness

Preout/AV harness

58" USB extension cable

Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)

GPS antenna (attached 11.5' cable)

Self-adhesive square

3 Self-adhesive clips

Two-sided tape

Monitor bracket

Monitor spacer

Front bracket

6 Pan-head ISO screws (M5 x 9mm)

6 Flat-head ISO screws (M5 x 9mm)

4 Binding head screws (M4x12mm)

4 Binding head screws (4mm x 6mm)

4 Monitor cover screws (M2x4mm)

Quick Start Guide

Warranty Information

What's in the box:

Touchscreen monitor (rear cover pre-installed)

Source unit (10A fuse)

Wiring harness

Pre Out /AV harness

58" USB extension cable

Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)

GPS antenna (attached 11.5' cable)

Self-adhesive square

3 Self-adhesive clips

Two-sided tape

Monitor bracket

Monitor spacer

Front bracket

6 Pan-head ISO screws (M5 x 9mm)

6 Flat-head ISO screws (M5 x 9mm)

4 Binding head screws (M4x12mm)

4 Binding head screws (4mm x 6mm)

4 Monitor cover screws (M2x4mm)

Quick Start Guide

Warranty Information

SiriusXM SXV300V1 Tuner

Enjoy SiriusXM satellite radio with your compatible aftermarket or factory radio (subscription sold separately by SiriusXM)

Enjoy the drive with SiriusXM

With SiriusXM's compact SXV300V1 tuner, you can liven up your daily drive with your favorite satellite radio programming. Small enough to fit neatly behind your car's dash, the SXV300V1 plugs into your SiriusXM-Ready™ car stereo without the need for any additional cables or interfaces. You can also connect this tuner to select factory radios with the help of a Vais Technology adapter. This complete package includes the hideaway satellite radio tuner, plus an installation guide and an exterior antenna that attaches with a powerful magnetic base.

This latest and greatest (so far) SiriusXM tuner gives you all the features you're used to, plus some very cool new ones. With the SXV300V1 and a growing list of new SiriusXM-Ready car stereos, you can create a daily programming package that's uniquely yours.

The SXV300V1 will plug into aftermarket in-dash receivers that have a "SiriusXM-Ready" logo. It will also connect to select factory radios with a Vais Technology adapter (not included). You'll also need an XM or SiriusXM subscription.  Satellite radio service is available only within the lower 48 states — not available in Hawaii or U.S. territories. Limited service is available in Alaska.

New features with select car stereos

With select car stereos (see note below), you can access some great new SiriusXM features. Want to take some of the hassle out of your commute? The Traffic & Weather Now feature can access the latest info whenever you want to hear it. If you're a sports fan, SportsFlash™ will notify you when a big play happens during a game involving one of your favorite sports teams. And if you're a music lover, TuneMix™ plays a unique blend of songs chosen from your favorite music channels on the SiriusXM Preset Band. You can even skip songs you don't want to hear.

If you have an older SiriusXM-compatible receiver, you won't get the features above, but you'll still get all the SiriusXM music, entertainment, news, and sports programming you love, plus familiar features like Replay and iTunes® song tagging. With the SXV300V1, you can even set Song/Artist/Game alerts, so you'll always know when your favorite tunes or teams are playing on another channel. And you'll be able to enjoy those new features when you upgrade your receiver. Either way, SiriusXM's vast lineup of music, sports, news, and more will make your daily drive a whole lot more entertaining.

More channels for more choices

Depending on your subscription package, you'll also be able to enjoy SiriusXM's Xtra Channels with the SXV300V1, giving you access to over 20 new music, sports, entertainment, plus SiriusXM Latino, a collection of dedicated Spanish-language channels.

Important Note: Your receiver MUST have the "SiriusXM-Ready" logo — this adapter is not compatible with receivers that have "SAT Radio Ready", "Sirius Ready DC", or "XM Ready" logos. To access Traffic and Weather Now, SportsFlash, and TuneMix, your receiver must be a new model that supports the latest SiriusXM features.

Product highlights:

SiriusXM vehicle connection package includes hideaway tuner and magnetic antenna

works only with in-dash receivers with the SiriusXM-Ready logo

enjoy SiriusXM advanced features like TuneMix and SportsFlash with select new compatible car stereos

pause, rewind, and replay up to 60 minutes of live satellite radio broadcasts

get game, song, and artist alerts

iTunes tagging with iPod connected

enjoy SiriusXM Xtra Channels (depending on your subscription package)

tuner dimensions: 2-1/16"W x 3/4"H x 3-13/16"D

What's in the box:

SiriusXM Connect vehicle tuner (w/ attached 25" cable terminated by a proprietary connector)

SiriusXM antenna (w/ attached 23' cable terminated by a right-angle SMB connector)

Alcohol Prep Pad

Installation Guide
