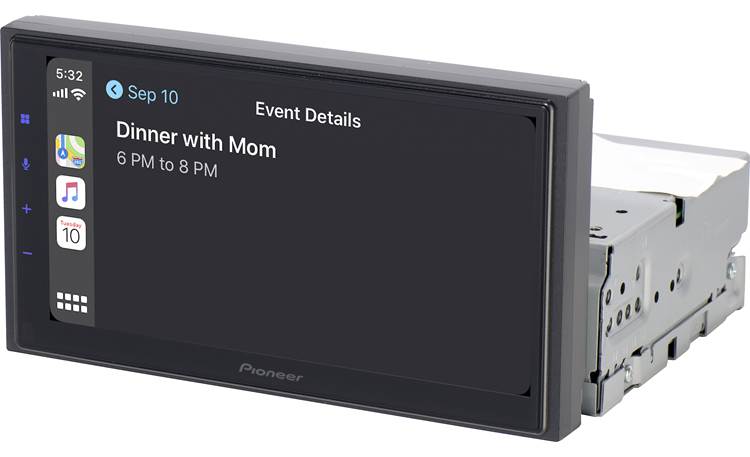

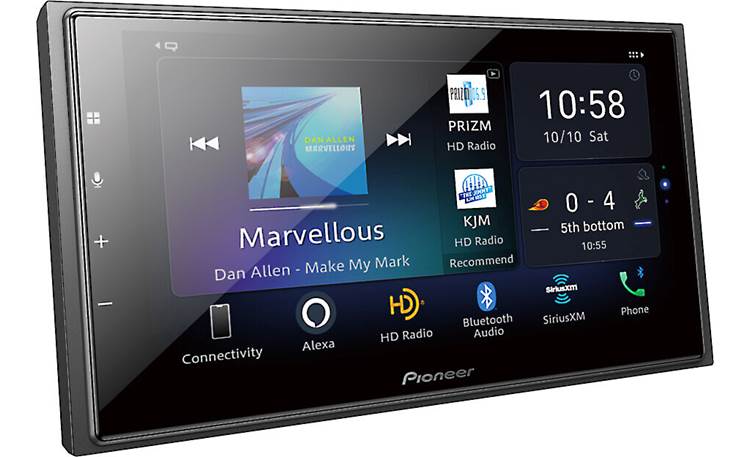

Pioneer DMH-WC5700NEX Digital multimedia receiver (does not play discs)

Product highlights:

Featured in our article: Best car stereos for 2024
General Features:
digital multimedia player with AM/FM tuner (does not play discs)

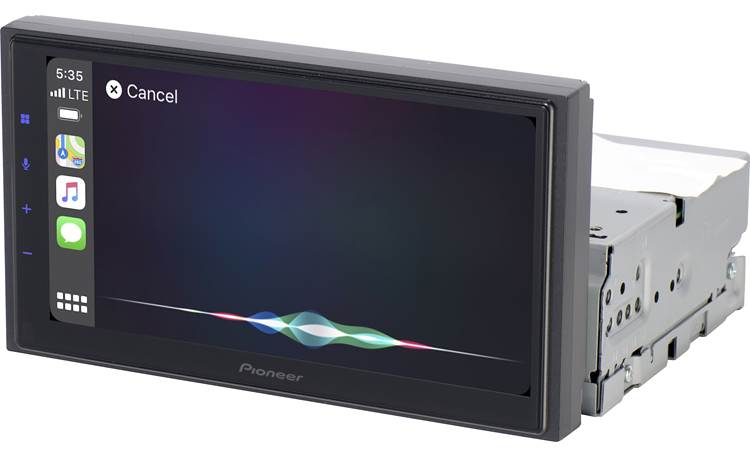

touchscreen and separate DIN (2" tall) chassiscan be installed together or independently
fits problem vehicles where standard radios won't fit

plays media loaded with MP3, WMA, AAC, and high-res FLAC, WAV, and DSD music files

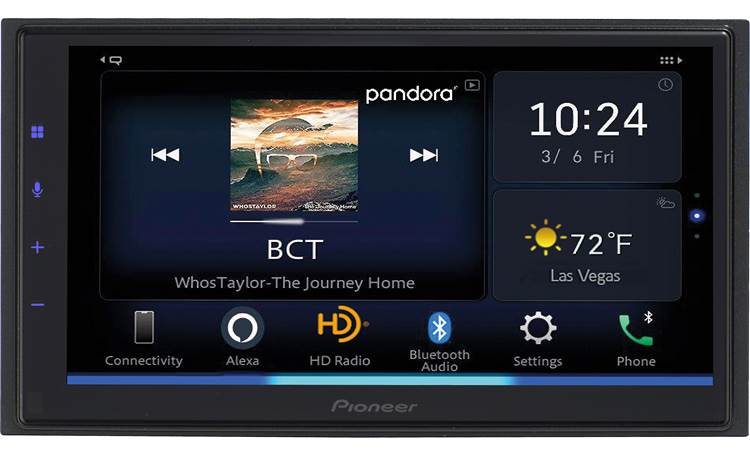

6.78" capacitive touchscreen display
built-in Bluetooth for hands-free calling and music streaming
built-in HD Radio tuner
Smartphone Features:

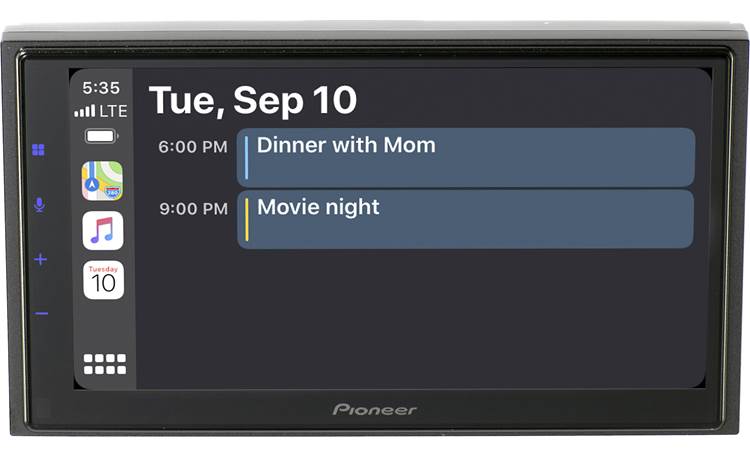

Android Auto and Apple CarPlay compatible (wireless or wired)
built-in Amazon Alexa with Wi-Fi connection
display and command of select music, navigation, and other apps with iPhone and Android
Pandora and Spotify through Apple CarPlay, Android Auto, and Amazon Alexa
Siri Eyes Free control for select iPhones
wired screen-mirroring for select devices
Audio/Visual Features:
13-band graphic EQ
time alignment
Expandability:
compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
inputs: rear USB-C port, rear-view camera input, two rear A/V inputs (3.5mm and RCA RCA can be converted to a 2nd camera input), HDMI input
outputs: video output, 6-channel preamp outputs (4-volt front, rear, sub)
Other Information:
Important Note Monitor dimensions are 7.005 x 3.945". Before ordering, check for possible interference with your dash.
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
compatible with most factory steering wheel audio controls (adapter required)
works with iDataLink Maestro moduleretains factory features in a wide selection of vehicles
displays engine performance and other vehicle data on touchscreen

wireless remote included (optional wired remote)
optional touchscreen/chassis extension cables
MFR # DMH-WC5700NEX


What's in the box:
Pioneer DMH-WC5700NEX owner's manual
Touchscreen monitor
Chassis body (10A fuse)
Wiring harness
Preout/AV harness
58" USB-C extension cable
USB-C to USB-A adapter
Remote control (CXE5116)
CR2025 3V battery (pre-installed in remote)
Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
GPS antenna (attached 11.5' cable)
Self-adhesive square
3 Self-adhesive clips
Two-sided tape
2 Mounting brackets
6 Pan-head ISO screws (M5 x 9mm)
6 Counter-sunk ISO screws (M5 x 9mm)
8 Pan-head screws (M4 x 5mm)
Quick Start Guide
Installation Manual
Warranty Information
"Caution" note
