Pioneer AVH-3500NEX DVD receiver

Product highlights:

General Features:
DVD/CD receiver

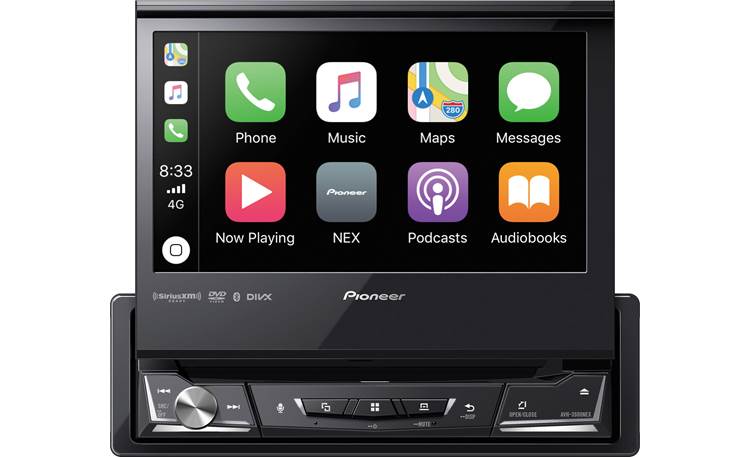

7" motorized fold-out touchscreen
Bluetooth hands-free calling and audio streaming
customizable touchscreen interface
5 display colors, 112 key color options
Smartphone Features (see Details for info on compatibility with specific smartphones and apps):
Apple CarPlay and Android Auto compatible
WebLink for access and display of YouTube and other iPhone and Android phone apps
control Apple and Android devices through USB
Siri Hands Free and Google VR with compatible phones
Pandora and Spotify control with iPhone and Android
Audio/video Features:
plays audio/video content from CDs, DVDs, and USB memory devices (see Details tab for full capabilities)
plays high-res FLAC audio files (up to 192kHz/24-bit) from flash media
13-band graphic equalizer with 7 preset EQ curves
high- and low-pass filters
Advanced Sound Retriever
Auto-EQ equalizes for your car interior automatically (optional mic required)
Expandability:
compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

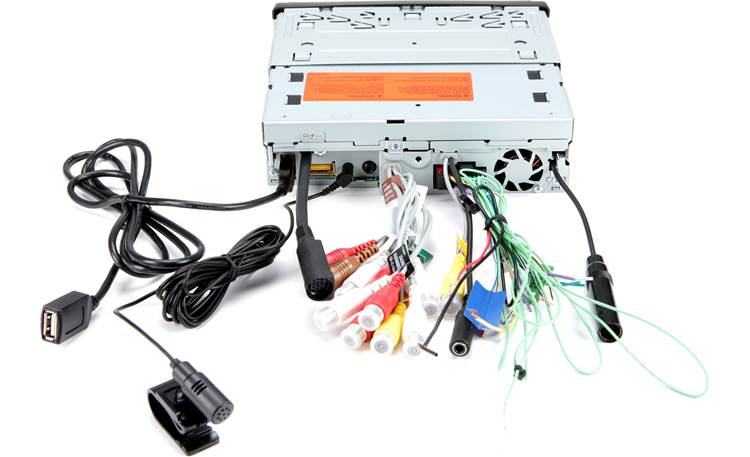

inputs: rear USB port, rear audio/video input (minijack), rear-view camera input
outputs: video output, 6-channel preamp outputs (4-volt front, rear, subwoofer)
Other Information:
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in amp (14 watts RMS CTA-2006/50 peak x 4 channels)
CTA-2006 compliant
compatible with most factory steering wheel audio controls (adapter required)
fits single-DIN dash openings
remote control
MFR # AVH-3500NEX


What's in the box:
Pioneer AVH-3500NEX owner's manual

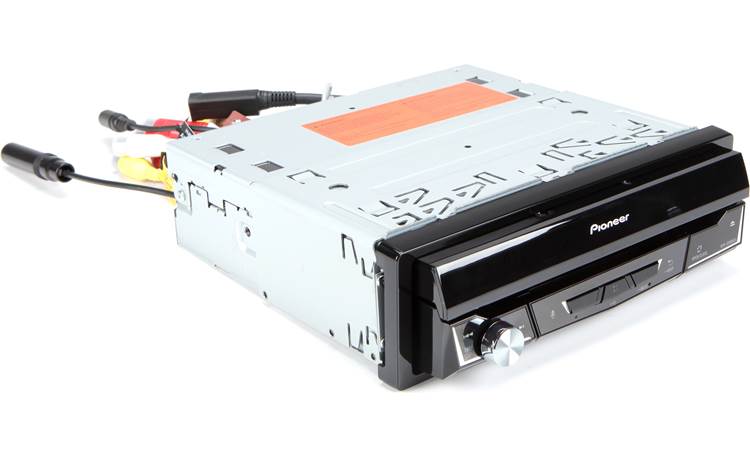

DVD receiver w/ motorized-retractable 6.94" touchscreen monitor (10A fuse inserted in chassis)
Trim-ring (attached)
Sleeve (installed w/ 4 screws)
Wiring harness
Remote control (CXE5116)
CR2025 3V lithium battery (installed in remote)
58" USB extension cable
Microphone w/ visor-bracket (attached 13' cable terminated by a right-angled 2.5mm connector)
Two-sided tape
Four M5x9mm pan-head screws
Four M4x3mm pan-head screws
Two M5x3mm counter-sunk screws
Installation Manual
Quick Start Guide
Warranty Sheet
