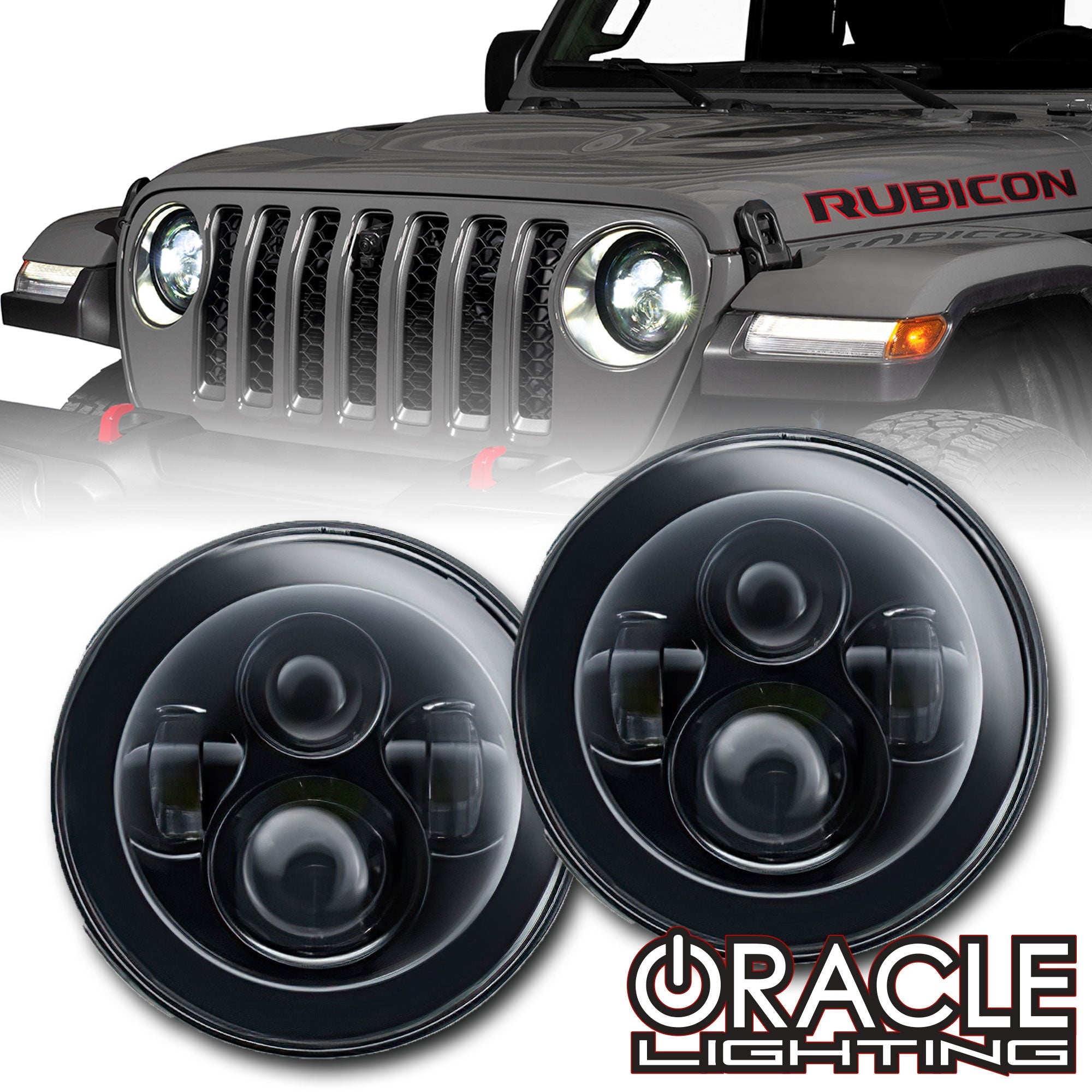

Oracle Lighting 5769-334 - 7" High Powered LED Headlights (Pair) - Black Bezel - ColorSHIFT - w/No Controller

The Ultimate LED replacement headlight option for any vehicle with 7 Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 Plug and Play connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization!

Latest Product Improvements

Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.

NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues.

Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.

Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.

Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.

LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.

To fit these Lights to JL Wrangler or JT Gladiator you will need

Product Features: (Per Light)
- Low Beam Wattage: 30W Normal/36W Max
- Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
- High Beam Wattage: 40W Normal/48W Max
- High Beam Lumens: 3600 Lumens/4800 Raw Lumens
- Color Temperature: 6000K (Cool White Color)
- Input Voltage of Light: 12-24V DC
- Input Voltage of Halo (If Included): 12V DC
- Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
- Optional: ORACLE Halo Rings Pre-Installed
- Premium Performance Phillips Luxeon ZES LEDs
- Die-Cast Housing with Corrosion Resistant Coating
- Heavy Duty Solid State Electronics
- Hard-coated Polycarbonate Lens
- Wide Beam Pattern with Sharp Cut-Off Line
- Easy Plug & Play Installation
- DOT and SAE Certified
- 2 year

We Recommend Matching Fog Lights

In the Box:
- (2) ORACLE Lighting 7" High Powered LED Headlights with Black Bezel
- H4/H13 Connectors

Wiring for Halos:
Red Wire is (+) the positive wire
Black Wire is (-) the negative wire

For Halo Colors White and Amber (Road Legal Colors) we recommend:
Connecting wires to the Parking Light Harness
Connecting wires to Ignition Power

For other Single Colors (Non Road Legal Colors) we recommend:
Connecting Wires to a Toggle Switch Connecting Wires to a ControllerFor ColorSHIFT Halos:
Connect wires directly to the ColorSHIFT Controller you purchased
