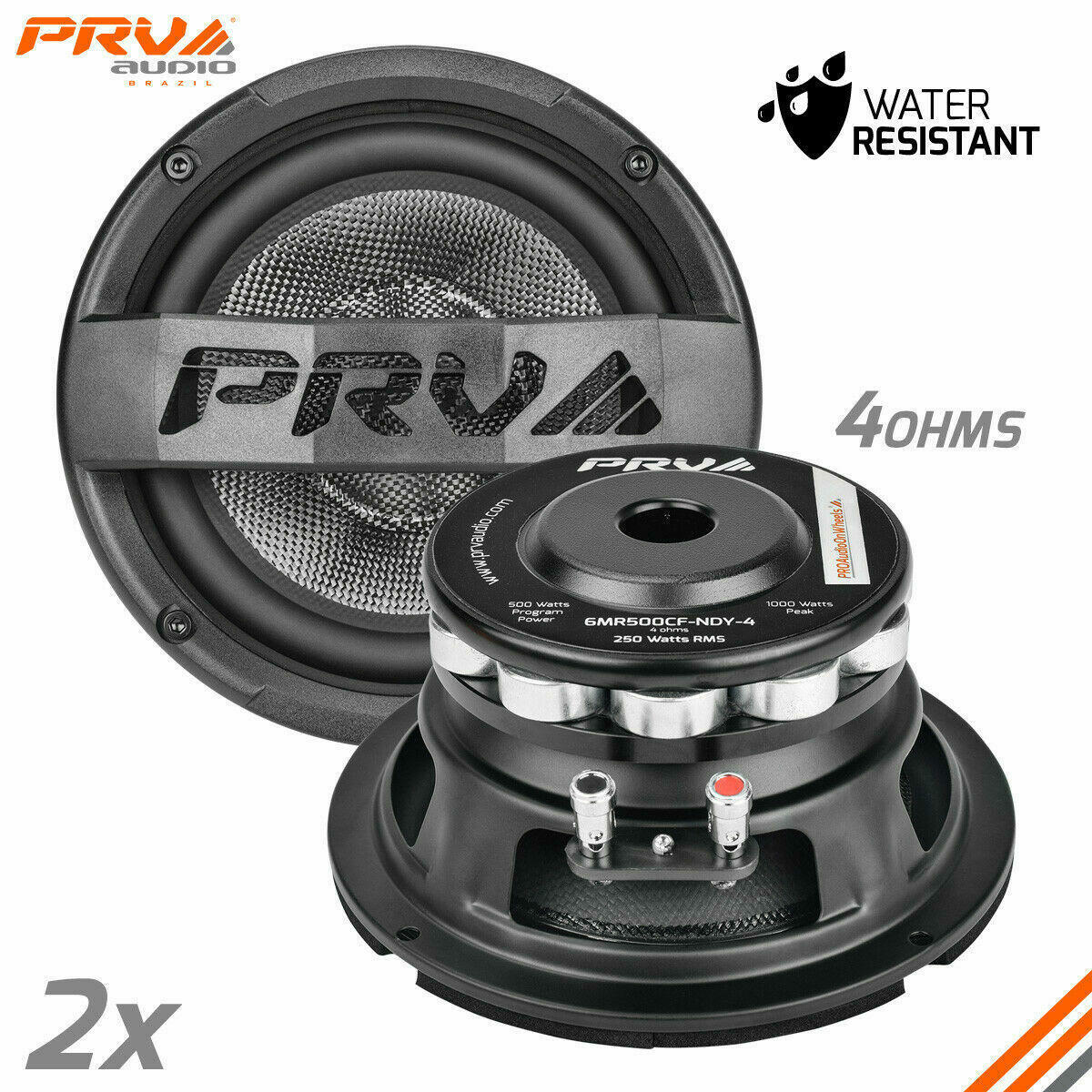

One Pair PRV Audio 6MR500CF-NDY-4 6" Midrange Neodymium Speaker New Pair 4 Ohm

Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, PRV Audio's 6MR500CF-NDY 6" carbon fiber midrange speaker sets the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and powerful neodymium motor assembly, this driver produces natural sound with remarkably low distortion.

<p style="box-sizing: border-box; margin: 18px 0px 0px; padding: 0px; border: 0px; font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" line-height:="" 1.6;="" letter-spacing:="" 0px;="" background-color:="" rgb(255,="" 255,="" 255);"="">The tailored response of the 6MR500CF-NDY-4 comes from its exotic, yet supremely engineered, carbon fiber cone which delivers the signature PRV Audio combination of depth and accuracy on vocal reproduction. Beyond good looks, this cone is extremely light, surprisingly rigid, and provides excellent damping to keep narrow peaks under control, resulting in an incredibly natural yet accurate sound. A rubber surround and large flat spider suspend the cone and keep it linear through the limits of excursion with minimal restriction, further improving dynamics and transients. The suspension design of this midrange features the single layer spider which connects to the coil former with premium stitched lead wires.<p style="box-sizing: border-box; margin: 18px 0px 0px; padding: 0px; border: 0px; font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" line-height:="" 1.6;="" letter-spacing:="" 0px;="" background-color:="" rgb(255,="" 255,="" 255);"="">The cone is coupled to a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling. Driving the coil is a magnet that consists of high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field. The bumped back plate, vented magnet system, vented pole piece, and high-temperature voice coil allow for high power handling while protecting this driver from extreme transient power peaks.<p style="box-sizing: border-box; margin: 18px 0px 0px; padding: 0px; border: 0px; font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" line-height:="" 1.6;="" letter-spacing:="" 0px;="" background-color:="" rgb(255,="" 255,="" 255);"="">You can expect excellent off-axis and transient response from this water-resistant midrange for a great sound stage and realistic sound reproduction.<p style="box-sizing: border-box; margin: 18px 0px 0px; padding: 0px; border: 0px; font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" line-height:="" 1.6;="" letter-spacing:="" 0px;="" background-color:="" rgb(255,="" 255,="" 255);"="">Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s 6MR500CF-NDY-4 neodymium-powered carbon fiber midrange features a sensitivity of 96 dB (2.83V/1m) and weighs only 3.85 pounds. As always, PRV Audio is dedicated to delivering outstanding pro audio performance to fit all of your motorsports application.<p style="box-sizing: border-box; margin: 18px 0px 0px; padding: 0px; border: 0px; font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" line-height:="" 1.6;="" letter-spacing:="" 0px;="" background-color:="" rgb(255,="" 255,="" 255);"="">Note: The 6MR500CF-NDY-4 is only sold in pairs. Grills and mounting hardware is included.<p style="box-sizing: border-box; margin: 18px 0px 0px; padding: 0px; border: 0px; font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" line-height:="" 1.6;="" letter-spacing:="" 0px;="" background-color:="" rgb(255,="" 255,="" 255);"=""><table class="product-information-specifications-table" style="border-collapse: collapse; border-spacing: 0px; background-color: rgb(255, 255, 255); width: 1371.11px; color: rgb(0, 0, 0); font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" letter-spacing:="" -0.15px;"="">

Product Details

BrandPRV AudioModel6MR500CF-NDY-4Part Number294-3139UPC619620087577Unit of MeasurePairsWeight9.2<table class="product-information-specifications-table" style="border-collapse: collapse; border-spacing: 0px; background-color: rgb(255, 255, 255); width: 1371.11px; margin-top: 14px; color: rgb(0, 0, 0); font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" letter-spacing:="" -0.15px;"="">

Product Specifications

Nominal Diameter6"Bolt Circle Diameter6.25Moving Mass Of Diaphragm (Mmd)16.49Power Handling (RMS)250 WattsPower Handling (MAX)500 WattsImpedance4ΩFrequency Response95 to 11,000HzSensitivity96dB 2.83V/1mVoice Coil Diameter2"<table class="product-information-specifications-table" style="border-collapse: collapse; border-spacing: 0px; background-color: rgb(255, 255, 255); width: 1371.11px; margin-top: 14px; color: rgb(0, 0, 0); font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" letter-spacing:="" -0.15px;"="">

Thiele-Small Parameters

Resonant Frequency (Fs)92.5HzDC Resistance (Re)3.5ΩVoice Coil Inductance (Le)0.185mHMechanical Q (Qms)12.85Electromagnetic Q (Qes)0.29Total Q (Qts)0.28Compliance Equivalent Volume (Vas)0.18ft³Mechanical Compliance of Suspension (Cms)0.179mm/NBL Product (BL)10.73T·mMaximum Linear Excursion (Xmax)3.25mmSurface Area of Cone (Sd)143cm²<table class="product-information-specifications-table" style="border-collapse: collapse; border-spacing: 0px; background-color: rgb(255, 255, 255); width: 1371.11px; margin-top: 14px; color: rgb(0, 0, 0); font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" letter-spacing:="" -0.15px;"="">

Materials of Construction

Cone MaterialCarbon FiberSurround MaterialRubberVoice Coil Wire MaterialCCAVoice Coil FormerKapton® / PolyimideBasket / Frame MaterialSteelMagnet MaterialNeodymium<table class="product-information-specifications-table" style="border-collapse: collapse; border-spacing: 0px; background-color: rgb(255, 255, 255); width: 1371.11px; margin-top: 14px; color: rgb(0, 0, 0); font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" letter-spacing:="" -0.15px;"="">

Mounting Information

Overall Outside Diameter6.55"Baffle Cutout Diameter5.72"Depth2.91"# Mounting Holes4<p style="box-sizing: border-box; margin: 18px 0px 0px; padding: 0px; border: 0px; font-family: " open="" sans",="" "helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 13px;="" line-height:="" 1.6;="" letter-spacing:="" 0px;="" background-color:="" rgb(255,="" 255,="" 255);"="">
