METRA - Honda Civic (Excluding LX models) 2016-2021 (99-7821B)

Metra 99-7821B Dash and Wiring Kit

Install a new car stereo and retain steering wheel and climate controls in select 2016-21 Honda Civic vehicles — single- or double-DIN radios (Black)

About the Metra 99-7821B Dash and Wiring Kit

Keep your factory features with a new radio

Metra's 99-7821B dash and wiring kit gives you what you need to install an aftermarket single-DIN (2") or double-DIN (4") receiver in select 2016-21 Honda Civic vehicles. The kit features a 4.3" touchscreen display for climate controls and personalization features, and it includes an Axxess interface that allows you to retain your vehicle's steering wheel audio controls, factory backup and Honda LaneWatch™ cameras, as well as your retained accessory power (RAP). This kit works with amplified and non-amplified systems; factory amplifier retention requires the Axxess AXSP-HN module (sold separately).

The interface also provides the outputs (parking brake, reverse, and speed sense) you'll need to install a navigation receiver. The kit includes a dash pocket for use with single-DIN receivers. The dash panel's painted scratch-resistant matte black finish matches your factory dash. Note: this kit will not work with Civic LX models.

Product highlights:

includes 4.3" touchscreen for climate control and personalization features

retains steering wheel audio controls

retains factory backup camera and Honda LaneWatch camera

provides navigation outputs (parking brake, reverse, and speed sense)

provides accessory power (12-volt 10-amp)

works with amplified and non-amplified systems

factory amplifier retention requires Axxess AXSP-HN module (sold separately)

updatable via Micro B USB input

warranty: 1 year

MFR # 99-7821B

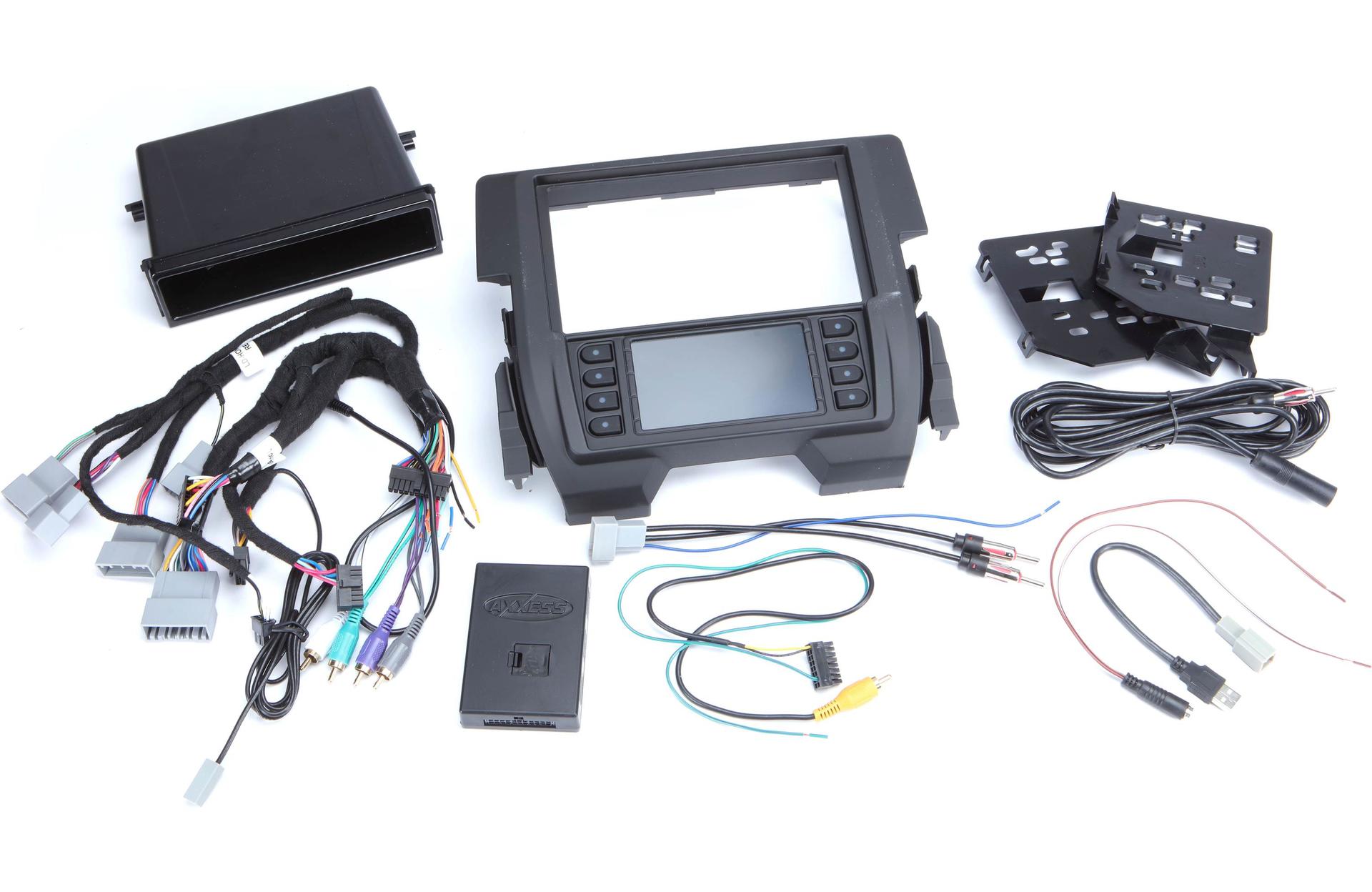

What's in the box:

Radio housing with integrated touchscreen

Radio replacement interface module

Vehicle/Interface harness (LD-HONTOUCH)

Camera harness

Antenna adapter (40-HD12)

Antenna extension cable (44-EC144)

SWC harness (LD-SWC-F3.5)

USB harness (AXUSB-TY4)

2 Brackets

Pocket

4 Screws

8 Panel-clips
