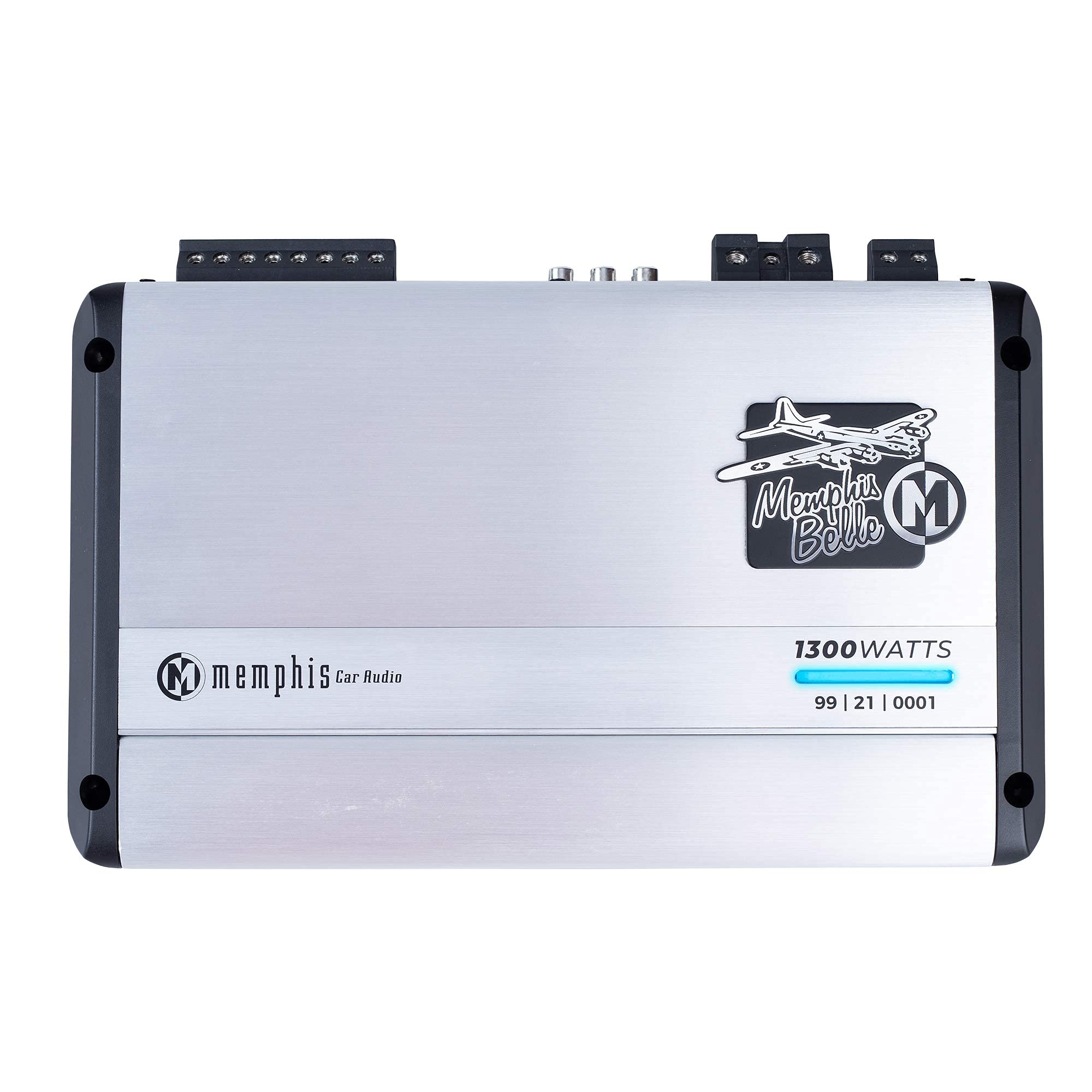

Memphis VIVBELLE 5-Channel Viv Belle Amplifier

Memphis VIVBELLE 5-Channel Viv Belle Amplifier

The folks at Memphis Audio tip their hat to the greatest generation and their own proud heritage with this amp. Sporting a special Memphis Belle B-17 logo, the SixFive Series VIVBELLE five-channel amp drops the bomb with 75 watts RMS to each of your front and rear full-range speakers, plus up to 900 watts RMS to a subwoofer. In addition, this versatile amp features onboard digital signal processing — including high-pass, low-pass, and bandpass filtering — that give you outstanding versatility. And speaking of versatile, you can change the color of the illuminated logo — select one of the seven available colors to match your mood, whim, or vehicle's interior.

Product highlights:

• 5-channel car amplifier
• 75 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
• 125 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
• 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
• max power configuration: 75 watts RMS x 2 at 4 ohms + 125 watts RMS x 2 at 2 ohms + 900 watts RMS x 1 at 1 ohm
• Class D amp technology
• brushed anodized aluminum finish
• 7 color selectable LED logo

Tuning Controls:

• front channels:
• variable high- or low pass filter (10-5,000 Hz, 24 dB/octave)
• rear channels:
• variable high-pass filter (10-500 Hz, 24 dB/octave)
• variable low-pass filter (50-5,000 Hz, 24 dB/octave)
• bandpass filter engages both
• subwoofer channel:
• variable subsonic filter (10-80 Hz, 24 dB/octave)
• variable low-pass filter (50-500 Hz, 24 dB/octave)
• variable bass boost (0-18 dB at 45 Hz)

Other Features:

• optional wireless remote subwoofer level control available
• preamp inputs
• speaker-level inputs (require speaker wire to RCA adapters)
• hinged magnetic cover plate conceals top-mounted controls
• 7 color selectable LED logo
• 4-gauge power and ground leads and a 80-amp fuse recommended — wiring and hardware not included with amplifier
• no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and this amplifier is recommended
• dimensions: 12-11/16"W x 2-7/16"H x 8-1/4"D
• MFR # VIVBELLE-LIMITED EDITION

What's in the box:

• 5-Channel amplifier
• Six 10" speaker wire to RCA adapters
• Four 2" screws
• 4 Flat washers
• 2.5mm Allen key
• Instruction manual
• Memphis Power Certificate
