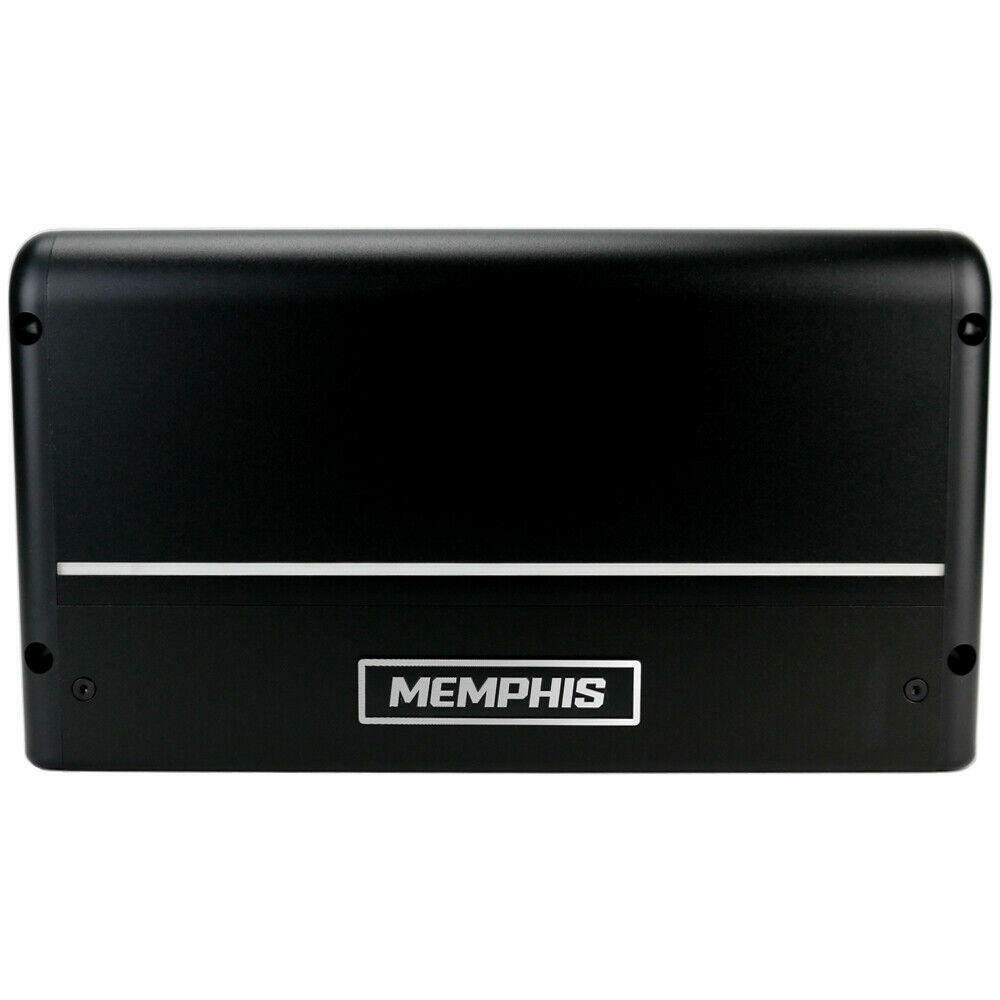

Memphis PRX800.5V 800W RMS Power Reference Series Class-D 5-Channel Amplifier with Bass Remote

Memphis PRX800.5V 800W RMS Power Reference Series Class-D 5-Channel Amplifier with Bass Remote

Product Details:

• Class D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 70 watts x 4 channel + 200 watts x 1 channel
• 2 ohms: 100 watts x 4 channel + 400 watts x 1 channel
• Bridged: 200 watts x 2 channel @ 4 ohms + 400 watts x 1 channel @ 2 ohms
• Total power output: 800 watts
• Pulse Width Modulated MOSFET power supply
• LED Power/Protect Light
• Platinum plated connectors
• Fully variable high & low Pass crossovers
• Protection circuitry
• Extruded aluminum heatsink
• Top mounted controls
• Wired remote bass level control included
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 200mV - 6 volts
• Frequency Response: 10 - 36,000 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 80 dB
• Variable high-pass filter: 50 - 1000 Hz
• Variable low-pass filter: 50 - 250 Hz
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 13.07" W x 7.28" L x 2" H
