MB Quart RS1-216 Reference Series 6.5" Component Speaker System
MB Quart RS1-216 Reference Series 6.5" Component Speaker System
Couldn't load pickup availability
MB Quart RS1-216 Reference Series 6.5" Component Speaker System

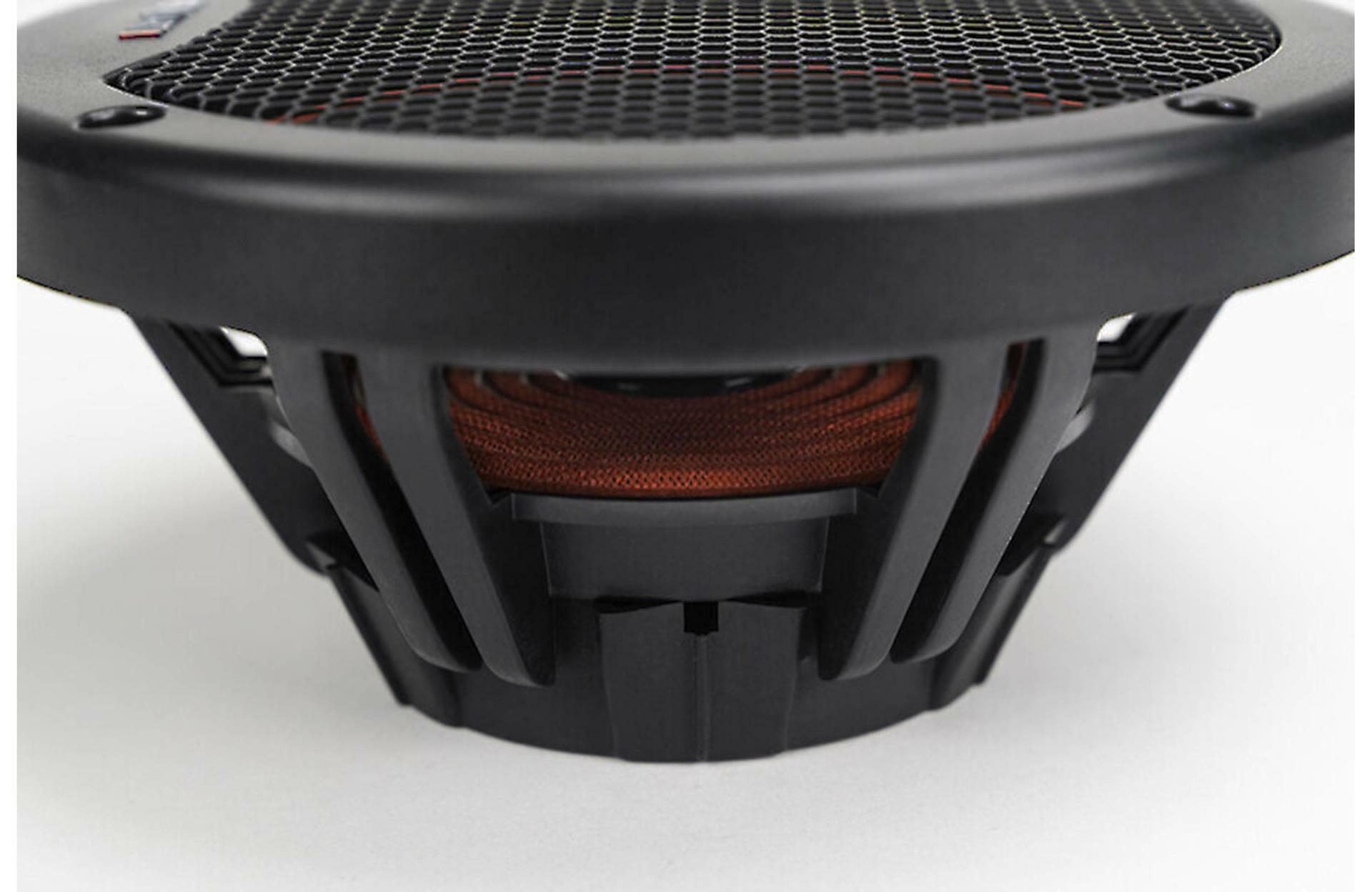

MB Quart's rich history as a German audio pioneer shines through with their Reference Series car speakers. The MB Quart RS1-216 6-1/2" component system features two quality woofers, two 3/4" tweeters, and two external crossovers. An extremely lightweight pulp/bamboo hybrid woofer cone delivers the lower and midrange frequencies with accuracy. MB Quart complements that natural, rich sound with precise high notes from the 3/4" titanium dome tweeters. Additionally, WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.
Grilles included
If you're doing a custom installation, MB Quart includes grilles that show off the red-line flair of the woofers.
Product highlights:
- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6-1/2" pulp/bamboo woofer cone with butyl rubber surround
- 3/4" titanium dome tweeter
- external crossover network
- special-design frame virtually eliminates resonance
- handles up to 55 watts RMS (110 watts peak power)
- frequency range: 58-20,000 Hz
- sensitivity: 87.7 dB
- woofer top-mount depth: 2-1/2"
- impedance: 4 ohms
- grilles included
- warranty: 1 year
- MFR # RS1-216
What's in the box:
- 2 Woofers
- 2 Tweeters (each has a 38" wire attached)
- 2 Crossovers
- 2 Woofer grilles
- 2 Flush-mount trim rings (Tweeter)
- 2 Surface-mount covers (Tweeter)
- 2 Flat mounting bases (Tweeter)
- 2 Angled mounting bases (Tweeter)
- 2 Flush-mount clamps (Tweeter)
- 2 Adhesive backed tweeter pads
- Eight 1-1/8" Screws
- Four 1/2" Flat-head screws
- 8 Large speed clips
- 4 Small speed clips
- 2 MB Quart crossover badges
- 2 Adhesive backed hook and loop crossover mounts
- Installation guide
- Templates
- 2 MB Quart stickers
