MB Quart MBQR-STG5-RC-1 17-Up Polaris RZRs w/Ride Command Stage 5 Audio System Four 8" Speakers, 2-Channel Amp, 10" Sub & Mono Amp

MB Quart MBQR-STG5-RC-1 17-Up Polaris RZRs w/Ride Command Stage 5 Audio System Four 8" Speakers, 2-Channel Amp, 10" Sub & Mono Amp

A Polaris RZR with Ride Command is one impressive ride already, but this MB Quart Stage 5 audio kit will take your stereo sound to a whole ‘nother level. With front and rear 8" speakers, a 2-channel amp, a mono sub amp, and a 10" subwoofer, this system will add some serious thump to your off-road adventures.

Ride Command is an amazing bit of technology, but the low-voltage output isn't ideal for great audio. MB Quart worked with the engineers at Polaris to design a system that produces outstanding sound. The system includes two vehicle-specific Ride Command adapters and amplifiers that are specifically designed to work with the Ride Command system.

MB Quart designed this entire package to fit right into your RZR, with no cutting and minimal hassle. It also comes with all the parts and pieces needed for a smooth, hassle-free installation. Each component is tough enough for trail duty, so you won't have to worry about your system getting swamped.

Product highlights:

• designed for 2017-up Polaris RZRs with Ride Command
• all components designed for off-road use
• system includes:
• four 8" speakers with enclosures and a 2-channel amp
• 10" subwoofer with enclosure and mono amp
• two Ride Command adapters, amp brackets, installation parts and wiring

MB Quart NH1-120B 8" marine speakers (2 dash and 2 cage-mount)

• compression horn design for outstanding volume
• power handling up to 90 watts RMS (180 watts peak)
• 1" titanium compression diaphram tweeters
• Santoprene rubber surrounds
• impedance: 4 ohms
• warranty: 1 year

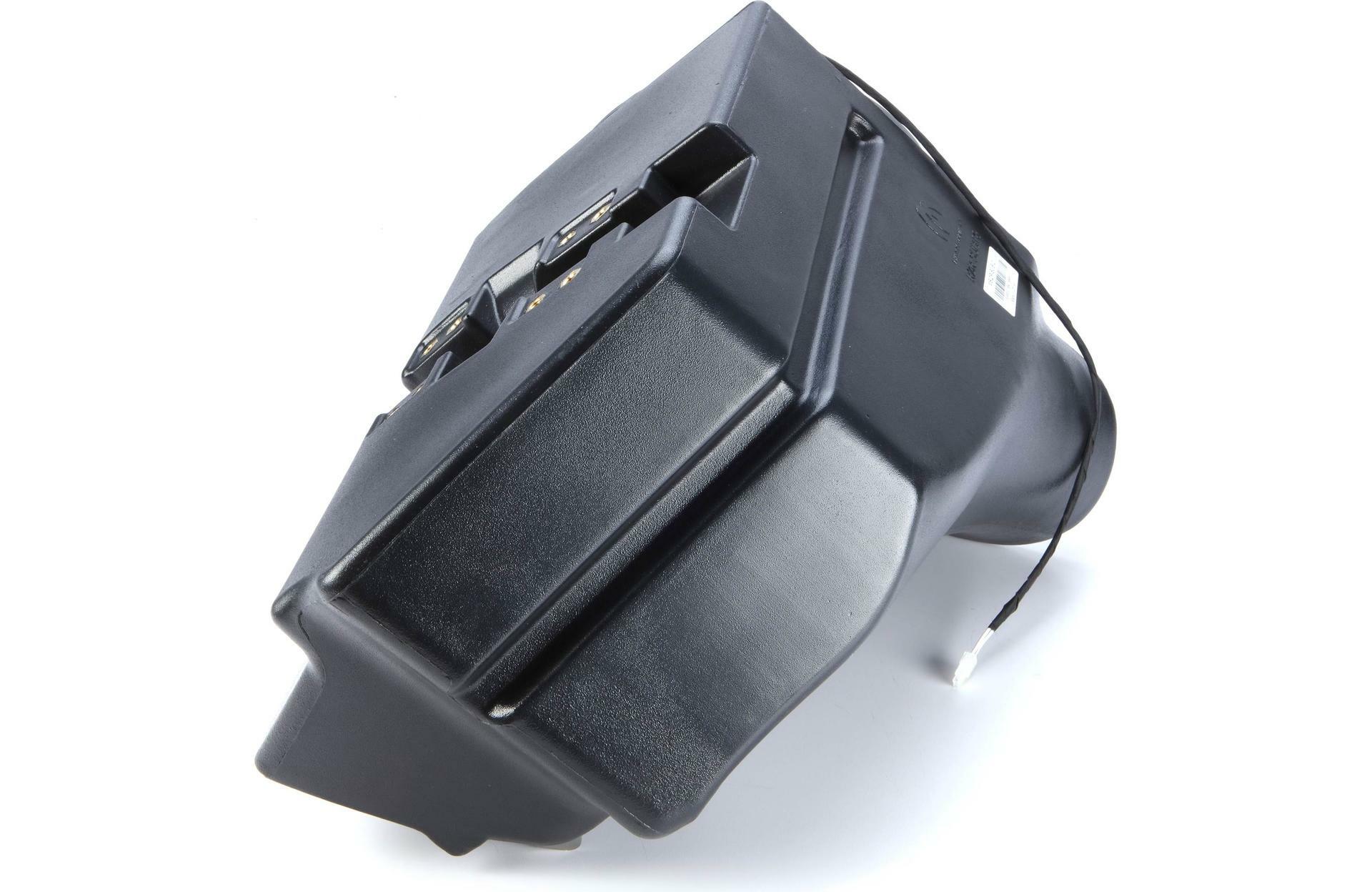

MB Quart 10" marine subwoofer with enclosure

• handles up to 400 watts peak power
• enclosure replaces the glove box
• dual voice coils
• IP67-rated
• warranty: 1 year

MB Quart NA2-400.2RC 2-channel amp

• Class D design
• 200 watts RMS x 2 at 2 ohms (400 watts peak)
• frequency response: 20-20,000 Hz
• low-pass crossover and bass boost
• conformal-coated circuit board — suitable for power sports and marine applications
• warranty: 1 year

MB Quart NA2-400.1 mono subwoofer amp

• Class D design
• frequency response: 10-300 Hz
• power specs: 200 watts x 1 at 4 ohms (400 watts x 1 at 2 ohms)
• electronic crossover
• warranty: 1 year
• MFR # MBQR-STG5-RC-1

What's in the box:

• This package contains 6 individually boxed items along with parts in the main box:
• Main Box:
• Two 8-pin Ride Command Adapter harnesses
• QR Code for installation instructions

MQBR-POD-2:

• 2 Speaker pods pre-loaded with NH1-120B 8" drivers (attached 11" wire harness)
• Four 18mm bolts
• Two 24mm T40 Torx screws
• 4 Flat-washers

NHT1-120BPR:

• 2 Speaker enclosures pre-loaded with NHT1-120PB 8" drivers (attached upper mounting clamp and 7" bare-ended speaker wire)
• 2 Large lower clamps
• 2 Small lower clamps
• 2 Large rubber spacers
• 2 Small rubber spacers
• Eight 25mm hex-socket bolts
• 4 Crimp connectors
• 2 MB Quart adhesive logos

NA2-400.2RC Amplifier:

• 2-Channel amplifier w/ attached 8" power/ground and speaker output harnesses (terminated with Molex plugs)
• 16" Power/ground harness (inline 30A ATC fuse)
• 16" Speaker output harness
• Four 18mm screws
• Quickstart guide

NA2-400.1 Amplifier:

• Mono amplifier (attached 7" 3-pin & 2-pin harnesses)
• 16" Power/ground harness (inline 30A ATC fuse)
• 16" 2-Pin speaker harness
• Four 3/4" screws
• 4 Flat-washers
• 4 Lock-washers
• Remote level control (attached 15.5' cable w/ Molex connector)
• Amplifier installation guide

MBQR-SUB-2:

• Loaded 10" subwoofer enclosure w/ attached 20" wire harness
• 2 Mounting plates
• 2-1/4" Metal support tab
• Eight 3/4" bolts
• 8 Lock-washers

MBQR-ACC-1:

• Single amp mounting plate
• Dual amp mounting plate
• 3' Power harness (inline 50A Maxi fuse)
• 80" Speaker output splitter harness
• 9' Right rear speaker harness
• 9' Left rear speaker harness
• 32" 4-Seat extension harness
• 6-Pin Radio power adapter harness
• Two 2' stereo RCA cables
• Ten 7" wire ties
• Eight 12mm screws
• 8 Flat-washers
• 8 Nylock nuts
