Maestro HRN-RR-MI1 + ADS-MRR T-harness radio replacement for 2008+ Mitsubishi

iDatalink HRN-RR-MI1

Connect a new car stereo and retain steering wheel controls in select 2008-2019 Mitsubishi vehicles

Maestro HRN-RR-MI1 + ADS-MRR T-harness radio replacement for 2008+ MitsubishiiDatalink meets Mitsubishi

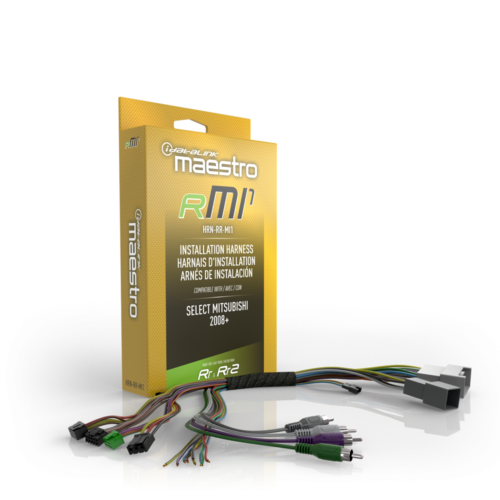

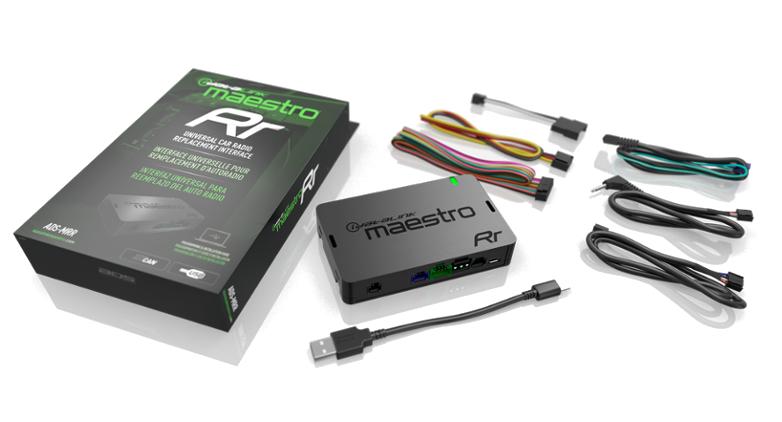

iDatalink's HRN-RR-MI1 wiring adapter allows you to connect a new car stereo in select 2008-19 Mitsubishi vehicles, working in conjunction with iDatalink's Maestro ADS-MRR or Maestro ADS-MRR2 module (sold separately). Once connected, you'll retain the use of your steering wheel audio controls in these vehicles.

The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Keeping your factory cameras and more

If you're installing a car stereo with an iDatalink port, this harness also allows you to retain the backup camera (and front and side cameras if present) in your Mitsubishi vehicle, as long as your receiver has the necessary inputs. In addition, you'll also keep your AUX input, and you'll be able to view engine performance data and other vehicle info on your receiver's screen.

Installation note: The HRN-RR-MI1 adapter must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your vehicle. This adapter works with select 2008-19 Mitsubishi vehicles with amplified and non-amplified systems.

Product highlights:

allows installation of new receiver in select Mitsubishi vehicles (also requires the Maestro RR or RR2 module)

features retained with non-iDatalink-ready car stereos:

steering wheel audio controls

factory amplifier (but no fader or gain control)

features retained with iDatalink-ready car stereos:

fader and gain control with factory amp

factory backup camera and front/side cameras (receiver must have a second camera input)

AUX input

displays engine and vehicle performance data on touchscreen

supplies outputs (parking brake, reverse, and VSS) for NAV receivers

warranty: 1 year

retains steering wheel audio controls

retains factory amp

supplies outputs (parking brake, reverse, and VSS) for NAV receivers

MFR # HRN-RR-MI1

What's in the box:

Mitsubishi installation harness

Factory radio harness

Aux harness

Climate control harness

OBDII harness
