JVC KW-M785BW Digital Media Receiver - 6.8-inch Capacitive Touch Control Monitor

JVC KW-M785BW Digital Media Receiver - 6.8-inch Capacitive Touch Control Monitor

Regular price $499.95 USD
Regular price $550.00 USD Sale price $499.95 USD
Sale Sold out
Shipping calculated at checkout.
View full details

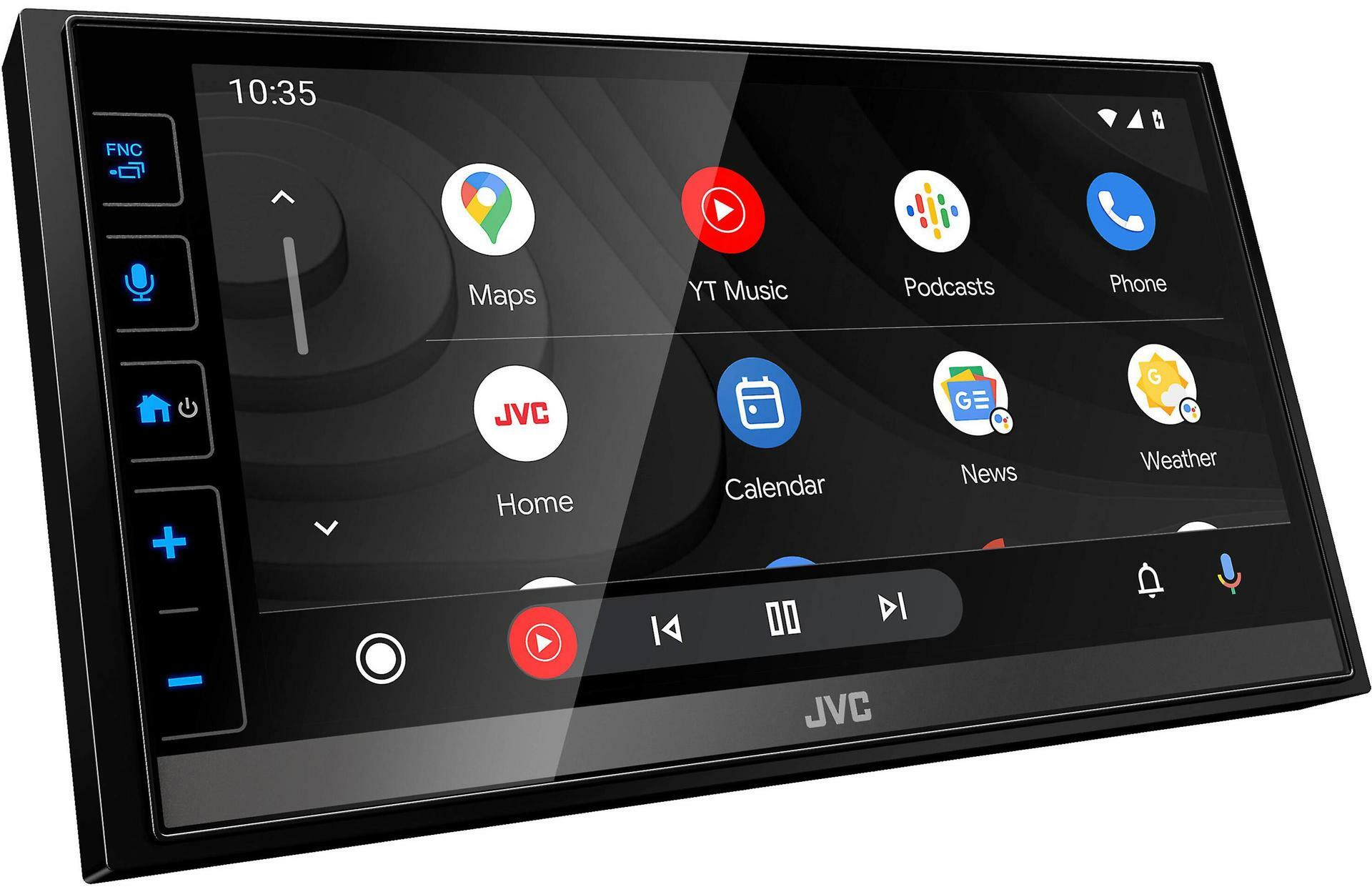

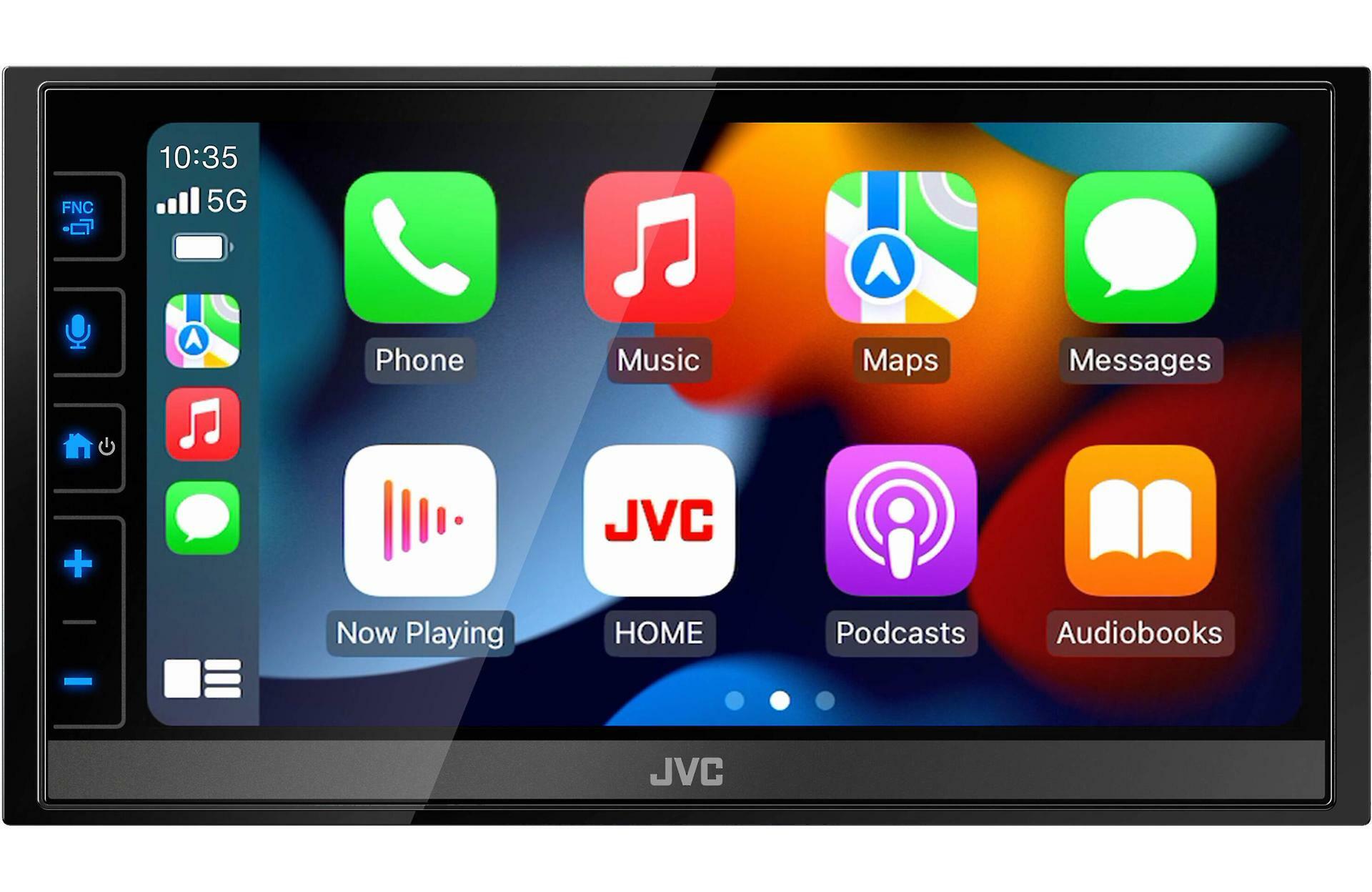

JVC KW-M785BW Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor (6.8" WVGA) / Wireless Apple CarPlay / Wireless Android Auto / USB Mirroring for Android Phones / iDatalink Maestro Ready / HDMI Input / Bluetooth® / 13-Band EQ / Short Chassis


Looking for the latest music and connectivity options in your ride? JVC's KW-M785BW multimedia receiver delivers smartphone integration, cool radio options, and ways to connect more gear, so your drive will be safer and more fun. This receiver's 6.8” touchscreen display makes it easy to control your media, including Apple CarPlay®, Android Auto™, screen mirroring for Android™ phones, Bluetooth®, and high-res music playback. You can also add amplifiers, up to three cameras, and a SiriusXM tuner to complete your vehicle's infotainment system.


General features:

  • digital multimedia player with AM/FM tuner
  • plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
  • 6.8" capacitive touchscreen display
  • Waze-ready with Apple CarPlay or Android Auto
  • electronic viewing angle display adjustment (display does not physically move)
  • fits double-DIN (4" tall) dash openings


Smartphone features:

  • display and command of select music, navigation, and other apps with iPhone and Android
  • wired or wireless Android Auto compatible
    • compatible with Google Assistant voice control when using Android Auto
  • wired or wireless Apple CarPlay compatible
    • Siri Eyes Free voice control for select iPhones
  • wired USB mirroring for select Android devices
  • wired micro HDMI mirroring for select smartphones (cable and adapter sold separately)
  • built-in Bluetooth with dual phone connection for hands-free calling and music streaming
  • built-in iPhone and rapid Android charging via USB port


Audio/Visual features:

  • 13-band graphic EQ
  • digital time alignment
  • Volume Link EQ boosts frequencies that are affected by road noise
  • 2- and 3-way crossover settings



  • compatible with SiriusXM satellite radio tuner
  • inputs: rear USB-A input, front- and rear-camera inputs, rear micro HDMI input, rear analog 3.5 mm A/V input (configurable for a third camera input)
  • outputs: rear analog video output (RCA), 6-channel preamp outputs (4-volt front, rear, sub)


Other information:

  • wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
  • built-in amplifier (22 watts RMS/50 peak x 4 channels)
  • compatible with most factory steering wheel audio controls (adapter required)
  • works with iDatalink Maestro RR and RR2 modules
    • retains factory features in a wide selection of vehicles
    • displays engine performance data on touchscreen
  • warranty: 2 years
  • MFR # KW-M785BW

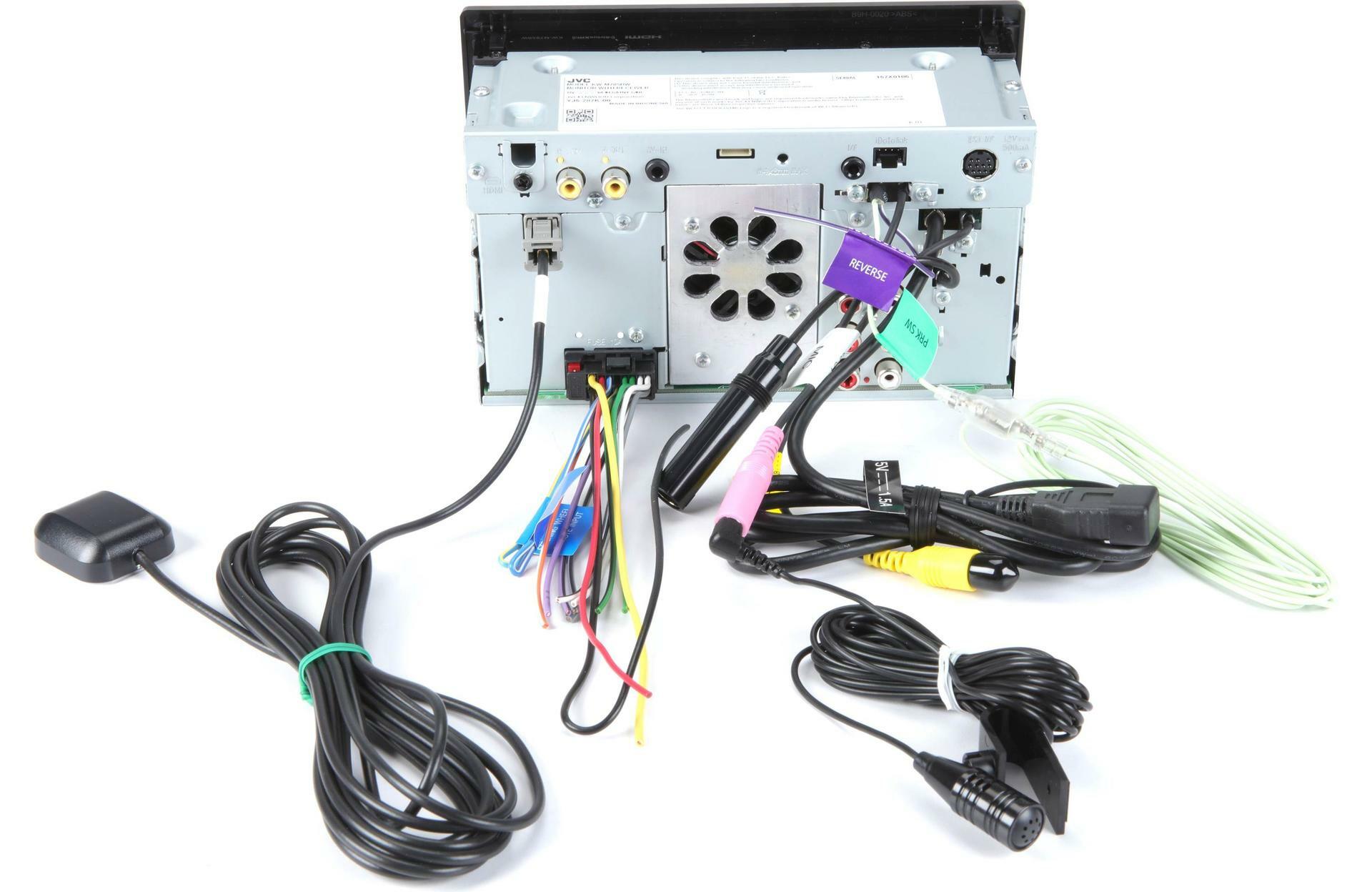

What's in the box:

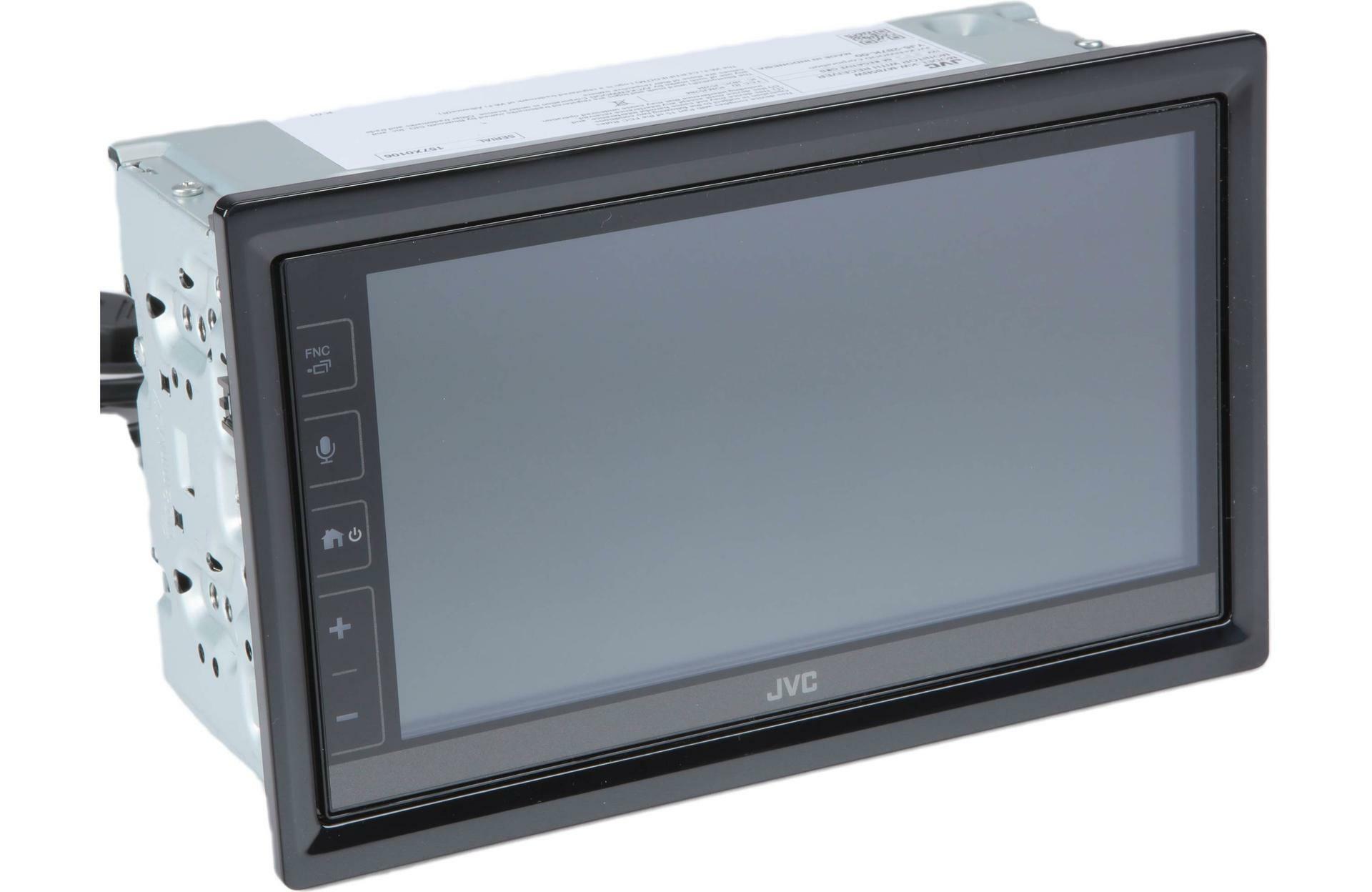

  • Digital multimedia receiver w/ fixed 6.75" touchscreen monitor (10A fuse)
  • Sleeve (attached)
  • Trim ring

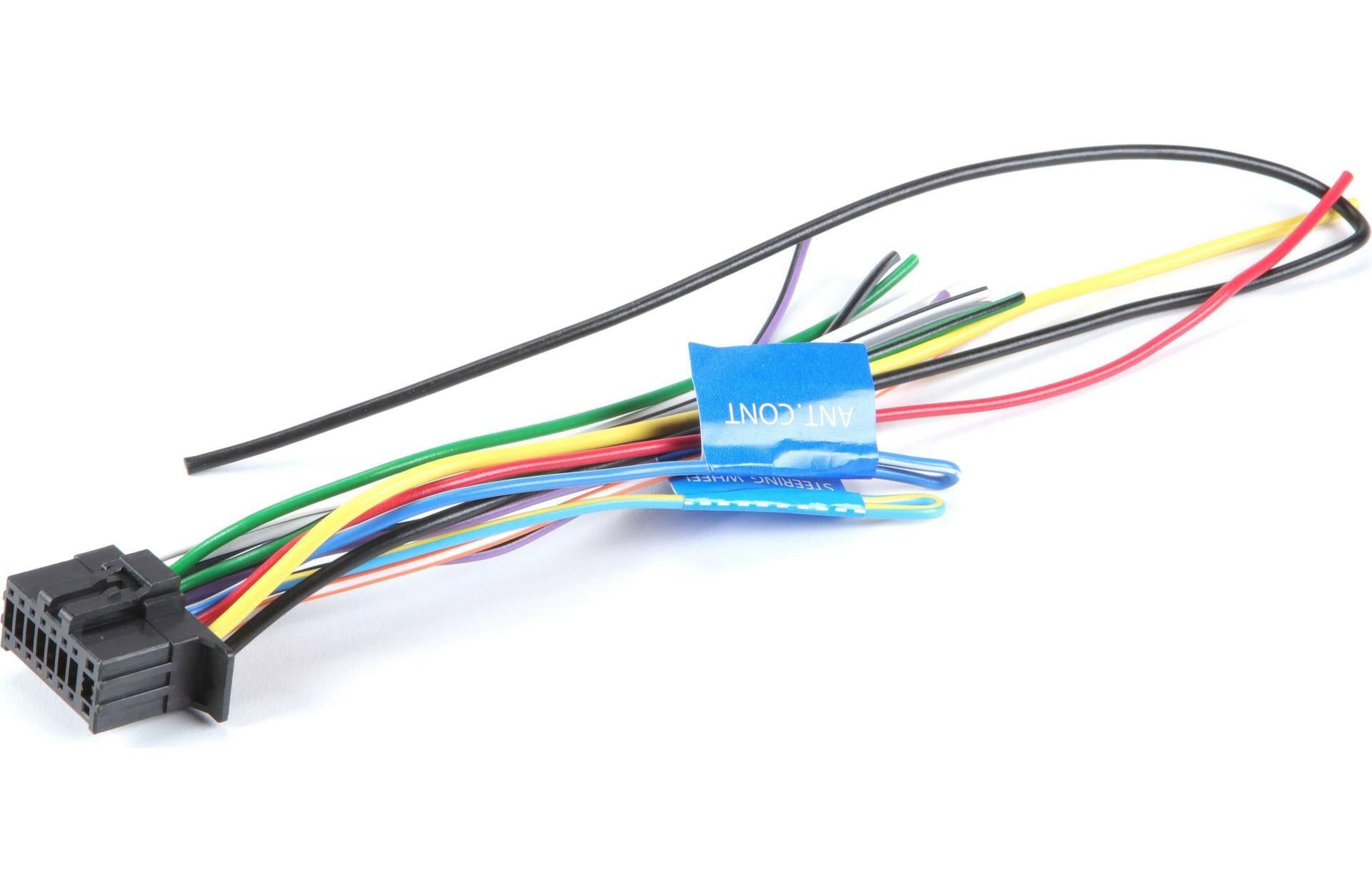

  • Wiring harness
  • 6.5' Parking brake wire (light green)
  • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)

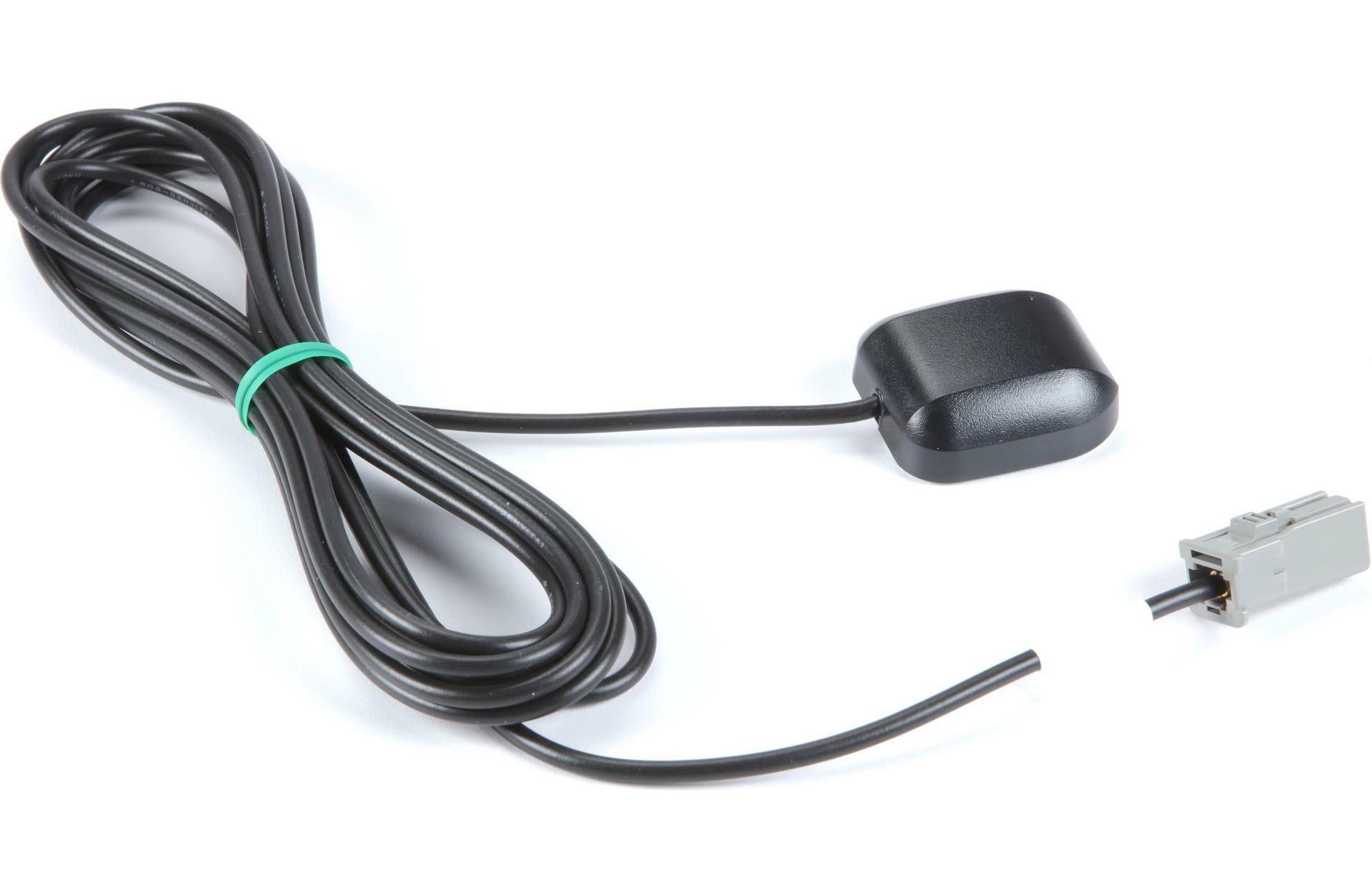

  • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
  • Self-adhesive pad
  • 2 Radio removal tools
  • 6 Pan-head ISO-mount screws (M5x8mm)
  • 6 Flat-head ISO-mount screws (M5x8mm)
  • Quick Start Guide
  • Warranty card
