Description
xPRODUCT DESCRIPTION
TECHNICAL SPECIFICATIONS
Receivers

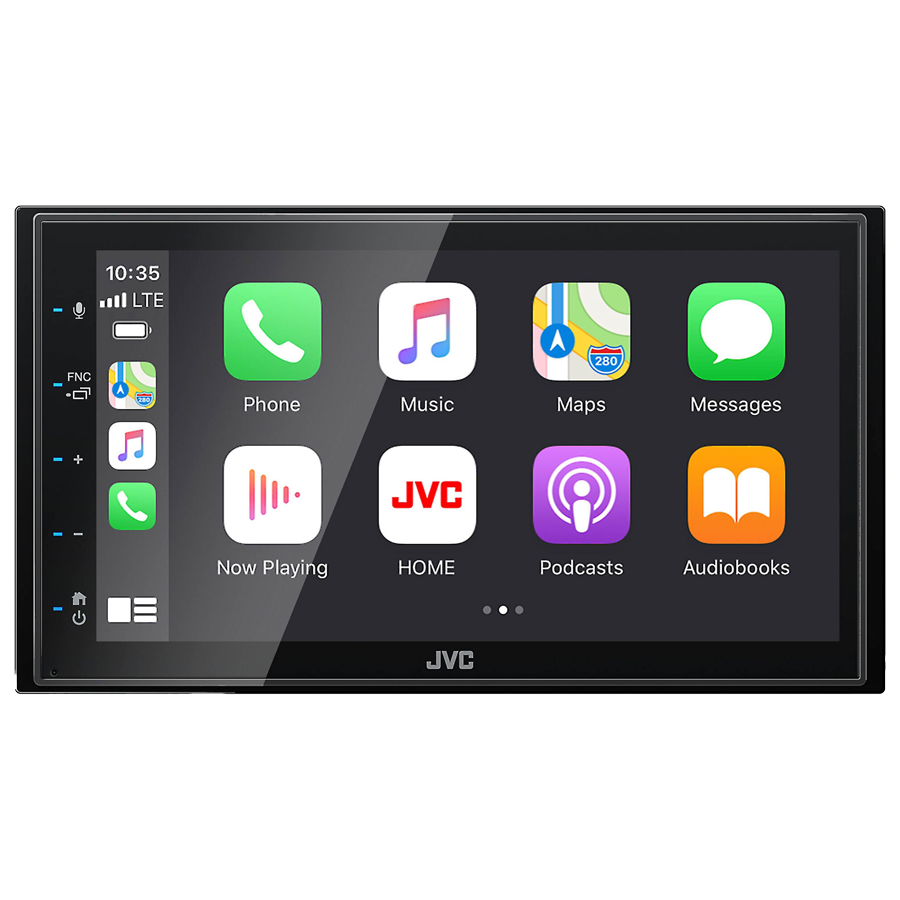

Manufacturer: JVC Mobile
Bluetooth Connectivity: Yes (Built-In)
DIN Size: Double-DIN
Screen Size: 7"
Head Unit Type: Mechless
General Features:
- 6.8" WVGA Capacitive Touch Monitor
- Apple CarPlay Via USB
- Android Auto Via USB
- SiriusXM Ready
- USB Mirroring for Android Phones (App Required)
- iPhone / Ipod Music Control Via USB or Bluetooth
- Android Music Playback Via Bluetooth
- Radio Tuner FM/AM with RBDS
- Shallow Chassis for Easier Installation
- Optional Wireless Remote
- Includes Mounting Sleeve and Trime Plate
- Power Output:
- Peak: 50 watts x 4 channels
- RMS: 17 watts x 4 channels
- Wireless remote control included
- MP3 ID3 Tag Display (Title/Artist/Album)
- Playback of MP3 and WMA
- AM/FM tuner with 18FM/12AM presets
- Compatible with Apple iPhone 6/6+ and iOS 8 software
- 13-band parametric equalizer with 7 selectable tone curves (7 Preset, 3 User)
- 3 Sets of 2V preamp outputs (front, rear and subwoofer)
- iPod and iPhone Ready: Standard USB-to-iPod Cable compatible
- Rear USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
- Rear 3.5mm Auxiliary Inputs
- Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
- Steering Wheel Control Ready: PAC ControlPRO (SWI-CP5) or the Axxess ASWC-1 required and sold separately
- Rear RCA Video Output: Used for connection to separate monitors and other devices
- Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
- Bluetooth Wireless Technology (Wired Mic Included)
- Hands Free Calling
- Voice Dialing (Compatiable Mobile Phone Required)
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Bluetooth version __ +EDR certified
- Bluetooth range up to 5 meters
- Supports SMS message notifications and A2DP audio streaming
- Bluetooth Profiles Supported:
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- Works with most Bluetooth enabled cell phones
- Includes a (external wired/built-in) microphone for clear, convenient, distortion-free talking
TECHNICAL SPECIFICATIONS
Receivers
Manufacturer: JVC Mobile
Bluetooth Connectivity: Yes (Built-In)
DIN Size: Double-DIN
Screen Size: 7"
Head Unit Type: Mechless
Monitor
- Screen Size
- 6.8"W VGA Screen
- Touch Panel
- Capacitive
- Gesture Touch Control
- Yes
- Customizable GUI
- Yes
- Key Illumination Color
- Blue
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- AVI/MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Wired-Mic included)
- Hands Free Call
- Yes (HFP1.6 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- AAC / SBC
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Alphabetical Search for Phone Book
- Yes
- Auto Pairing for iPhone/Android
- Yes (Android only)
Android Control
- Android Auto[2]
- Yes (via USB)
- Mirroring for Android
- Yes (via USB) *Need mirroring App
- Android Music Playback
- Yes (via Bluetooth(R))
i..
