Description
xPRODUCT DESCRIPTION
TECHNICAL SPECIFICATIONS

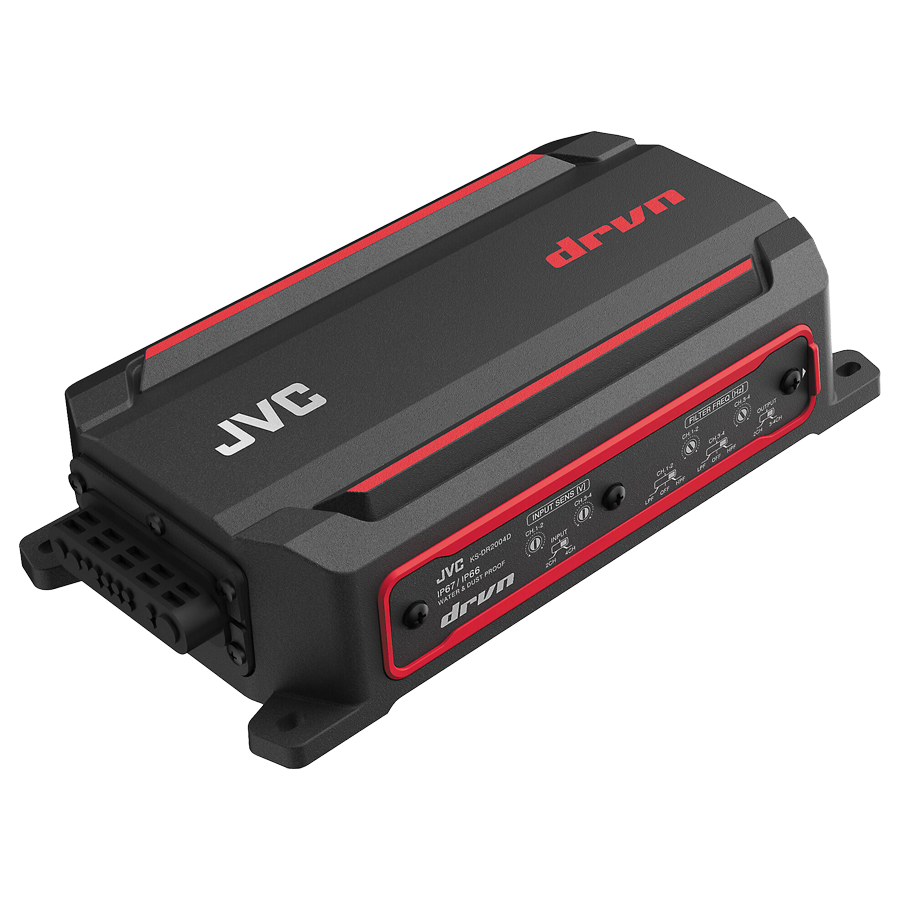

Marine/Powersport Amps
Manufacturer: JVC
Amplifier Type: Marine/Powersport Amplifier
Number of Channels: 4 Channel
Amplifier Class: D
Peak Power Output: Up to 500 Watts
- Compact 4-channel amplifier for marine and powersports vehicles
- 50 watts RMS x 4 at 4 ohms
- 75 watts RMS x 4 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms
- Class D amp technology
- Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
- Suitable for marine and powersports applications
- IP67/IP66 certified waterproof and dustproof
- ASTM B117 certified rustproof
- 3-axis multi-frequency vibration proof
- Preamp and speaker-level inputs
- Wiring and hardware not included with amplifier
- 10-gauge power and ground leads recommended
- Fuse rating: 40A x 1
- Dimensions: 7-13/16"W x 1-15/16"H x 4-1/8"D
TECHNICAL SPECIFICATIONS
Marine/Powersport Amps
Manufacturer: JVC
Amplifier Type: Marine/Powersport Amplifier
Number of Channels: 4 Channel
Amplifier Class: D
Peak Power Output: Up to 500 Watts
Audio unit
- Max Power Output
- 600W
- Rated Power Output
- Stereo (4 ohms)
- 50W x 4 (20Hz - 200Hz, less than or equal to 1.0% THD)
- Stereo (2 ohms)
- 75W x 4 (1kHz, less than or equal to 1.0% THD)
- Bridged (4 ohms)
- 150W x 2 (1kHz, less than or equal to 1.0% THD)
- Speaker Impedance
- 4 ohms (2 ohms to 8 ohms allowable)
- Frequency Response (+0, -3dB)
- 10Hz - 35Hz
- Input Sensitivity (+0, -3dB)
- 0.2V - 5.0V
- Signal to Noise Ratio
- 89dB
- Low Pass Filter Frequency (-12dB/oct.)
- 50Hz - 200Hz (variable)
- High Pass Filter Frequency (-12dB/oct.)
- 50Hz - 200Hz (variable)
General
- Waterproof
- Yes (IPX6, IPX7)
- Dustproof
- Yes (IP6X, IP7X)
- Rustproof
- Yes
- Vibration-proof
- Yes
- Operating Voltage
- 12V DC car battery
- Current Consumption
- 26A
- Dimensions (W x H x D)
- 7-13/16" x 1-15/16" x 4-1/8"
- Weight
- 1.6kg (3.5lbs)
