iDatalink Maestro KIT-FOC1 + ADS-MRR Dash Kit Harness For 2012-18 Ford Focus

iDatalink KIT-FOC1 Dash Kit

Fits select 2012-18 Ford Focus vehicles — double-DIN radios

Install a new radio in your FocusYou bought a 2012-18 Ford Focus — it's a great vehicle, but it's dashboard makes it difficult to upgrade the factory radio. The iDatalink KIT-FOC1 factory system adapter (along with the Maestro ADS-MRR module, sold separately) gives you everything you need to install an aftermarket double-DIN (4" tall) stereo and wire it up to your Focus. With any car stereo, this package retains your backup camera (if equipped), along with your steering wheel audio controls.iDatalink to the rescueInstall an iDatalink-compatible car stereo from Alpine, JVC, Kenwood, Sony, or Pioneer, and you'll also retain your car's SYNC features, including hands-free calling and music streaming. You'll also retain the fader control and full functionality of your factory amplifier, along with your rear seat entertainment system (if present). Your climate controls will appear on your new car stereo's touch screen, and you can set up gauges to check engine performance and other vehicle data, such as tire pressure, battery voltage, and "door ajar" warnings. You'll be able to choose which gauges you'd like to appear on the screen, and you'll even be able to check the engine codes when a warning light comes on.

Product highlights:

allows you to install a double-DIN radio in your Ford Focus (also requires the Maestro ADS-MRR module)

includes dash kit, wiring harness, and other wiring

retains steering wheel controls and backup camera with any car stereo

extra features with an iDatalink-compatible radio

SYNC (including USB port, Aux input, and Bluetooth)

climate control display on touchscreen

visual park assist, tire pressure display, voltage display, and more

warranty: 1 year

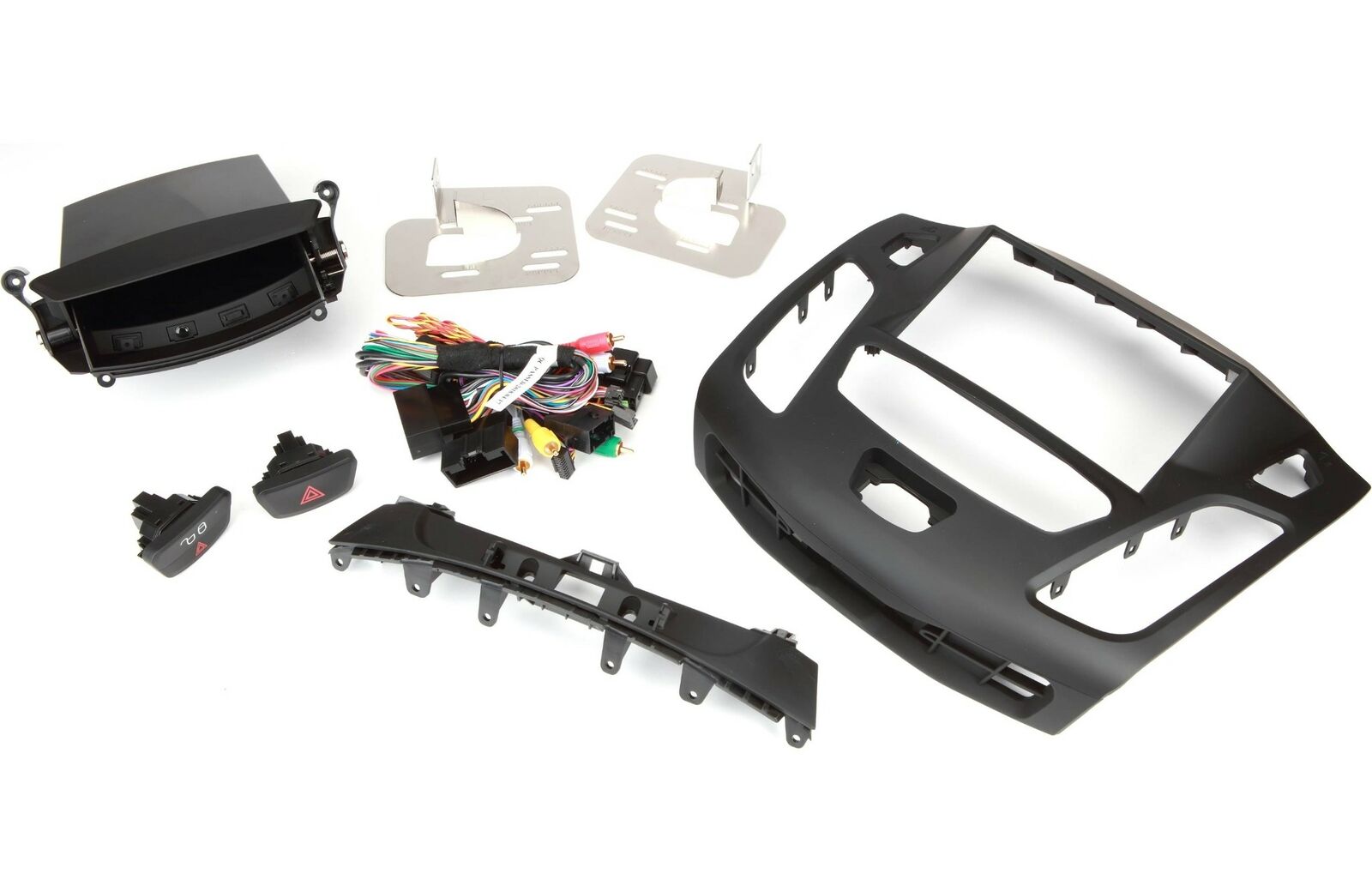

What's in the box:

OEM integration dash kit

Vehicle harness

Trim-panel

Pocket

2 Brackets

Hazard button

Unlock/Lock button

4 Screws

Quick Start Guide

iDatalink Maestro RR Interface Module

Connect a new stereo and retain the steering wheel audio controls and factory amps in select 2006-up vehicles

iDatalink's Maestro ADS-MRR module, along with the correct interface harness for your vehicle, allows you to install a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles while retaining your factory steering wheel audio controls and the use of your factory amplifier, if present.

Here's how it works

First, you connect the Maestro to your computer using the included USB cable, visit www.idatalink.com/maestro, and follow the instructions. Once the unit has been "flashed," it's ready to go. Next, you'll either solder or crimp the vehicle-specific Maestro harness (sold separately) to your new receiver's wiring, just like you would with any Crutchfield wiring harness or wiring adapter.

Important Note: You will also need an additional Maestro vehicle-specific wiring harness that connects your new receiver to the ADS-MRR module and your vehicle's wiring. We will automatically add this harness to your Cart at a discounted price when you purchase a new car stereo and this ADS-MRR module.

Retain steering wheel audio controls, too

The ADS-MRR module also allows you to use your factory steering wheel audio controls with your new receiver. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. Better yet, you can also assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled.

Keeping your factory features with an iDatalink-ready car stereo

If you're buying a compatible Kenwood, JVC, Pioneer, Sony, or Alpine receiver, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select vehicles.

Chrysler: You'll retain the use of the Uconnect® system (including voice command), along with your steering wheel audio controls and factory amp.

Fiat: You'll retain your vehicle's factory amp, USB port, and backup camera.

Ford: You'll keep your SYNC® system, including the factory Bluetooth, satellite radio (in select vehicles, see Details), steering wheel audio controls, and other great features.

GM: You'll retain the use of OnStar® system, along with your steering wheel audio controls, your factory amp, and safety warning chimes.

Honda: You'll retain your vehicle's steering wheel controls, Bluetooth, aux input, and factory amplifier.

Subaru: You'll retain your steering wheel controls, factory amp and sub, and Subaru backup camera.

Toyota: You'll retain your vehicle's A/V input, USB port, and backup camera.

Product highlights:

allows installation of a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles

works with required vehicle-specific harness (sold separately) to retain factory steering wheel audio controls, retain the factory amp if present, and integrate all car stereo connections

retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, Pioneer, and JVC touchscreen receivers

displays engine performance data on touchscreen with select Kenwood, JVC, Pioneer, Sony, and Alpine multimedia receivers

dimensions: 4-1/8"W x 3/4"H x 2-7/8"D

What's in the box:

Radio replacement interface module

23" Wiring harness (18-pin to bare-wires)

23" Power/Ground harness (3-pin to bare-wires)

18" Interface harness (4-pin to 4-pin)

18" SWC harness (4-pin to 3.5mm/bare-wire)

22" Audio harness (3-Pin to 3.5mm)

3" Jumper harness (2-pin to 2-pin)

7" USB cable (microUSB to USB-A)

Quick Start Guide
