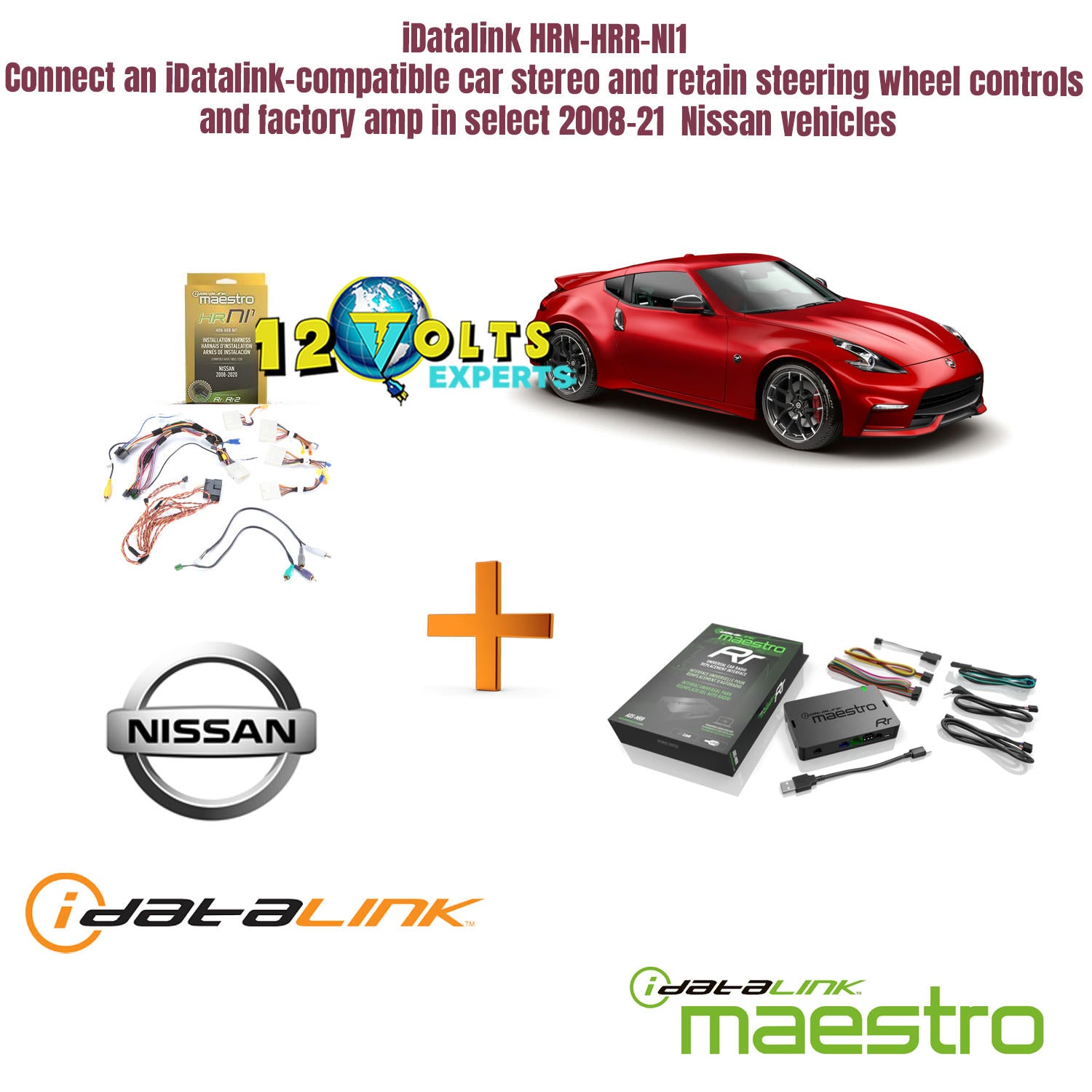

iDatalink HRN-HRR-NI1 + ADS-MRR

Connect an iDatalink-compatible car stereo and retain steering wheel controls and factory amp in select 2008-21

iDatalink HRN-HRR-NI1

Connect an iDatalink-compatible car stereo and retain steering wheel controls and factory amp in select 2008-21

iDatalink meets Nissan

iDatalink's iDatalink HRN-HRR-NI1 installation harness simplifies the installation of the Maestro ADS-MRR or ADS-MRR2 Car Radio Replacement Interface module (sold separately) in select Nissan vehicles when replacing your factory radio.

The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and the serial port on your new car stereo. This harness features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Retain factory features

The HRN-HRR-NI1 harness and interface module retains the following features with any aftermarket radio:

steering wheel controls

use of the factory amplifier, including balance and fade control

rear-view camera, depending upon aftermarket radio inputs

The harness also supplies the outputs (parking brake, reverse, and VSS [Vehicle Speed Sense]) necessary for installation of a navigation receiver, plus illumination and accessory power outputs.

Extra features with an iDatalink-ready car stereo

If you're buying a compatible iDatalink-ready car stereo, you'll also retain your backup camera's parking lines (requires composite video rearview camera input), as well as the front, side, and 360 camera (requires second composite video camera input). You'll also be able to display gauges and vehicle info on your receiver's screen, plus read and reset engine codes.

Installation note: The HRN-HRR-NI1 adapter must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your vehicle.

Product highlights:

allows installation of a new receiver with iDatalink port in select Nissan vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)

retains the use of your steering wheel audio controls and factory amp

retains rear-view camera, depending upon aftermarket radio inputs (iDatalink-ready car stereos also retain front, side, and 360 cameras)

displays engine performance data on touchscreen with select Alpine, JVC, Kenwood, Sony, and Pioneer receivers

warranty: 1 year

MFR # HRN-HRR-NI1

What's in the box:

Vehicle/interface harness

"A" harness

"B" harness

"C" harness

"D" harness

Front preout harness

Rear preout harness

OBDII connector harness

Compatible Vehicles

2007 Nissan Sentra

2008 Nissan Altima

2008 Nissan Frontier

2008 Nissan Pathfinder

2008 Nissan Sentra

2008 Nissan Versa

2009 Nissan 370Z

2009 Nissan Altima

2009 Nissan Cube

2009 Nissan Frontier

2009 Nissan Maxima

2009 Nissan Murano

2009 Nissan Pathfinder

2009 Nissan Rogue

2009 Nissan Sentra

2009 Nissan Versa

2009 Nissan Xterra

2010 Nissan 370Z

2010 Nissan Altima

2010 Nissan Cube

2010 Nissan Frontier

2010 Nissan Maxima

2010 Nissan Murano

2010 Nissan Pathfinder

2010 Nissan Rogue

2010 Nissan Sentra

2010 Nissan Versa

2010 Nissan Xterra

2011 Nissan 370Z

2011 Nissan Altima

2011 Nissan Cube

2011 Nissan Frontier

2011 Nissan Juke

2011 Nissan Leaf

2011 Nissan Maxima

2011 Nissan Murano

2011 Nissan Pathfinder

2011 Nissan Quest

2011 Nissan Rogue

2011 Nissan Sentra

2011 Nissan Versa

2011 Nissan Xterra

2012 Nissan 370Z

2012 Nissan Altima

2012 Nissan Cube

2012 Nissan Frontier

2012 Nissan Juke

2012 Nissan Leaf

2012 Nissan Maxima

2012 Nissan Murano

2012 Nissan NV1500

2012 Nissan NV2500

2012 Nissan NV3500

2012 Nissan Pathfinder

2012 Nissan Quest

2012 Nissan Rogue

2012 Nissan Sentra

2012 Nissan Versa

2012 Nissan Xterra

2013 Nissan 370Z

2013 Nissan Altima

2013 Nissan Cube

2013 Nissan Frontier

2013 Nissan Juke

2013 Nissan Maxima

2013 Nissan Murano

2013 Nissan NV1500

2013 Nissan NV200

2013 Nissan NV2500

2013 Nissan NV3500

2013 Nissan Quest

2013 Nissan Rogue

2013 Nissan Sentra

2013 Nissan Titan

2013 Nissan Versa

2013 Nissan Xterra

2014 Nissan 370Z

2014 Nissan Altima

2014 Nissan Cube

2014 Nissan Frontier

2014 Nissan Juke

2014 Nissan Maxima

2014 Nissan Murano

2014 Nissan NV1500

2014 Nissan NV200

2014 Nissan NV2500

2014 Nissan NV3500

2014 Nissan Quest

2014 Nissan Rogue

2014 Nissan Sentra

2014 Nissan Titan

2014 Nissan Versa

2014 Nissan Versa Note

2014 Nissan Xterra

2015 Nissan 370Z

2015 Nissan Altima

2015 Nissan Frontier

2015 Nissan Juke

2015 Nissan Murano

2015 Nissan NV1500

2015 Nissan NV200

2015 Nissan NV2500

2015 Nissan NV3500

2015 Nissan Quest

2015 Nissan Rogue

2015 Nissan Sentra

2015 Nissan Titan

2015 Nissan Versa

2015 Nissan Versa Note

2015 Nissan Xterra

2016 Nissan 370Z

2016 Nissan Altima

2016 Nissan Frontier

2016 Nissan Juke

2016 Nissan Maxima

2016 Nissan Murano

2016 Nissan NV1500

2016 Nissan NV200

2016 Nissan NV2500

2016 Nissan NV3500

2016 Nissan Quest

2016 Nissan Rogue

2016 Nissan Sentra

2016 Nissan Versa

2016 Nissan Versa Note

2017 Nissan 370Z

2017 Nissan Altima

2017 Nissan Frontier

2017 Nissan Juke

2017 Nissan Maxima

2017 Nissan Murano

2017 Nissan NV1500

2017 Nissan NV200

2017 Nissan NV2500

2017 Nissan NV3500

2017 Nissan Quest

2017 Nissan Rogue

2017 Nissan Rogue Sport

2017 Nissan Sentra

2017 Nissan Titan

2017 Nissan Versa

2017 Nissan Versa Note

2018 Nissan 370Z

2018 Nissan Altima

2018 Nissan Frontier

2018 Nissan Maxima

2018 Nissan Murano

2018 Nissan NV1500

2018 Nissan NV200

2018 Nissan NV2500

2018 Nissan NV3500

2018 Nissan Rogue

2018 Nissan Rogue Sport

2018 Nissan Sentra

2018 Nissan Titan

2018 Nissan Versa

2018 Nissan Versa Note

2019 Nissan 370Z

2019 Nissan Frontier

2019 Nissan NV200

2020 Nissan 370Z

iDatalink Maestro RR Interface Module

Connect a new stereo and retain the steering wheel audio controls and factory amps in select 2006-up vehicles

iDatalink's Maestro ADS-MRR module, along with the correct interface harness for your vehicle, allows you to install a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles while retaining your factory steering wheel audio controls and the use of your factory amplifier, if present.

Here's how it works

First, you connect the Maestro to your computer using the included USB cable, visit www.idatalink.com/maestro, and follow the instructions. Once the unit has been "flashed," it's ready to go. Next, you'll either solder or crimp the vehicle-specific Maestro harness (sold separately) to your new receiver's wiring, just like you would with any Crutchfield wiring harness or wiring adapter.

Important Note: You will also need an additional Maestro vehicle-specific wiring harness that connects your new receiver to the ADS-MRR module and your vehicle's wiring. We will automatically add this harness to your Cart at a discounted price when you purchase a new car stereo and this ADS-MRR module.

Retain steering wheel audio controls, too

The ADS-MRR module also allows you to use your factory steering wheel audio controls with your new receiver. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. Better yet, you can also assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled.

Keeping your factory features with an iDatalink-ready car stereo

If you're buying a compatible Kenwood, JVC, Pioneer, Sony, or Alpine receiver, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select vehicles.

Chrysler: You'll retain the use of the Uconnect® system (including voice command), along with your steering wheel audio controls and factory amp.

Fiat: You'll retain your vehicle's factory amp, USB port, and backup camera.

Ford: You'll keep your SYNC® system, including the factory Bluetooth, satellite radio (in select vehicles, see Details), steering wheel audio controls, and other great features.

GM: You'll retain the use of OnStar® system, along with your steering wheel audio controls, your factory amp, and safety warning chimes.

Honda: You'll retain your vehicle's steering wheel controls, Bluetooth, aux input, and factory amplifier.

Subaru: You'll retain your steering wheel controls, factory amp and sub, and Subaru backup camera.

Toyota: You'll retain your vehicle's A/V input, USB port, and backup camera.

Product highlights:

allows installation of a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles

works with required vehicle-specific harness (sold separately) to retain factory steering wheel audio controls, retain the factory amp if present, and integrate all car stereo connections

retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, Pioneer, and JVC touchscreen receivers

displays engine performance data on touchscreen with select Kenwood, JVC, Pioneer, Sony, and Alpine multimedia receivers

dimensions: 4-1/8"W x 3/4"H x 2-7/8"D

What's in the box:

Radio replacement interface module

23" Wiring harness (18-pin to bare-wires)

23" Power/Ground harness (3-pin to bare-wires)

18" Interface harness (4-pin to 4-pin)

18" SWC harness (4-pin to 3.5mm/bare-wire)

22" Audio harness (3-Pin to 3.5mm)

3" Jumper harness (2-pin to 2-pin)

7" USB cable (microUSB to USB-A)

Quick Start Guide
