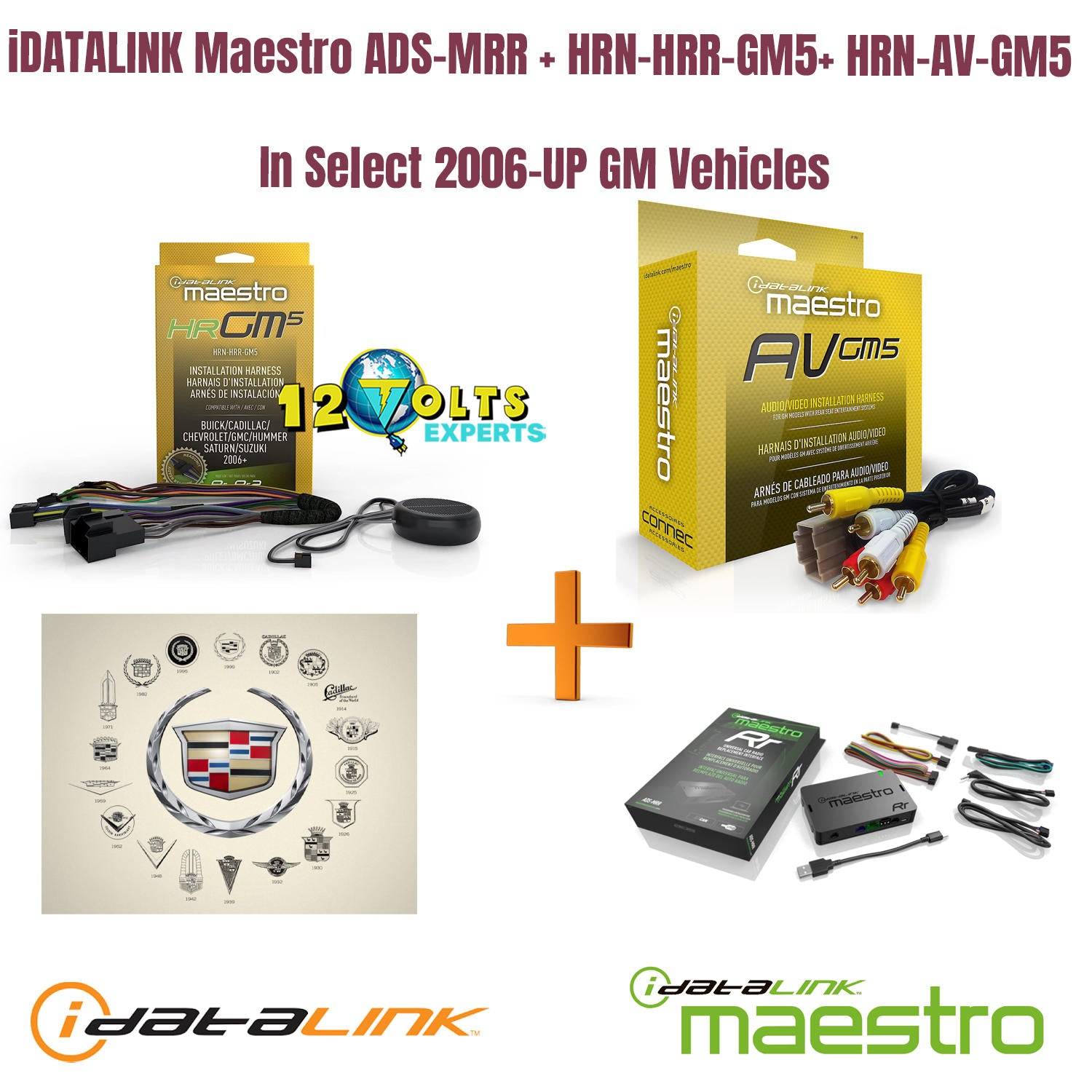

iDATALINK MAESTRO ADS-MRR + HRN-RR-GM5+ HRN-AV-GM5 for SELECT CHEVY GMC VEHICLE
iDATALINK MAESTRO ADS-MRR + HRN-RR-GM5+ HRN-AV-GM5 for SELECT CHEVY GMC VEHICLE
Couldn't load pickup availability
iDatalink Maestro RR Interface Module
Connect a new stereo and retain the steering wheel audio controls and factory amps in select 2006-up vehicle
iDatalink's Maestro ADS-MRR module, along with the correct interface harness for your vehicle, allows you to install a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, and Volkswagen/Audi vehicles while retaining your factory steering wheel audio controls and the use of your factory amplifier, if present.
Here's how it works
First, you connect the Maestro to your computer using the included USB cable, visit www.idatalink.com/maestro, and follow the instructions. Once the unit has been "flashed," it's ready to go. Next, you'll either solder or crimp the vehicle-specific Maestro harness (sold separately) to your new receiver's wiring, just like you would with any Crutchfield wiring harness or wiring adapter.
Important Note: You will also need an additional Maestro vehicle-specific wiring harness that connects your new receiver to the ADS-MRR module and your vehicle's wiring. We will automatically add this harness to your Cart at a discounted price when you purchase a new car stereo and this ADS-MRR module.
Retain steering wheel audio controls, too
The ADS-MRR module also allows you to use your factory steering wheel audio controls with your new receiver. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. Better yet, you can also assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled.
Keeping your factory features with an iDatalink-ready car stereo
If you're buying a compatible Kenwood, JVC, Pioneer, Sony, or Alpine receiver, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select vehicles.
Chrysler: You'll retain the use of the Uconnect® system (including voice command), along with your steering wheel audio controls and factory amp.
Fiat: You'll retain your vehicle's factory amp, USB port, and backup camera.
Ford: You'll keep your SYNC® system, including the factory Bluetooth, satellite radio (in select vehicles, see Details), steering wheel audio controls, and other great features.
GM: You'll retain the use of the OnStar® system, along with your steering wheel audio controls, your factory amp, and safety warning chimes.
Honda: You'll retain your vehicle's steering wheel controls, Bluetooth, aux iInput, and factory amplifier.
Subaru: You'll retain your steering wheel controls, factory amp and sub, and Subaru backup camera.
Toyota: You'll retain your vehicle's A/V input, USB port, and backup camera.
Volkswagen: You'll retain your VW's Bluetooth, the factory digital amplifier and fader, plus VW's media device interface. Select Kenwood receivers allow you to display navigation info on your VW's multi-function screen.
Product highlights:
- allows installation of a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, and Volkswagen/Audi vehicles
- works with required vehicle-specific harness (sold separately) to retain factory steering wheel audio controls, retain the factory amp if present, and integrate all car stereo connections
- retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, Pioneer, and JVC touchscreen receivers
- displays engine performance data on touchscreen with select Kenwood, JVC, Pioneer, Sony, and Alpine multimedia receivers
- dimensions: 4-1/8"W x 3/4"H x 2-7/8"D
What's in the box:
- Radio replacement interface module
- 23" Wiring harness (18-pin to bare-wires)
- 23" Power/Ground harness (4-pin to bare-wires)
- 18" Interface harness (4-pin to 4-pin)
- 18" SWC harness (4-pin to 3.5mm/bare-wire)
- 22" Audio harness (3-Pin to 3.5mm)
- 3" Jumper harness (2-pin to 2-pin)
- 7" USB cable (miniUSB to USB-A)
- Quick Start Guide
- Radio replacement interface module
- 23" Wiring harness (18-pin to bare-wires)
- 23" Power/Ground harness (4-pin to bare-wires)
- 18" Interface harness (4-pin to 4-pin)
- 18" SWC harness (4-pin to 3.5mm/bare-wire)
- 22" Audio harness (3-Pin to 3.5mm)
- 3" Jumper harness (2-pin to 2-pin)
- 7" USB cable (miniUSB to USB-A)
- Quick Start Guide
iDatalink ADS HRN-RR-GM5+ Interface Harness
Connect a new car stereo and retain your factory steering wheel audio controls, warning chimes, OnStar®, and amp in select 2006-up GM vehicles (ADS-MRR module also required)
iDatalink's ADS HRN-RR-GM5+
This iDatalink ADS-HRN-RR-GM5+ harness from iDatalink allows you to connect a new car stereo in select 2006-up GM vehicles, working in conjunction with iDatalink's Maestro ADS-MRR module. Once connected, you'll retain the use of your steering wheel audio controls, your factory amp, and your safety warning chimes, along with OnStar® and factory Bluetooth, if present.
The package includes connectors that plug in between the Maestro module, your GM radio's wiring plugs, and your new car stereo. The harness now includes the option of speaker-level outputs to your amp via included plug-in adapters. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness. The package also includes a plug-in remote speaker which reproduces all factory warning chimes and turn signal clicks.
Keeping your factory features with an iDatalink-ready car stereo
If you're buying a compatible iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select GM-built vehicles. You'll also be able to display engine performance data and other vehicle info on your receiver's screen.
Installation note: This interface harness must be used with the iDatalink Maestro ADS-MRR module to connect a new car stereo to your GM vehicle.
Product highlights:
- allows installation of a new receiver in select GM vehicles (also requires the Maestro ADS-MRR module)
- retains the use of your steering wheel audio controls, OnStar, safety warning chimes, and your factory amp
- displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers
What's in the box:
- GM vehicle harness (for use with Maestro RR interface)
- High-level front speaker harness
- Low-level front speaker harness
- High-level rear speaker harness
- Low-level rear speaker harness
- Camera/Sub/Center RCA harness
- Warning chime module
- Two 4-Pin connectors
- 4-pin to 2-pin jumper harness
- OBDII harness (pre-connected to main harness)
iDatalink HRN-AV-GM5
Retain the factory rear seat entertainment (RSE) system in select GM vehicles
Keep the factory monitor
You're installing a new radio in your GM vehicle and you want to retain your factory Rear Seat Entertainment system (RSE) — iDatalink's HRN-AV-GM5 cable can help. Used with iDatalink's Maestro RR interface and a GM harness, you'll be able to send audio and video from your new touchscreen receiver to the factory monitor in the backseat. If your new car stereo has a rear audio input, you can also retain the use of the audio input on your rear seat control panel. Warranty: 1 year.
Keeping your factory features with an iDatalink-ready car stereo
If you're buying a compatible iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select GM vehicles. You'll also be able to display engine performance data and other vehicle info on your receiver's screen.
Installation note: This adapter must be used with the iDatalink Maestro ADS-MRR module and the appropriate iDatalink GM harness to connect a new car stereo and your rear seat entertainment system in your GM vehicle.
What's in the box:
- 17" RSE retention harness
- 8" Female stereo RCA-to-male minijack adapter cable
Vehicle Compatibility:
- Buick:
- 2008-16 Enclave (Base)
- 2006-11 Lucerne (Base)
- Cadillac
- 2006-11 DTS(Base)
- 2007-11 Escalade (Base)
- 2012-14 Escalade (w/o Factory Navigation)
- Chevy:
- 2007-11 Avalanche (Base)
- 2012-13 Avalance (w/o Factory Nav)
- 2007-09 Equinox (Base)
- 2008-16 Express 1500 (Base)
- 2008-16 Express 2500 (Base)
- 2014-16 Express 3500 (Base)
- 2006-13 Impala (Base)
- 2006-07 Monte Carlo (Base)
- 2007-11 Silverado 1500 (Base)
- 2012-13 Silverado 1500 (w/o Factory Nav)
- 2007-11 Silverado 2500 (Base)
- 2012-14 Silverado 2500 (w/o Factory Nav)
- 2007-11 Silverado 3500 (Base)
- 2012-14 Silverado 3500 (w/o Factory Nav)
- 2007-11 Suburban (Base)
- 2012-14 Suburban (w/o Factory Nav)
- 2007-11 Tahoe (Base)
- 2012-14 Tahoe (w/o Factory Nav)
- 2009-16 Traverse (Base)
- GMC:
- 2007-14 Arcadia (Base)
- 2008-16 Savana 1500 (Base)
- 2015-16 Savana 2500 (Base)
- 2014 Savana 2500 (w/o Factory Nav)
- 2014-16 Savana 3500 (Base)
- 2013 Sierra 1500 (w/o Factory Nav)
- 2007-11 Sierra (Base)
- 2012-13 Sierra (w/o Factory Nav)
- 2012-14 Sierra 2500 (w/o Factory Nav)
- 2012-14 Sierra 3500 (w/o Factory Nav)
- 2007-11 Yukon (Base)
- 2012-14 Yukon (w/o Factory Nav)
- 2007-11 Yukon XL (Base)
- 2012-14 Yukon XL (w/o Factory Nav)
- Hummer
- 2008-09 H2 (Base)
- Saturn
- 2007-10 Outlook (Base)
- Suzuki
- 2007-10 XL-7 (Base)
