iDatalink

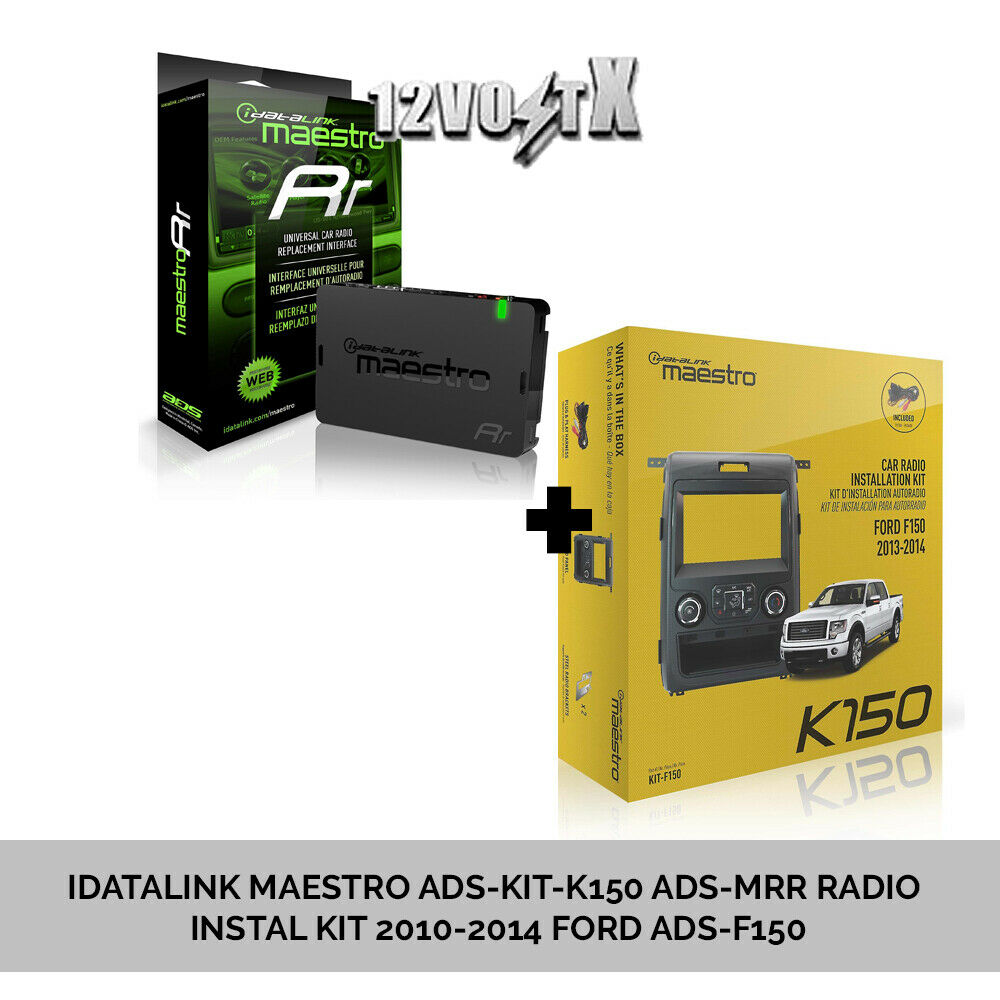

iDATALINK MAESTRO ADS-KIT-F150 +ADS-MRR RADIO INSTAL KIT 2010-2014 FORD F150

iDATALINK MAESTRO ADS-KIT-F150 +ADS-MRR RADIO INSTAL KIT 2010-2014 FORD F150

Regular price $394.95 USD
Regular price Sale price $394.95 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Foreign Speeds
Clock Icon 9.00 am - 5.00 pm

Put a new radio in your F-150

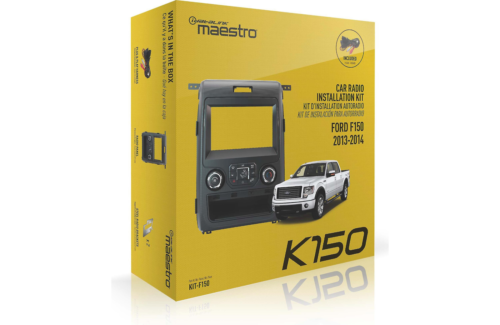

Your 2013-14 Ford F-150 with its 4.3" "My Ford" screen is a great truck, but the console makes it tough to upgrade the factory radio. This iDatalink K150 dash kit allows you to install an aftermarket double-DIN (4" tall) receiver in the dash panel. The kit is a perfect match for the color, texture, and contours of your dash, and features climate controls with a factory look. You'll get a convenient pocket with flush-mounted HDMI, auxiliary, and USB inputs that connect to your new radio.

Module required for this installation

You'll need the Maestro ADS-MRR module (not included) to complete this installation and retain your steering wheel audio controls. The K150 comes with simple plug-in connectors for the Maestro adapter and your F-150's factory wiring harness.

Retained features

With any car stereo, this package retains your factory amplifier (if equipped) and your backup camera. Install an iDatalink-compatible car stereo from Alpine, JVC, Kenwood, or Pioneer, and you'll also retain your truck's SYNC features, including hands-free calling and music streaming.

With an iDatalink-compatible receiver, you'll be able to use your receiver's touchscreen to check your tire pressure, battery voltage, and "door ajar" warnings. You'll also be able to choose which gauges you'd like to appear on the screen, and you'll even be able to check the engine codes when a warning light comes on.

Product highlights:

  • allows you to install an aftermarket double-DIN radio in your F-150 (also requires the Maestro ADS-MRR module)
  • ADS-MRR module (sold separately) is required to complete installation and retain steering wheel controls
  • kit matches color, texture, and contours of dash
  • pocket included with HDMI, auxiliary, and USB inputs that connect to your new radio
  • retains factory amplifier and backup camera
  • retains SYNC features with any iDatalink-compatible car stereo
  • displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers
  • warranty: 1 year

What's in the box:

  • Radio housing
  • Vehicle harness
  • Backup camera harness
  • Maestro Gen 2 harness
  • Maestro Gen 1 harness
  • 3-Pin connector harness
  • Jumper harness
  • Multi-pin connector
  • Pocket
  • 2 Brackets
  • Rubber pad
  • 2 Screws
  • Quick Start Guide (En/Fr/Sp)
  • "Identify Your Maestro RR Version" note

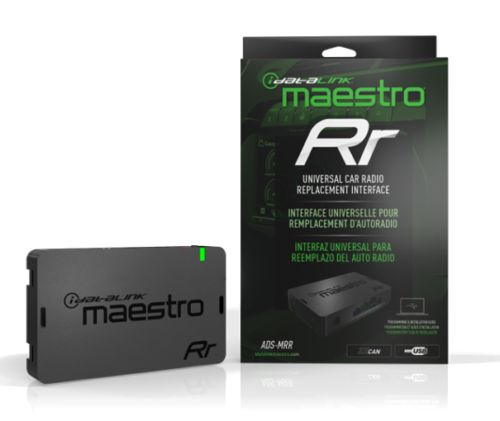

iDatalink's Maestro ADS-MRR module, along with the correct interface harness for your vehicle, allows you to install a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, and Volkswagen/Audi vehicles while retaining your factory steering wheel audio controls and the use of your factory amplifier, if present.

Here's how it works

First, you connect the Maestro to your computer using the included USB cable, visit idatalink web site and follow the instructions. Once the unit has been "flashed," it's ready to go. Next, you'll either solder or crimp the vehicle-specific Maestro harness (sold separately) to your new receiver's wiring, just like you would with any wiring harness or wiring adapter.

Important Note: You will also need an additional Maestro vehicle-specific wiring harness that connects your new receiver to the ADS-MRR module and your vehicle's wiring. We will automatically add this harness to your Cart at a discounted price when you purchase a new car stereo and this ADS-MRR module.

Retain steering wheel audio controls, too

The ADS-MRR module also allows you to use your factory steering wheel audio controls with your new receiver. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. Better yet, you can also assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled.

Keeping your factory features with an iDatalink-ready car stereo

If you're buying a compatible Kenwood, JVC, Pioneer, Sony, or Alpine receiver, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select vehicles.

Chrysler: You'll retain the use of the Uconnect® system (including voice command), along with your steering wheel audio controls and factory amp.

Fiat: You'll retain your vehicle's factory amp, USB port, and backup camera.

Ford: You'll keep your SYNC® system, including the factory Bluetooth, satellite radio (in select vehicles, see Details), steering wheel audio controls, and other great features.

GM: You'll retain the use of OnStar® system, along with your steering wheel audio controls, your factory amp, and safety warning chimes.

Honda: You'll retain your vehicle's steering wheel controls, Bluetooth, aux iInput, and factory amplifier.

Subaru: You'll retain your steering wheel controls, factory amp and sub, and Subaru backup camera.

Toyota: You'll retain your vehicle's A/V input, USB port, and backup camera.

Volkswagen: You'll retain your VW's Bluetooth, the factory digital amplifier and fader, plus VW's media device interface. Select Kenwood receivers allow you to display navigation info on your VW's multi-function screen.

See Details tab (above) for specific functions and installation notes.

Product highlights:

  • allows installation of a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, and Volkswagen/Audi vehicles
  • works with required vehicle-specific harness (sold separately) to retain factory steering wheel audio controls, retain the factory amp if present, and integrate all car stereo connections
  • retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, Pioneer, and JVC touchscreen receivers
  • displays engine performance data on touchscreen with select Kenwood, JVC, Pioneer, Sony, and Alpine multimedia receivers
  • dimensions: 4-1/8"W x 3/4"H x 2-7/8"D

What's in the box:

  • Radio replacement interface module
  • 23" Wiring harness (18-pin to bare-wires)
  • 23" Power/Ground harness (4-pin to bare-wires)
  • 18" Interface harness (4-pin to 4-pin)
  • 18" SWC harness (4-pin to 3.5mm/bare-wire)
  • 22" Audio harness (3-Pin to 3.5mm)
  • 3" Jumper harness (2-pin to 2-pin)
  • 7" USB cable (miniUSB to USB-A)
  • Quick Start Guide
