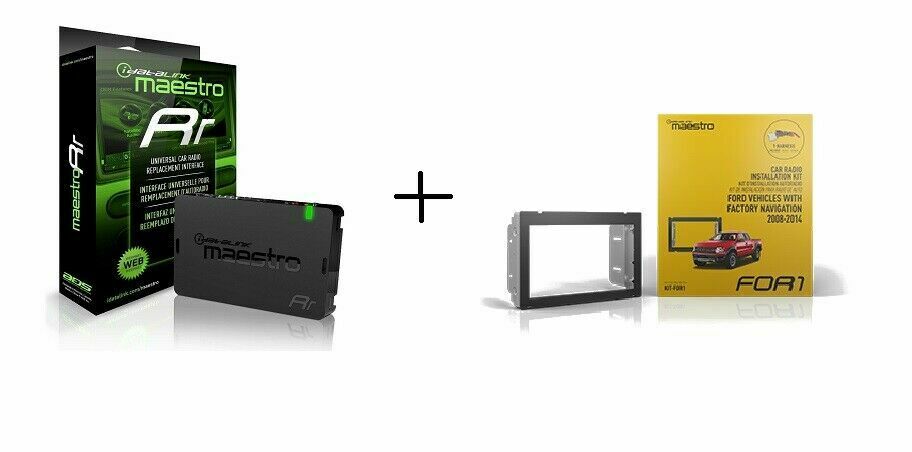

iDatalink KIT-FOR1 +ADS-MRR Dash kit for 2009-14 Ford vehicles with factory Nav
iDatalink KIT-FOR1 +ADS-MRR Dash kit for 2009-14 Ford vehicles with factory Nav
Couldn't load pickup availability
iDatalink FOR1 Dash and Wiring Kit
Install and connect an iDatalink-ready aftermarket radio in select 2009-14 Ford vehicles with factory navigation — double-DIN radios
Datalink FOR1
This iDatalink FOR1 dash and wiring kit allows you to install an aftermarket radio in select 2009-14 Ford vehicles with factory navigation. The package retains Ford's steering wheel controls, aux input, USB port, and Rear Seat Entertainment system, as well as the factory amp and sub. The kit includes a T-harness to connect the new radio to your vehicle's system, along with an antenna adapter. The bezel's matte black finish matches your factory dash.
Product highlights:
- allows installation of new iDatalink-ready receiver in select 2009-14 Ford vehicles
- requires the Maestro ADS-MRR or ADS-MRR2 module (sold separately)
- retains Ford steering wheel controls, aux input, USB port, Rear Seat Entertainment system, factory amp and sub
What's in the box:
- Radio trim-panel
- Blank panel
- 2 Brackets
- Vehicle/Interface harness
- OBDII harness
- Backup camera harness
- Antenna adapter
- 4 ISO-screws
- 8 Machine screws
- Quick Start Guide
iDatalink Maestro RR Interface Module
Connect a new stereo and retain the steering wheel audio controls and factory amps in select 2006-up vehicles
iDatalink's Maestro ADS-MRR module, along with the correct interface harness for your vehicle, allows you to install a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, and Volkswagen/Audi vehicles while retaining your factory steering wheel audio controls and the use of your factory amplifier, if present.
Here's how it works
First, you connect the Maestro to your computer using the included USB cable, visit www.idatalink.com/maestro, and follow the instructions. Once the unit has been "flashed," it's ready to go. Next, you'll either solder or crimp the vehicle-specific Maestro harness (sold separately) to your new receiver's wiring, just like you would with any Crutchfield wiring harness or wiring adapter.
Important Note: You will also need an additional Maestro vehicle-specific wiring harness that connects your new receiver to the ADS-MRR module and your vehicle's wiring. We will automatically add this harness to your Cart at a discounted price when you purchase a new car stereo and this ADS-MRR module.
Retain steering wheel audio controls, too
The ADS-MRR module also allows you to use your factory steering wheel audio controls with your new receiver. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. Better yet, you can also assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled.
Keeping your factory features with an iDatalink-ready car stereo
If you're buying a compatible Kenwood, JVC, Pioneer, Sony, or Alpine receiver, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select vehicles.
Chrysler: You'll retain the use of the Uconnect® system (including voice command), along with your steering wheel audio controls and factory amp.
Fiat: You'll retain your vehicle's factory amp, USB port, and backup camera.
Ford: You'll keep your SYNC® system, including the factory Bluetooth, satellite radio (in select vehicles, see Details), steering wheel audio controls, and other great features.
GM: You'll retain the use of OnStar® system, along with your steering wheel audio controls, your factory amp, and safety warning chimes.
Honda: You'll retain your vehicle's steering wheel controls, Bluetooth, aux iInput, and factory amplifier.
Subaru: You'll retain your steering wheel controls, factory amp and sub, and Subaru backup camera.
Toyota: You'll retain your vehicle's A/V input, USB port, and backup camera.
Volkswagen: You'll retain your VW's Bluetooth, the factory digital amplifier and fader, plus VW's media device interface. Select Kenwood receivers allow you to display navigation info on your VW's multi-function screen.
What's in the box:
- Radio replacement interface module
- 23" Wiring harness (18-pin to bare-wires)
- 23" Power/Ground harness (3-pin to bare-wires)
- 18" Interface harness (4-pin to 4-pin)
- 18" SWC harness (4-pin to 3.5mm/bare-wire)
- 22" Audio harness (3-Pin to 3.5mm)
- 3" Jumper harness (2-pin to 2-pin)
- 7" USB cable (microUSB to USB-A)
- Quick Start Guide
- Radio replacement interface module
- 23" Wiring harness (18-pin to bare-wires)
- 23" Power/Ground harness (3-pin to bare-wires)
- 18" Interface harness (4-pin to 4-pin)
- 18" SWC harness (4-pin to 3.5mm/bare-wire)
- 22" Audio harness (3-Pin to 3.5mm)
- 3" Jumper harness (2-pin to 2-pin)
- 7" USB cable (microUSB to USB-A)
- Quick Start Guide
