iDatalink HRN-RR-TO3 Connect a new iDatalink-ready car stereo and retain steering wheel controls and factory amp in select 2018-up Toyota vehicles

iDatalink HRN-RR-TO3

Connect a new iDatalink-ready car stereo and retain steering wheel controls and factory amp in select 2018-up Toyota vehicles

iDatalink working with Toyota

iDatalink's rTO3 wiring adapter works in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module (sold separately), allowing you to connect a new iDatalink-ready car stereo in select 2018-up Toyota-made vehicles. Once connected, you'll retain the use of your steering wheel audio controls and your factory amp in these vehicles. You'll also be able to keep your Toyota's vehicle settings personalization menu, auxiliary A/V input, and backup camera.

The package includes connectors that plug in between the Maestro module and your factory radio's wiring plugs. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness. You'll appreciate the additional features added by the adapter, including the ability to view performance gauges and vehicle information on the new radio's screen.

Installation Note: The rTO3 adapter must be used with the iDatalink Maestro MRR or ADS-MRR2 module to connect your new iDatalink-ready car stereo to your Toyota.

Product highlights:

allows installation of a new iDatalink-ready car stereo in select Toyota vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)

retains the use of your steering wheel audio controls and factory amp

retains vehicle settings personalization menu, auxiliary A/V input, and backup camera

displays select factory features and displays performance data on touchscreen with select Alpine, JVC, Kenwood, Sony, and Pioneer receivers

supplies parking brake, reverse, and speed sensor connections for touchscreen radios

warranty: 1 year

MFR # HRN-RR-TO3

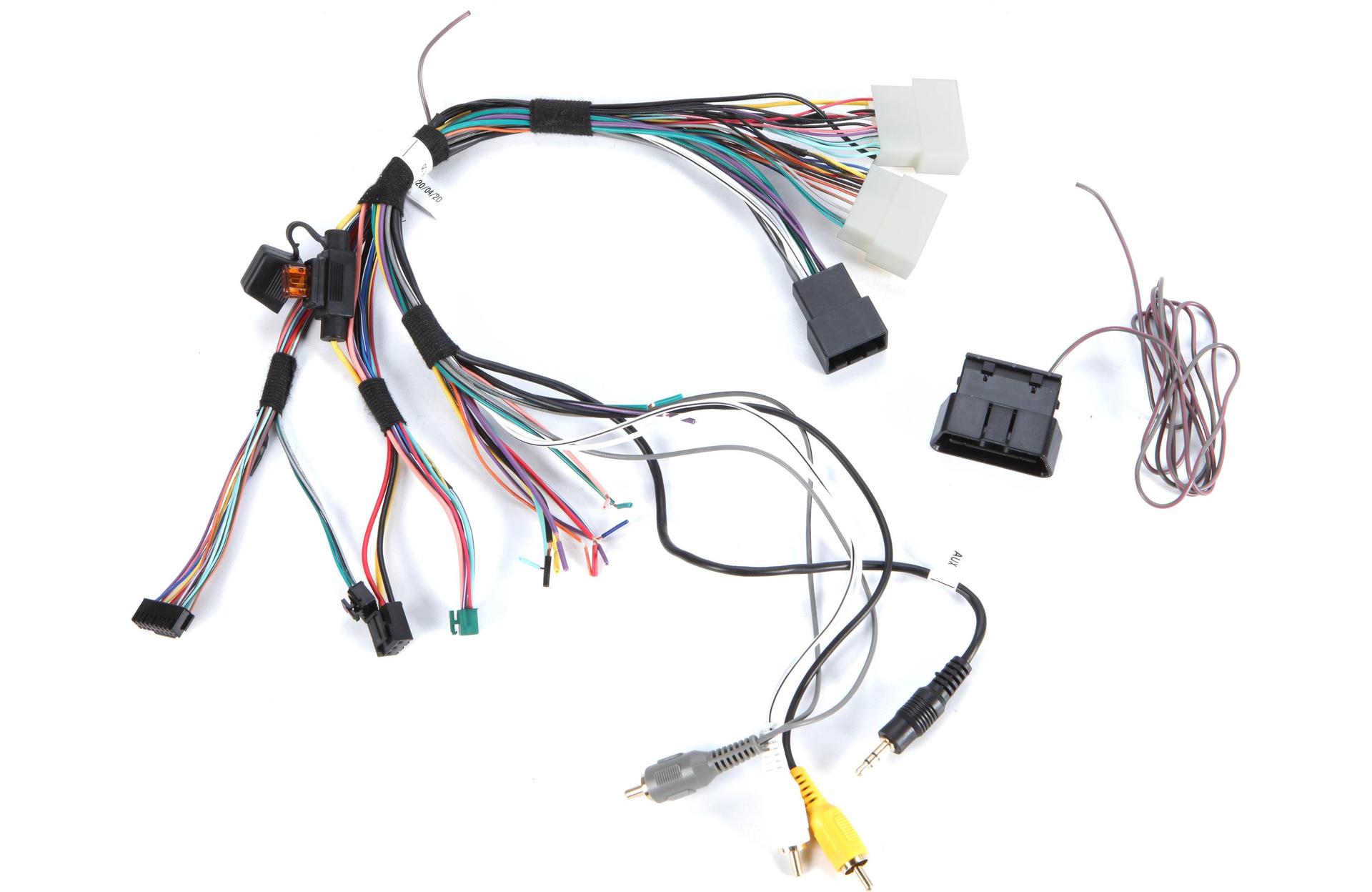

What's in the box:

15" Wiring harness

50" OBD harness
