idatalink T-Harness HRN-RR-TO1 for Maestro RR for Selected 2004-up Toyota Cars

iDatalink HRN-RR-TO1 Factory Integration Adapter

Connect a new car stereo and retain steering wheel controls and factory amp in select Toyota-made vehicles (ADS-MRR or ADS-MRR2 module also required)

iDatalink working with Toyota

iDatalink's HRN-RR-TO1 wiring adapter works in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module, allowing you to connect a new car stereo in select 2006-up Toyota-made vehicles,  Once connected, you'll retain the use of your steering wheel audio controls and your factory amp in these vehicles.

The package includes connectors that plug in between the Maestro module and your factory radio's wiring plugs. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

An iDatalink-ready car stereo takes full advantage of this harness

If you're buying a compatible iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus you'll retain your factory aux input, satellite radio tuner, USB media center, and backup camera. You'll also appreciate the additional features added by the adapter, including the ability to view performance gauges and vehicle information on the radio screen.

Installation Note: The HRN-RR-TO1 adapter must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your Toyota-made vehicle.

Product highlights:

allows installation of a new car stereo in select Toyota vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)

retains the use of your steering wheel audio controls and factory amp

retains select factory features and displays performance data on touchscreen with select Alpine, JVC, Kenwood, Sony, and Pioneer receivers

warranty: 1 year

MFR # HRN-RR-TO1

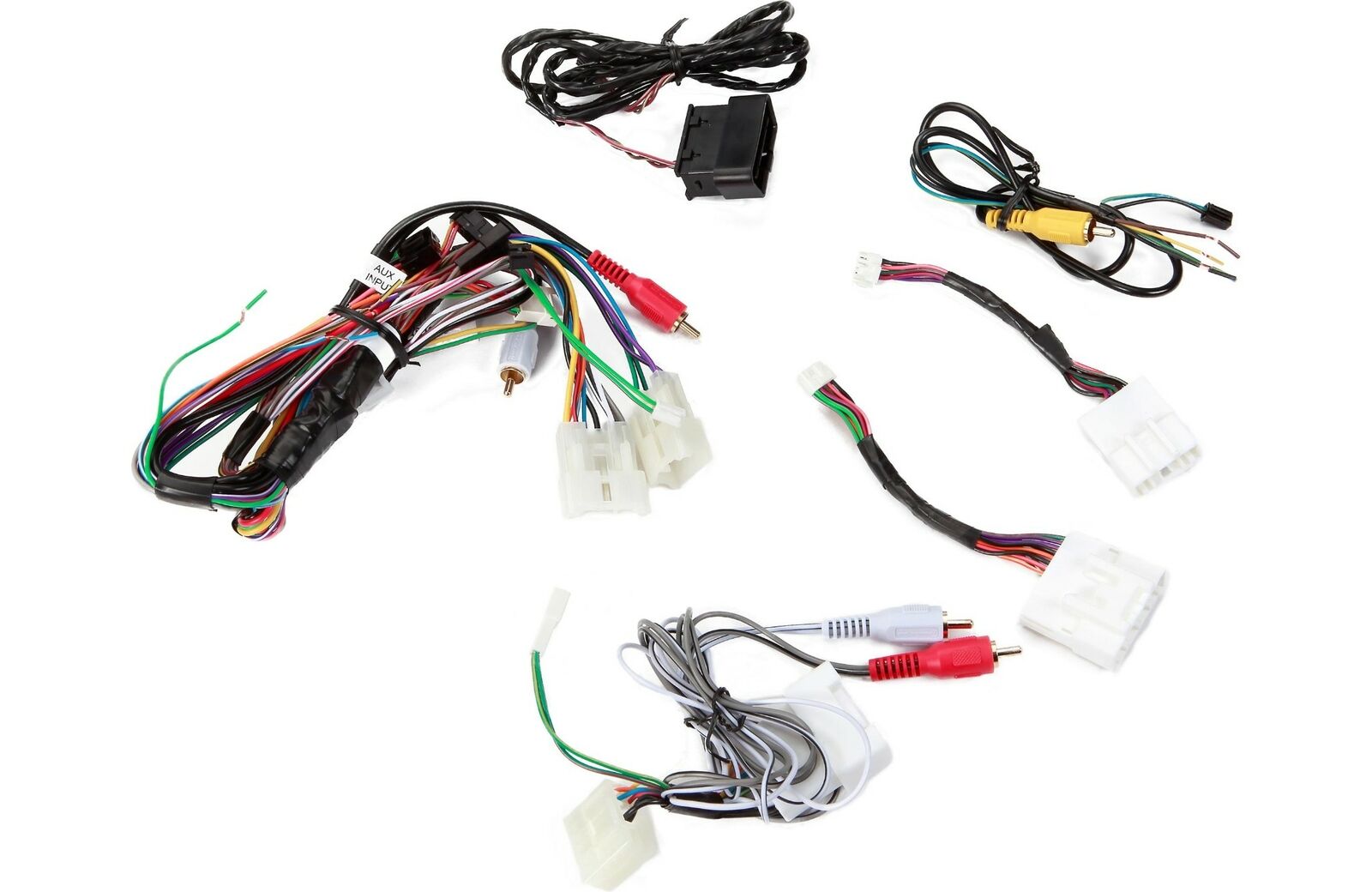

What's in the box:

Vehicle/radio harness

10-pin to 20-pin JBL adapter

3 Backup camera harnesses

20-pin SWC adapter

28-Pin SWC adapter

OBDII harness
