iDatalink HRN-RR-FI1 + ADS-MRR Wire harness to connect new iDatalink-compatible car stereo and retain steering wheel controls for select 2012-2015 Fiat 500

iDatalink HRN-RR-FI1 + ADS-MRR

Wire harness to connect new iDatalink-compatible car stereo and retain steering wheel controls for select 2012-2015 Fiat 500

Product highlights

• Retains steering wheel controls, and Chimes

• Compatible with amplified audio systems

• Selectable performance gauges

• iDatalink-ready radio

Product Features:

Compatible with select 2012-2015 Fiat 500

Designed to allow the installation of new iDatalink-compatible receiver in select Fiat vehicles

Retains the use of your steering wheel audio controls, factory amp, and warning chimes

Includes engine and vehicle performance data display

Also retains Bluetooth, AUX input, USB media player, and Retained Accessory Power (RAP) with an iDatalink-ready radio

Authorized Internet Dealer

1-year Manufacturer's Warranty

Compatible Vehicles

2012 Fiat 500

2013 Fiat 500

2014 Fiat 500

2015 Fiat 500

iDatalink Maestro RR Interface Module

Connect a new stereo and retain the steering wheel audio controls and factory amps in select 2006-up vehicles

iDatalink's Maestro ADS-MRR module, along with the correct interface harness for your vehicle, allows you to install a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles while retaining your factory steering wheel audio controls and the use of your factory amplifier, if present.

Here's how it works

First, you connect the Maestro to your computer using the included USB cable, visit www.idatalink.com/maestro, and follow the instructions. Once the unit has been "flashed," it's ready to go. Next, you'll either solder or crimp the vehicle-specific Maestro harness (sold separately) to your new receiver's wiring, just like you would with any Crutchfield wiring harness or wiring adapter.

Important Note: You will also need an additional Maestro vehicle-specific wiring harness that connects your new receiver to the ADS-MRR module and your vehicle's wiring. We will automatically add this harness to your Cart at a discounted price when you purchase a new car stereo and this ADS-MRR module.

Retain steering wheel audio controls, too

The ADS-MRR module also allows you to use your factory steering wheel audio controls with your new receiver. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. Better yet, you can also assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled.

Keeping your factory features with an iDatalink-ready car stereo

If you're buying a compatible Kenwood, JVC, Pioneer, Sony, or Alpine receiver, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select vehicles.

Chrysler: You'll retain the use of the Uconnect® system (including voice command), along with your steering wheel audio controls and factory amp.

Fiat: You'll retain your vehicle's factory amp, USB port, and backup camera.

Ford: You'll keep your SYNC® system, including the factory Bluetooth, satellite radio (in select vehicles, see Details), steering wheel audio controls, and other great features.

GM: You'll retain the use of OnStar® system, along with your steering wheel audio controls, your factory amp, and safety warning chimes.

Honda: You'll retain your vehicle's steering wheel controls, Bluetooth, aux input, and factory amplifier.

Subaru: You'll retain your steering wheel controls, factory amp and sub, and Subaru backup camera.

Toyota: You'll retain your vehicle's A/V input, USB port, and backup camera.

Product highlights:

allows installation of a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles

works with required vehicle-specific harness (sold separately) to retain factory steering wheel audio controls, retain the factory amp if present, and integrate all car stereo connections

retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, Pioneer, and JVC touchscreen receivers

displays engine performance data on touchscreen with select Kenwood, JVC, Pioneer, Sony, and Alpine multimedia receivers

dimensions: 4-1/8"W x 3/4"H x 2-7/8"D

What's in the box:

Radio replacement interface module

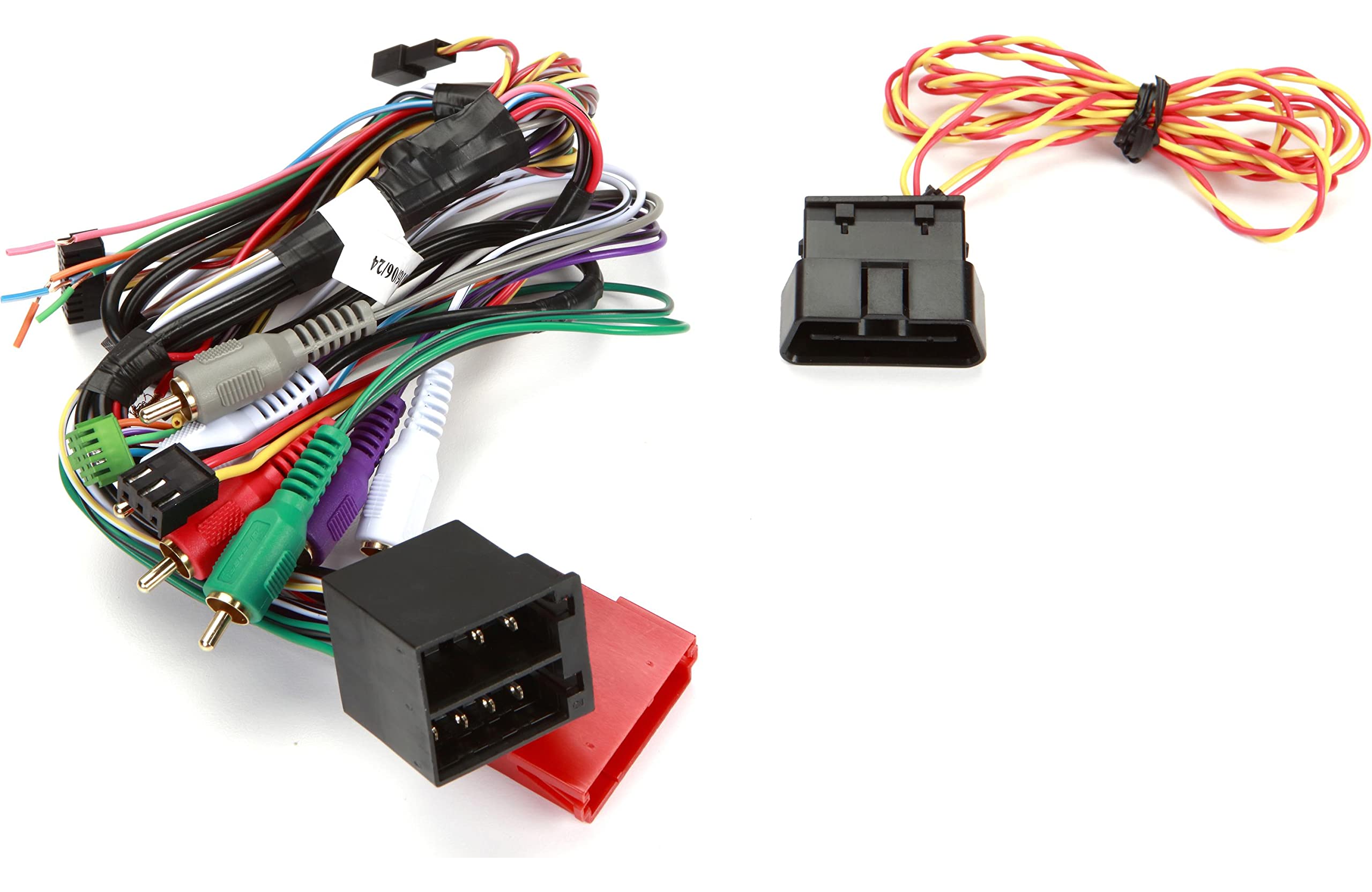

23" Wiring harness (18-pin to bare-wires)

23" Power/Ground harness (3-pin to bare-wires)

18" Interface harness (4-pin to 4-pin)

18" SWC harness (4-pin to 3.5mm/bare-wire)

22" Audio harness (3-Pin to 3.5mm)

3" Jumper harness (2-pin to 2-pin)

7" USB cable (microUSB to USB-A)

Quick Start Guide
