iDatalink HRN-HRR-HO2 Vehicle-specific Harness Connect a new iDatalink-ready car stereo and retain steering wheel controls and backup camera in select Honda vehicles

iDatalink HRN-HRR-HO2 Vehicle-specific Harness

Connect a new iDatalink-ready car stereo and retain steering wheel controls and backup camera in select Honda vehicles

iDatalink working with Honda

iDatalink's HRN-HRR-HO2 wiring adapter works in conjunction with their Maestro ADS-MRR or ADS-MRR2 module (required, sold separately), allowing you to connect a new iDatalink-ready car stereo in select Honda vehicles. With your iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select Honda vehicles, including the use of your steering wheel audio controls, factory amplifier, Bluetooth®, and backup camera, plus your lane watch camera and secondary vehicle display (if equipped). You'll also appreciate the additional features added by the adapter, including the ability to view performance gauges and other vehicle information on your radio's screen.

Maestro module required

The package includes connectors that plug in between the Maestro module and your factory radio's wiring plugs. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Plug directly into your new stereo

This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminates the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Installation note: The HRN-HRR-HO2 harness must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your Honda-made vehicle.

Product highlights:

allows installation of a new iDatalink-ready car stereo in select Honda vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)

retains the use of your steering wheel audio controls and factory Bluetooth, plus factory amp and secondary vehicle display (if equipped)

also retains your Honda backup camera and lane watch camera (if equipped)

displays engine data and vehicle info onscreen

works with iDatalink's "Head-unit Direct" harnesses, eliminating need for splicing

warranty: 1 year

MFR # HRN-HRR-HO2

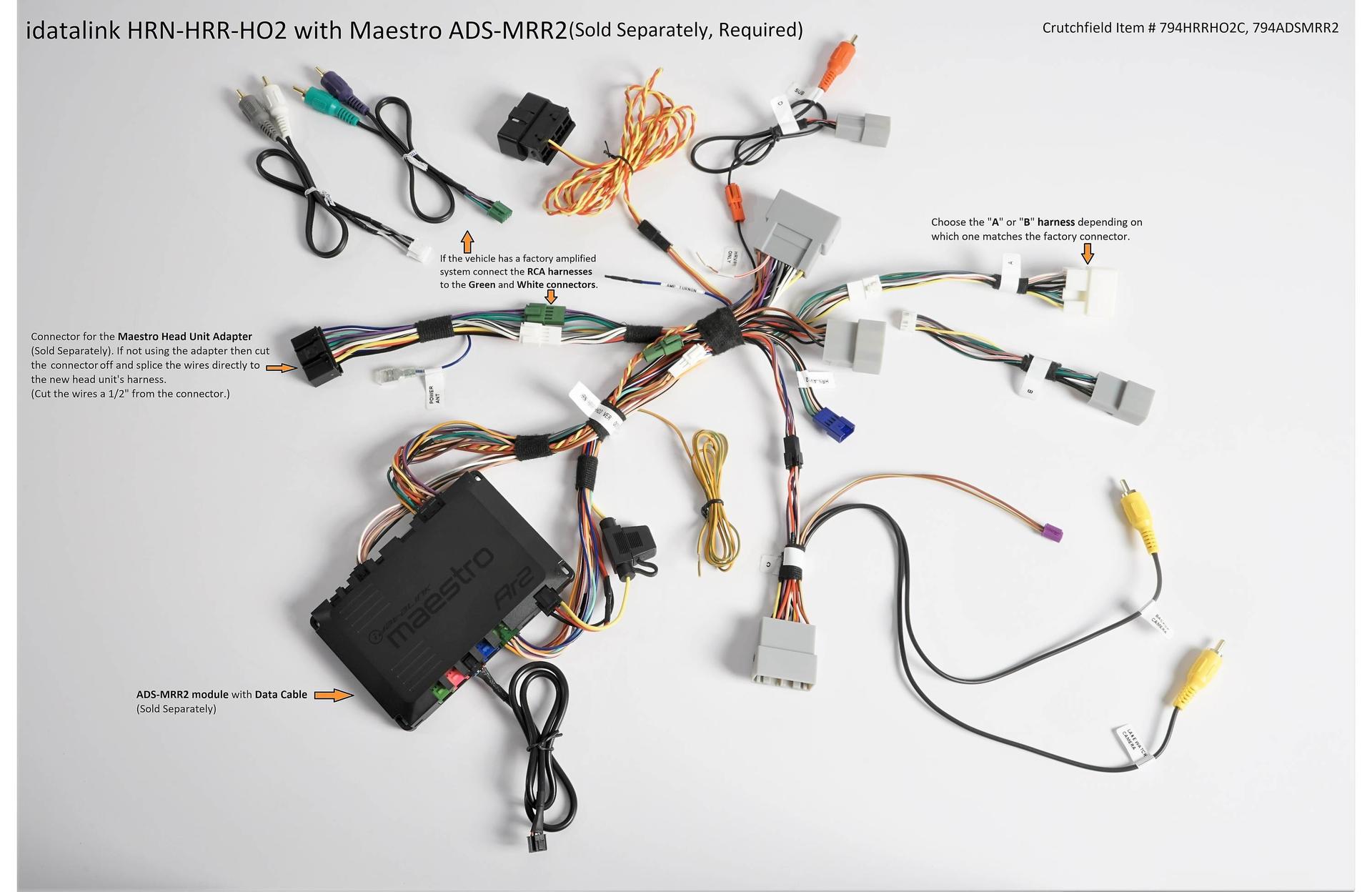

What's in the box:

Vehicle harness

Front preout harness

Rear preout harness

Sub harness

Backup camera harness

"A" harness

"B" harness

OBD II harness
