iDatalink HRN-HRR-CH2 Installation Harness for select 2004-2010 Chrysler

iDatalink HRN-HRR-CH2

Connect a new car stereo and retain steering wheel audio controls and factory amp in select 2004-10 Chrysler-made vehicles

iDatalink meets Chrysler

iDatalink's HRN-HRR-CH2 interface harness allows you to connect a new car stereo in select 2004-10 Chrysler, Dodge, and Jeep vehicles, working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module. Once the new car stereo is connected, you'll retain the use of your steering wheel audio controls and your factory amp in these vehicles. If you're installing an iDatalink-ready car stereo, you'll also retain your fader control.

The package includes connectors that plug in between the Maestro module, your Chrysler radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

An iDatalink-ready car stereo takes full advantage of this harness

If you're buying a compatible iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select Chrysler-built vehicles. You'll also appreciate the additional features added by the adapter, including the ability to view performance gauges and vehicle information on the screen with select iDatalink-ready receivers. the module also supplies the outputs (parking brake, reverse, speed sense) you'll need to install a navigation receiver.

Plug directly into your new stereo

This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Installation note: The HRN-HRR-CH2 harness must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your Chrysler-made vehicle.

Product highlights:

allows installation of a new receiver in select Chrysler vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)

retains the use of your steering wheel audio controls and factory amp in select vehicles

displays engine performance data on touchscreen with iDatalink-ready receivers

works with iDatalink's "Head-unit Direct" harnesses, eliminating need for splicing

warranty: 1 year Manufacture

MFR # HRN-HRR-CH2

What's in the box:

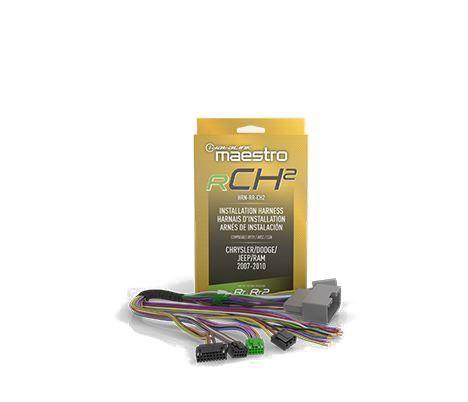

Vehicle/radio installation harness

OBDII harness
