iDatalink HRN-HRR-FO2 Plug And Play T-Harness For Select Ford Vehicles

iDatalink HRN-HRR-FO2 Plug And Play T-Harness For Select Ford Vehicles

Regular price $69.95 USD
Regular price Sale price $69.95 USD
Sale Sold out
Shipping calculated at checkout.
View full details

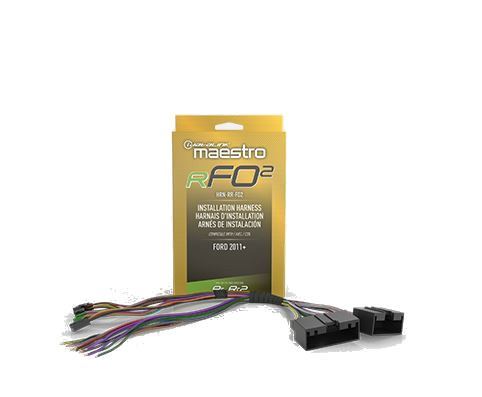

iDatalink HRN-HRR-FO2

Retain the factory steering wheel audio controls and factory amp on select 2009-up Ford vehicles (ADS-MRR or ADS-MRR2 module also required)

Retain your Ford's features

Working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module, iDatalink's HRN-HRR-FO2 wiring adapter allows you to connect a new car stereo in select 2009-up Ford vehicles with the 4.3" My Ford radio. Once connected, you'll retain the use of your steering wheel audio controls, plus gain the ability to program two functions for each button. You'll also keep your factory backup camera and amplifier (if equipped), plus the harness provides the outputs necessary to install a radio with navigation functions, including accessory power, illumination, parking brake, VSS, and foot brake outputs.

Extra functionality

With a compatible iDatalink-ready car stereo, you'll also be able to retain the use of most SYNC features, including the Media Player, hands-free calling, voice commands, and display of song information on the 4.3" screen. With these receivers, you'll also be able to set up gauges and other info that display on your screen, showing tire pressure, battery voltage, door status, engine codes, and visual parking assist.

Plug directly into your new stereo

This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Installation note: The HRN-HRR-FO2 harness must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your Ford vehicle.



  • allows installation of a new receiver in select Ford models (also requires the Maestro ADS-MRR or ADS-MRR2 module)
  • retains steering wheel controls, factory backup camera, and factory amp in select vehicles
  • retains most SYNC features with select Alpine, JVC, Kenwood, Pioneer, and Sony receivers
  • displays engine performance data on touchscreen with select Alpine, JVC, Kenwood, Pioneer, and Sony receivers
  • works with iDatalink's "Head-unit Direct" harnesses, eliminating need for splicing
