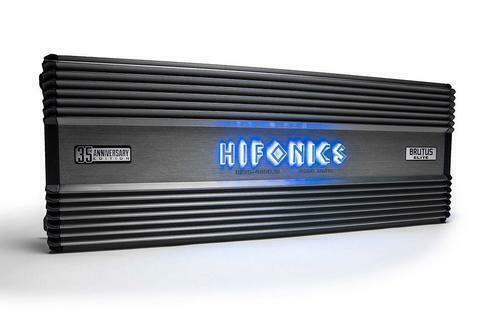

Hifonics 35th Anniversary 4000 watt BRUTUS ELITE Super D-Class mono subwoofer amplifier with unique ParaQ electronic crossover circuit and diagnostic bass remote included.
ABOUT THIS ITEM:
Low Noise Preamplifier Circuit : Low voltage signal from the source unit comes into the amplifier pre-amplifier circuit with minimal distortion.
RCA Inputs : Tiffany Style RCA Connectors: Audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection
Operation Mode : One Channel (Mono): Purpose built 1 channel amplifier for driving subwoofers and subwoofer systems.
Crossover Type : Accu-Cross: Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies.
Electronic Equalizer : ParaQ Bass Contouring: Parametric Bass EQ with adjustments - Boost (0-10dB), Width (Narrow-Wide (On Center), Center Frequency (30Hz - 100Hz).
Class / Topology : Super D-Class: Super D-Class designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs.
Output Device Technology : Ultra-Fi MOSFET: The Ultra-Fi MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.
Heat Sink : Aluminum : Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be coole
Power Supply : T3 Power Supply: Hifonics T3 (Twin Turbo Toroids) power supply keeps voltage constant through the Ultra-Fi output devices.
Output Connections : Nickel-Plated Brass: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
Connection Type : Illuminated, Molded and Angled: Secure connection for all Power, Ground and Speaker connections. Angled for ease of access during installation.
Full-Range RCA Outputs for Signal Pass Through : One pair of Tiffany style connectors for a full range, L & R output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables.
LED System Protection Circuitry Diagnostics : 4-Way System Protection Circuitry: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
Bass Remote Included : Diagnostic, Illuminated Bass Remote Included: Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. Smooth potentiometer and ringed illumination in a satin black mount create a custom look.
Strapping : Power Strapping allows the installer to Sync the input signal and output power to double rated output of a mono amplifier to drive a single or group of subwoofers. Driving subwoofers with this method doubles the available power to the overall bass system, while insuring each subwoofer receives the exact same power level. CONSULT PROFESSIONAL INSTALLER
Additional Features : Illuminated Logo: The Hifonics logo illuminates when the amplifier is powered, making a #PowerFromTheGods statement in the dark
Amp Max Power (watts) : 4000
Amp Power @ 1 Ohm (ch x watts) : 1 X 4000
Amp Power @ 2 Ohms (ch x watts) : 1 X 2000
Amp Power @ 4 Ohms (ch x watts) : 1 X 1000
Amp Crossover : Variable Electronic
Amp Variable High Pass Crossover 12dB per Octave : N/A
Amp Variable Low Pass Crossover 12dB per Octave : 30Hz-250Hz
Amp Tone Control / Parametric EQ : ParaQ Bass EQ
Amp Bass Boost : 0-10dB: Variable Center Frequency and Width with ParaQ
Amp Variable Voltage : 0.2-9V
Amp Signal to Noise : > 95dB
Amp Frequency Response : 10Hz-50KHz
Amp Speaker Level Audio Inputs : Yes
Pre-amp Audio Outputs : Yes
Amp Power Terminal 12v/GND : 0 GA
Amp Speaker Terminal Wire Gauge : 12 GA
Amp Fusing : External
Amp Total Channels : 1
Amp Class : Super D-Class
Compatible Vehicles : Universal
