Ford Lincoln Mercury Radio Replacement Interface w/ Navigation Outputs

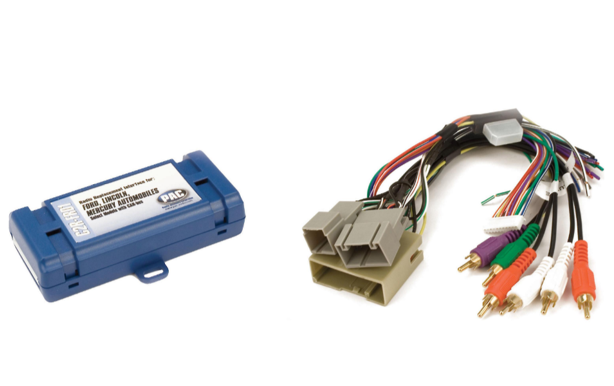

C2R-FRD1 Ford Lincoln Mercury Radio Replacement Interface w/ Navigation Outputs

Provides navigation trigger wires and timed accessory output for replacing the factory radio. Retains the factory installed amplified audio system and rear seat entertainment (if equipped). Use with a steering wheel interface module to retain function of all factory controls

• Data controlled:
  RAP accessory output wire
  Reverse trigger wire
  Illumination output wire
  Parking brake wire
  Vehicle speed sense wire
• Retains
  Factory 3.5mm jack if equipped
  Rear seat entertainment and dual zone audio
  Factory-installed amplified audio system
  Single wire output for steering wheel control module
• Compatibility:
  Does not retain SYNC. SYNC retention requires the MS-FRD1
  Does not retain steering wheel controls in 2011+ F-series trucks. These vehicles must use the RP4-FD11 for steering wheel control retention
• Vehicle Specific Notes:
  2008 F-250/350/450: Not compatible with model trim XL (fleet vehicles). These vehicles do not have the necessary CAN bus signals
  2006-2007 Ford Freestyle: Does not retain RSE
