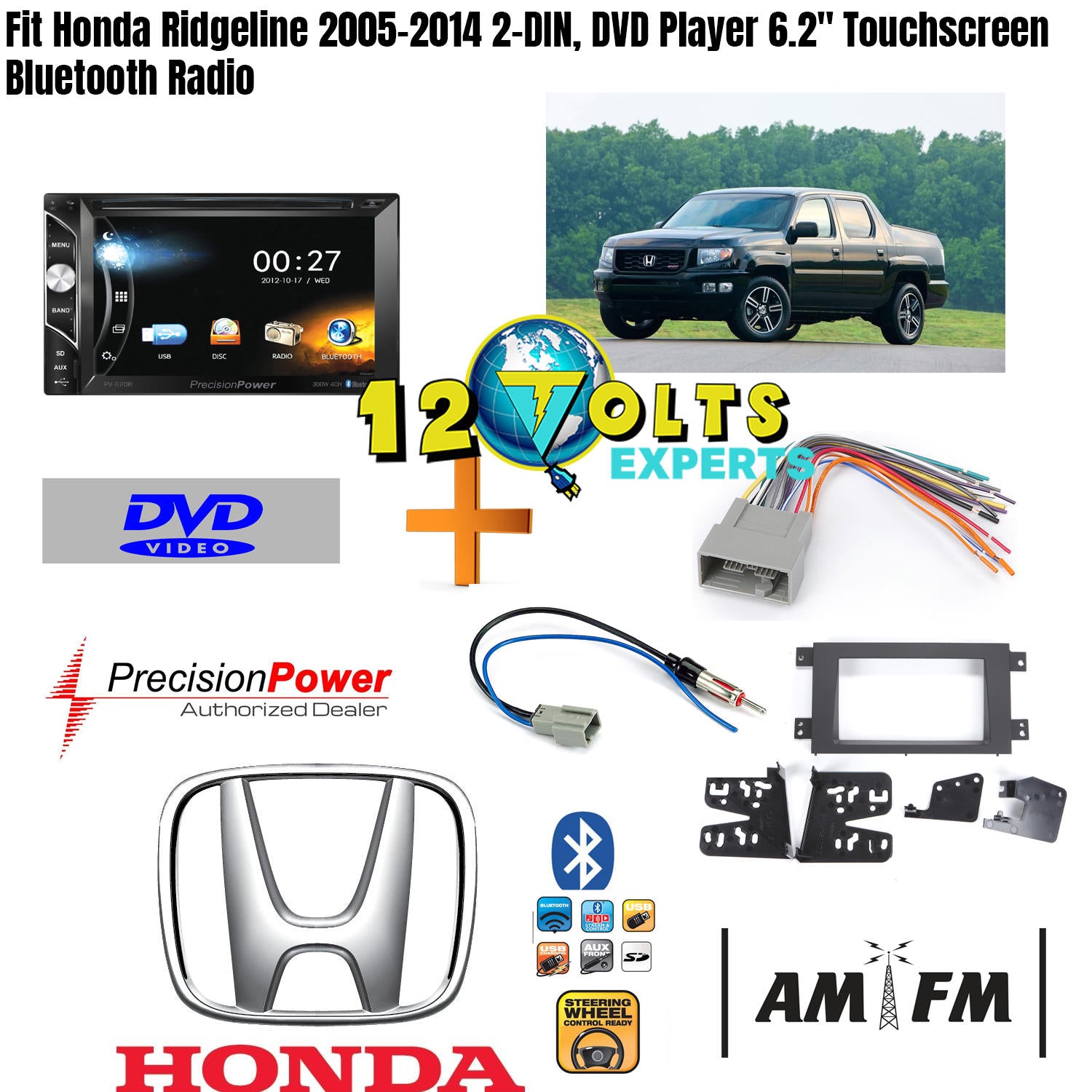

Fit Honda Ridgeline 2005-2014 2-DIN, DVD Player 6.2" Touchscreen Bluetooth Radio

Fit Honda Ridgeline 2005-2014 2-DIN, DVD Player 6.2" Touchscreen Bluetooth Radio

Precision Power PV-620B

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo Receiver w/ 6.2" Touchscreen, Dual Camera Input

General Features:

Precision Power PV-620B In-Dash Receiver

Power Output:

Peak: 75 watts x 4 channels

RMS: 17 watts x 4 channels

DVD Playback

6.2" LCD Touchscreen

AM/FM tuner

Remote control included

Playback and Audio Features:

CD/CD-R/RW, DVD/DVD-R/RW, MP3/MP4 Playback

MP3/WMA/AAC/MP4/FLAC Playback via USB*** verify, delete what's not needed

Equalizer with selectable tone curves

3.5mm Front A/V Auxiliary Input

Front USB Input

SD Card reader for (audio and video) playback

2 Sets of preamp outputs (front, rear and subwoofer)

Bluetooth Features:

Built-in Bluetooth technology for hands-free talking and audio streaming

Bluetooth version 3.0

Bluetooth Profiles Supported:

HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone

A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo

Works with most Bluetooth enabled cell phones

Includes a built-in microphone for clear, convenient, distortion-free talking

Expandability Options:

Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately

Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.

Front Camera Input

Metra 40-HD10 Antenna Adapter

Connect a new radio to the factory antenna in select 2005-up Honda and Mazda vehicles — Motorola male to stock antenna female

About the Metra 40-HD10 Antenna Adapter

This antenna adapter lets you connect an aftermarket receiver to the factory antenna cable in your Honda or Mazda. The adapter has a standard male Motorola plug on one end and a Honda/Mazda antenna jack on the other. Installation note: A blue wire is attached to the antenna adapter. When installing the adapter, the blue wire should be connected to the antenna turn-on lead of your new car stereo. Please check the stereo's manual for more information.

What's in the box:

Antenna adapter cable (has a female Honda snap-lock antenna jack on one end and a male Motorola plug and a blue bare wire on the other)

MFR #40-HD10

Metra 70-1729 Receiver Wiring Harness

Connect a new car stereo in select 2008-up Honda vehicles

About the Metra 70-1729 Receiver Wiring Harness

Metra 70-1729 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

First, attach the color-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness saves installation time since you won't have to cut factory wires individually, and this also enables you to re-install the factory radio if needed.

Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.

Metra 95-7870G Dash Kit

Fits select 2005-up Honda Ridgeline models — double-DIN radios (Gray)

Metra 95-7870T

The Metra 95-7870T kit allows you to install a double-DIN (4" tall) car stereo in your vehicle's dash opening.

What's in the box:

Radio housing

4 Brackets

2 Bolts

2 Nuts

Installation Instructions

MFR #95-7870G
