Diamond Audio DMD600.4D DMD 4 Channel Amplifier + 4 Gauge amp kit + Capacitor

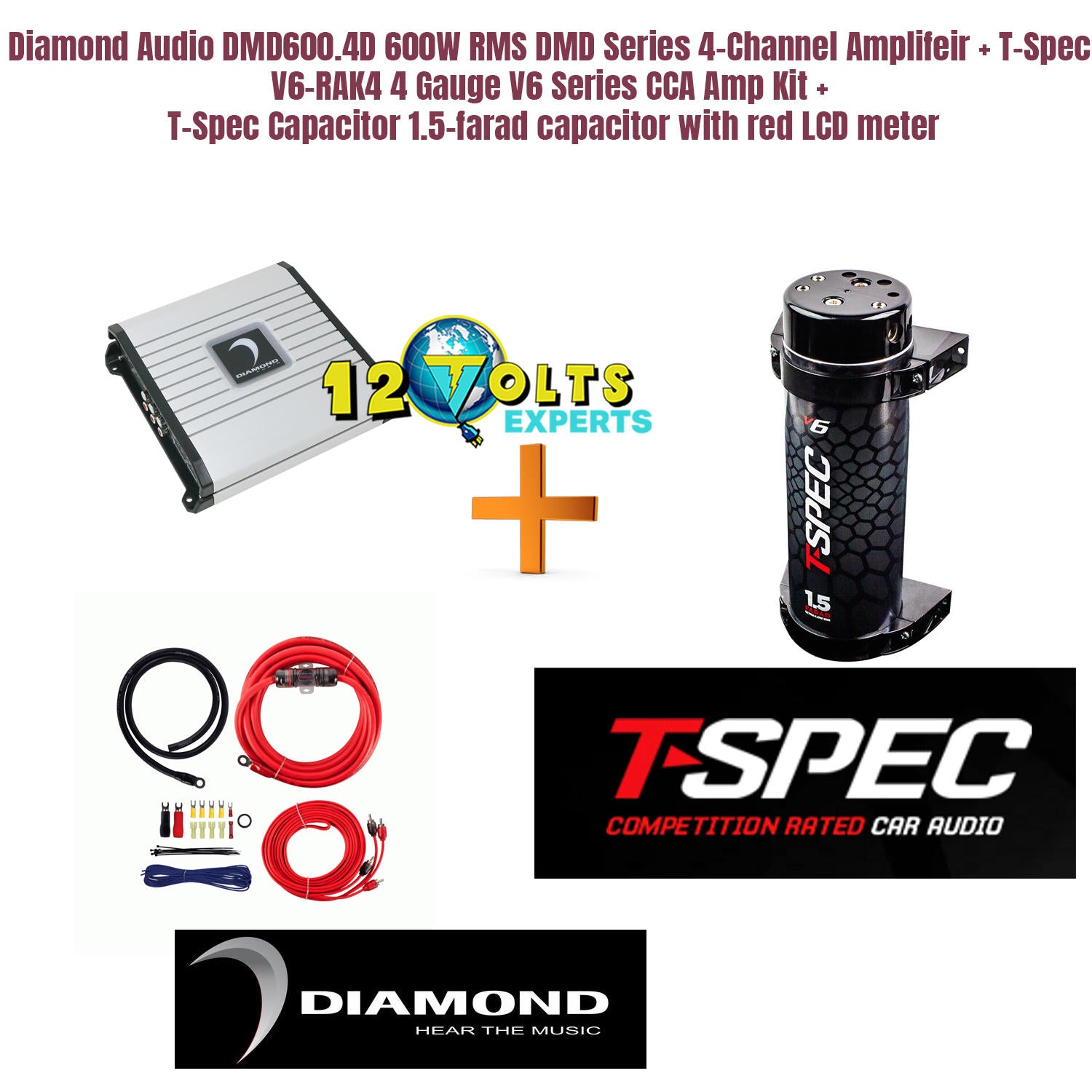

Diamond Audio DMD600.4D 600W RMS DMD Series 4-Channel Amplifeir + T-Spec V6-RAK4 4 Gauge V6 Series CCA Amp Kit + T-Spec Capacitor 1.5-farad capacitor with red LCD meter











Product Details:

Class D 2 ohms Stable 4-Channel Amplifier

RMS Power Rating:

4 ohms: 150 watts x 4 channel

2 ohms: 100 watts x 4 channel

Bridged, 4 ohms: 320 watts x 2 channel

Total power output: 600 watts

Switchable 2CH & 4CH Input Configuration

Hidden Led Lights under Logo Badge indicate working status:Power/Protection

Gain Input Sensitivity Clipping Indicators

Full Range IR Chipset Digital Circuit Design

DirectFET power Mosfet Output Stage

Compact Size to easy Installation

SMD Technology on 4 Layers FR4 PC Board

Balanced Differential Inputs for Noise-Free Operation Regardless of the Source

Audio Precision Quality Control Verification

Input sensitivity:

Low level: 0.2 - 10 volts

Frequency Response: 20 - 20000 Hz

Total Harmonic Distortion (THD): 0.05%

Signal to Noise Ratio: 90 dB

Variable low-pass filter: 35 - 350 Hz, 24 dB/octave

Variable Bass Boost: bass boost at 50 Hz

Fuse Rating: 120

8 AWG gauge power and ground wiring is recommended for installation.

Dimensions: 6.85" W x 7.6" L x 1.9" H

Authorized Internet Dealer

1-year Manufacturer's Warranty



T-Spec V6-RAK4

4 Gauge V6 Series CCA Amp Kit w/2-Channel RCA Cables for Systems up to 1000 Watts



Dual Power

T-Specs's new V6 Series amp kits are engineered to highest standards. Designed with full CCA (Copper-clad aluminum) construction with a high strand count for maximum flexibility, power transfer and ground. As with all V6 Series the RCAs, speaker, power and ground wire are BC-5W2 marine compliant.



Serious Protection

Fusing an aftermarket car stereo system provides protection for your car and your car stereo. No fuse system provides better protection than T-Spec. The new T-Spec compact brass designs are constructed from solid brass and are smaller than anything else in the industry. This combination of top quality materials and thoughtful design provides an incredibly reliable and simple to install product that will last for years.







General Features:



4 Gauge V6 Series CCA Amp Kit w/2-Channel RCA Cables for Systems up to 1000 Watts

CCA (Copper-clad aluminum) construction

High strand count for maximum flexibility

BC-5W2 marine compliant RCA, power and ground wire

Real brass fusing and distribution

Packaged in resealable retail polybags

Also found as: TSpec V64RAK

Authorized Internet Dealer

1-year Manufacturer's Warranty

What's in the Box:

17ft. V6 4 Gauge CCA multi-strand power wire

3ft. V6 4 Gauge CCA multi-strand ground wire

17ft. 18 Gauge CCA blue remote turn-on wire

17ft. V6 noise rejecting woven coaxial RCA cable with precision molded ends and split tip

Proprietary V8 MINI ANL fuse holder with 60A fuse

Nickel Plated 4 Gauge seamed crimp ring terminal with 8.5mm hole and red boot connected at battery end

Nickel Plated 4 Gauge seamed crimp ring terminal with 8.5mm hole and black boot connected at ground

4 Gauge spade terminals, with red and black boots for amp connection

Miscellaneous connectors, terminals and wire tie







T-Spec Capacitor

1.5-farad capacitor with red LCD meter







Smooths out the bass

T-Spec's 1.5-farad capacitor will help your vehicle's charging system keep up with your high-powered sound setup. When the power of the bass threatens to overwhelm the electrical system, this cap quickly provides a jolt of stored power to keep the beat pounding and your headlights from dimming. And it recharges quickly, so it's always ready for the next hit.



Displays the voltage

A bright, digital meter displays your system's voltage, so you can monitor how things are going and avoid overtaxing your vehicle's charging system. We recommend this 1.5-farad cap for any sub amplifier delivering up to 1,500 watts RMS. Warranty: 1 year.





What's in the box:





1.5 Farad capacitor

2 Polycarbonate mounting brackets (installed)

5mm Allen wrench

4 Self-tapping screws (5/8" length)

8 Flat washers

Resistor bulb

User's Manual

MFR #V6-1-5DDC
