Brandmotion’s Transparent Trailer Rear Vision System will change your towing experience. This versatile new safety and convenience aid replaces your current rearview mirror with a live streaming full HD video screen. It improves on your traditional mirror by providing a clear, crisp view of exactly what you need to see with no obstructions, in your cabin or with your trailer. It’s unbeatable view assists drivers when backing up trailers up to 65’ long. A single camera is installed on the end of the trailer, with a harness running the length to the trailer hitch, using quick disconnect weatherproof connectors that integrate into the body. When fully installed the image from the rear camera cleanly displays on the newly installed edge-to-edge mirror in the cab with virtually no latency thanks to high quality cabling. Industrial grade CMOS camera specifications: Dimensions 2.5″ wide x 2.2″ deep x 2.3″ tall (bracket adds 1.5″ in height), 1920 x 1080 Resolution 1080p, 0.1 Lux with infrared for better illumination and a sharper image, Parking gridlines available, NTSC Format, 9-16-Volt operating range, Color image with automatic white balance, Electric auto iris, 170-degree horizontal field of view, 130-degree vertical field of view, Waterproof and shockproof case, IP 68 equivalent. Mirror Specifications: Large, Vibrant 9.66″ mirror with edge-to-edge full color display embedded, 1980 x 320 Resolution 1080p, 2 Inputs (4-Pin Aviation), 16:9 Aspect ratio, Format: NTSC and PAL, 12-24V operating range, Bottom button on mirror selects between two inputs and standard mirror functionality, Designed for use on a standard D-Tab Wedge mirror mount. Some vehicles may require an adaptor. Please verify product fits in desired location before final installation. Please see our Rear Vision Application Guide for compatibility questions. Please note: Mirror is not OnStar compatible and is a non-dimming display mirror.
Versatile new rear vision system replaces your current rearview mirror with a live streaming full HD video screen; Improves on your traditional mirror by providing an unobstructed view of what is behind your trailer
Mirror provides two inputs and seamless functionality to switch between inputs and a traditional rearview mirror; Edge-to-edge display offers a sleek and modern look to any vehicle
Ultra high quality truck-to-trailer quick disconnect cabling; Includes 10-meter vehicle side harness and 20-meter trailer side harness
Mirror features a large, vibrant 9.66″ full color edge-to-edge display, 1980 x 320 Resolution 1080p and 16:9 aspect ratio; Designed for use on a standard D-Tab wedge mirror mount
Industrial grade CMOS camera features 1920 x 1080 Resolution 1080p, 0.1 Lux with infrared for better illumination and a sharper image; Optional parking gridlines are available

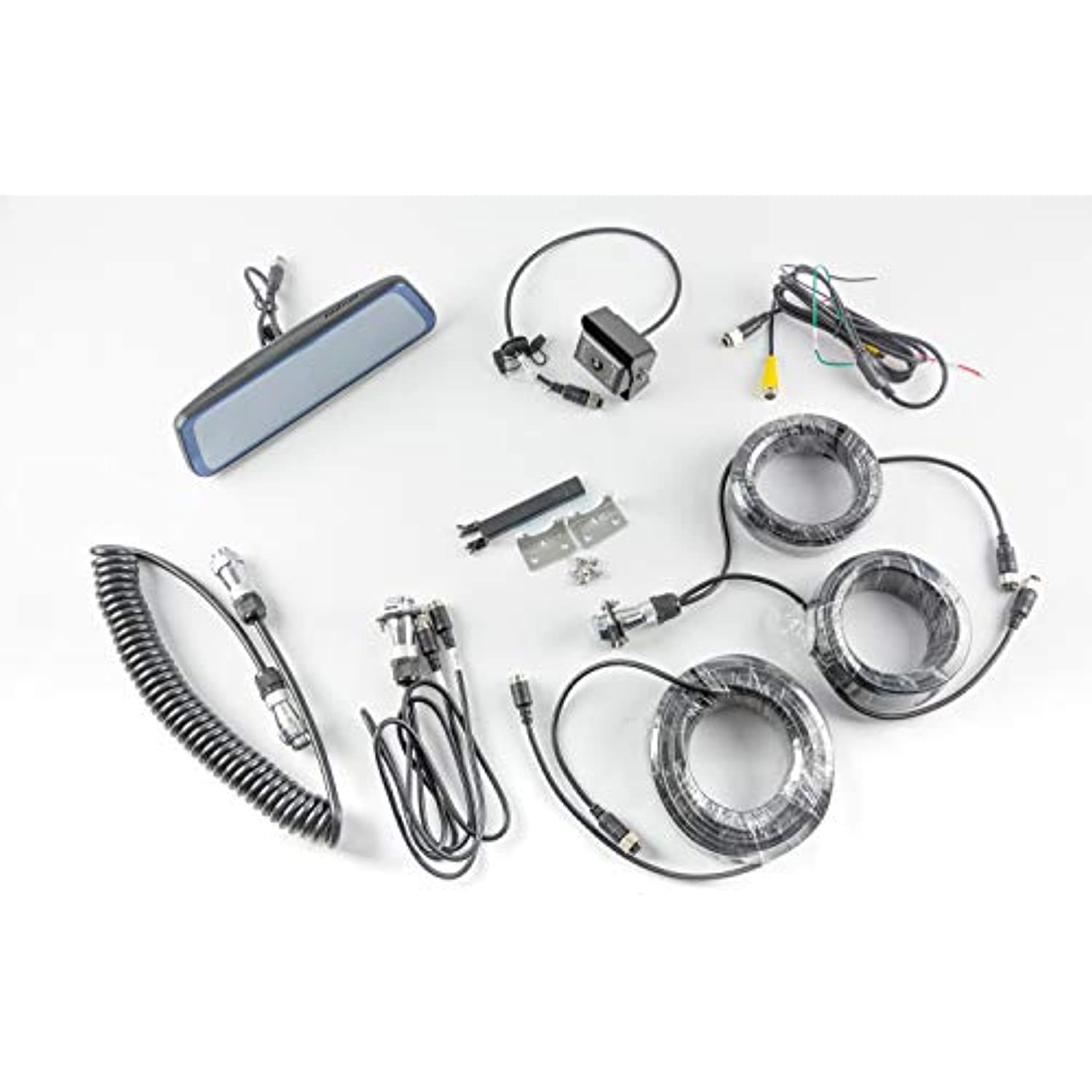

Included components: camera, mirror, cables, quick disconnect, wiring, hardware
Brandmotion TRNS-2110 Transparent Trailer Rear Vision System with Camera and Ultra Wide Display Mirror, Black
