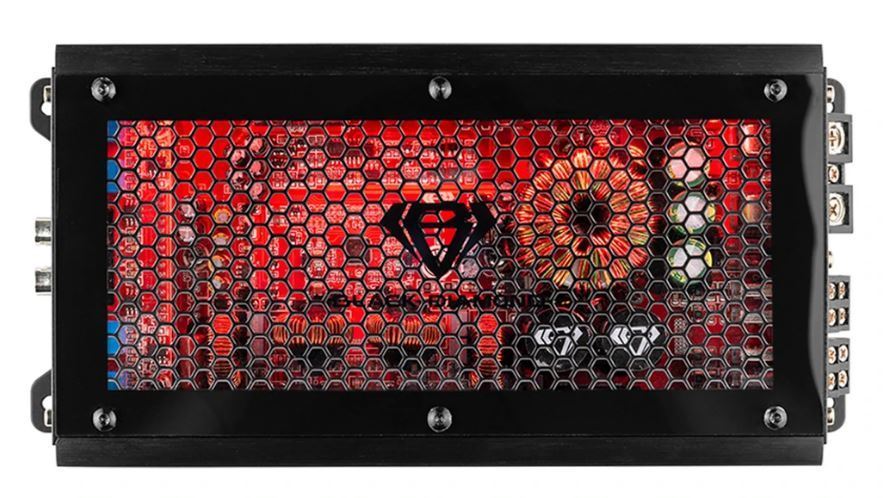

Black Diamond DIA-K4 Amplifier 4 Channel Full Range Class D 2000 Watts

Black Diamond DIA-K4 Amplifier 4 Channel Full Range Class D 2000 Watts

Regular price $184.99 USD
Regular price Sale price $184.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Capable of 2000 Watts Max Power, You'll have all the power you need while utilizing state-of-the-art technology that requires less energy. High-End Mini Digital Circuit Design Latest Low-Heat. Circuit with SMC Technology, Acrylic Window with Red LED Lighting, Adjustable Gain, Low-Pass, Bass Boost and Subsonic Filter. If you are looking for an amplifier that can handle the full frequency range then look no further! Wire the most powerful midranges tweeters drivers or coaxial to this full range series.

POWER SPECIFICATIONS

Total Watts (Peak): 2000W
RMS Power 4 ohm: 150W x 4
RMS Power 2 ohm: 250W x 4
RMS Power 4 ohm Bridged: 460W x 2

AUDIO SPECIFICATIONS

Frequency Response: 20Hz-45Khz
Signal to Noise Ratio: >90dB
Total Harmonic Distortion (THO): 0.01%
Low Level input Range: 0.25-6V
Selectable X-Over: LPF/FlAT/HPF
X-Over Filter Range: 50-250Hz

FEATURES

Amplifier Class: Digital (D)
Amplifier Type: 4CH Full Range
Led Indicator: Power/Protection
Power Input Terminal Size: 4ga
Fuse Size: 2x40A
Thermal Protection: Yes
Over-Load Protection: Yes
DC Outlet Protection: Yes
Short Circuit Output: Yes
Voltage Input Protection: Yes

MEASUREMENTS:

Overall Length: 9.76" (248mm)
Overall Width: 4.72" (120mm)
Overall Height: 1.96" (50mm)
Heatsink Length: 8.6" (220mm)
Gross Single Unit Weight: 3.37lbs

FEATURES
