AudioControl DM-810 8 by 10 Channel Matrix Digital Signal Processor

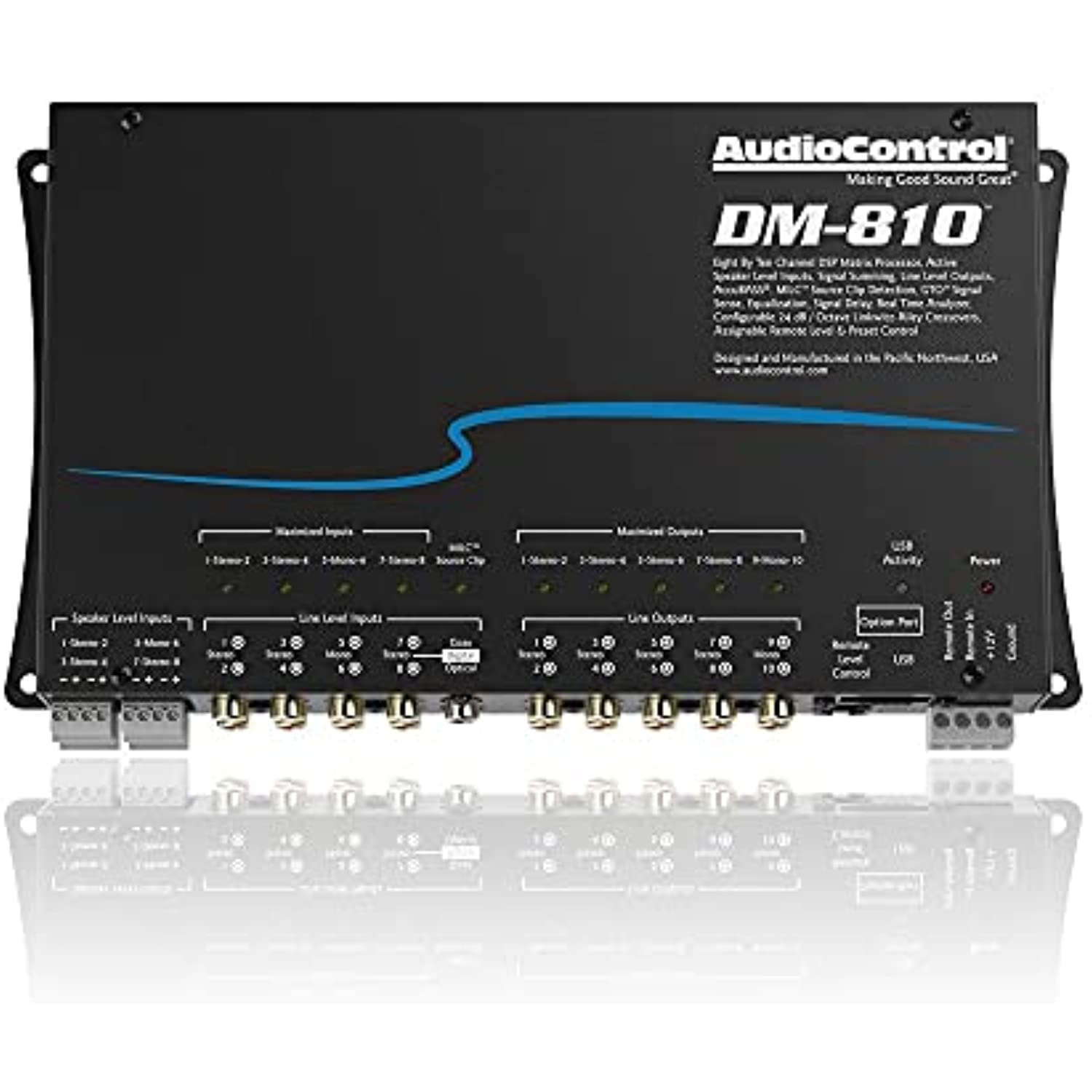

AudioControl DM-810

Digital signal processor — 8 inputs, 10 outputs

Signal processing makes it sound exactly the way you want

Smart-User DSP software

Smart-User DSP tuning software on a laptop

AudioControl designed their DM-810 digital signal processor to integrate into just about any car stereo system, to correct factory sound processing, and to deliver customized, high-fidelity audio to your aftermarket amps, speakers, and subs. You make adjustments and save settings via your laptop (PC or Mac).

Awesome audio adjustment

The Smart-User DSP software package includes Linkwitz-Riley crossovers, 30-band graphic equalizers, parametric filters, time delay/alignment for inputs and outputs, phase correction, AccuBass™ bass correction, and real-time analyzers (RTA) for the inputs and outputs so you can visually confirm the improvements in the sound.

The matrix is your friend

The DM-810 is "matrix-able," giving you the ability to combine and route any input to any output. So, if your car's factory system has separate pre-filtered, time-aligned, or amplified signals going to factory subs, woofers, mids, and tweeters, for instance, the DM-810 can combine them into one smooth, unified signal for you to balance, align, and tune for your better-sounding aftermarket speakers.

Convenient features

Onboard LEDs indicate optimized signal flow for inputs and outputs, plus give you a warning when a source is too loud and causing distorting. An optional ACR-3 wired remote controller lets you select sources, control levels, and recall up to four preset tunings from your front seat. An optional Bluetooth® adapter lets you stream music and control the digital processing wirelessly from your compatible portable device.

Product highlights:

digital signal processor

8 input channels, 10 outputs

all controls and adjustments made with AudioControl Smart-User DSP app on your laptop (PC or Mac) via USB connection

USB cable included

control via Android and iOS devices requires an AudioControl AC-BT24 Bluetooth adapter

adjustable Linkwitz-Riley crossovers (20-20K Hz, 12 or 24 dB/octave)

30-band graphic EQ, parametric filters, phase correction

AccuBASS circuitry for improved bass response

time delay/alignment for inputs and outputs

RTA (real-time analyzers) for inputs and outputs

Other Features:

optional wired remote (#161ACR3) controls level, selects sources, and recalls up to 4 presets

MILC™ (Maximum Input Level Control) LED optimization and clip indicators

GTO™ signal-sensing turn-on

8 speaker-level inputs (summable)

8 preamp inputs and 10 preamp outputs

coax and optical digital inputs

recommended fuse rating: 2 amps

dimensions: 10-1/2"W x 1-5/8"H x 6-1/4"D

warranty: 5 years

MFR # 841-080-8

What's in the box:

Processor

119" USB cord (Type-A on one end / micro type-B on other end)

Owner's manual
